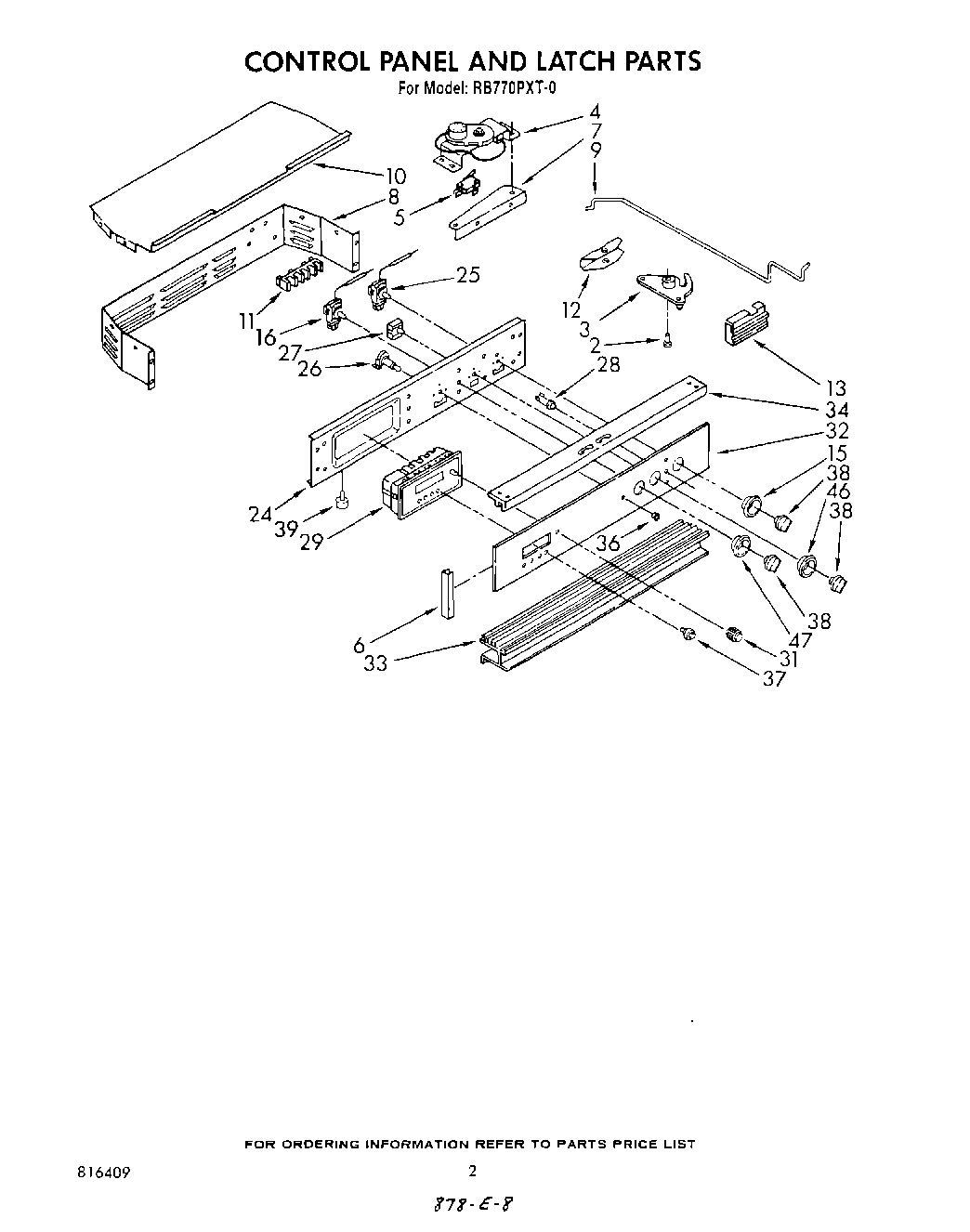

RB770PXT0 02 – CONTROL PANEL AND LATCH

Written by

Products

Position	Product
2	Pin, Hinge (2)
3	Latch, Door
4	Motor, Latch Assembly
5	Switch, Latch (2)
6	Trim, Control Panel
7	Plate, Motor Mounting
8	Housing, Control
9	Rod, Latch Support
10	Cover, Housing
11	WP8203546 Whirlpool Terminal Block
11	Screw
11	Nut, Hex 10 x 32
12	Housing, Latch
13	Cover, Latch
15	Escutcheon, Thermostat Upper Oven
16	Thermostat, Oven (Lower)
24	Bracket, Control
25	Thermostat, Oven
26	Switch, Oven Light
27	Switch, Oven Selector
28	Indicator Light (Clean)
28	Indicator Light (2) (Lock, Oven)
29	Timer (Digital)
31	Knob, Timer
32	Panel, Glass (Control)
33	Trim, Vent
34	Trim, Top
36	Bezel, Switch (Black)
37	Button, Clock (4)
38	WP3150371 Whirlpool Control Knob
39	Bumper, Cooktop (4)
46	WP311068 Whirlpool Dial Knob Black
47	Escutcheon, Thermostat – Lower Oven
