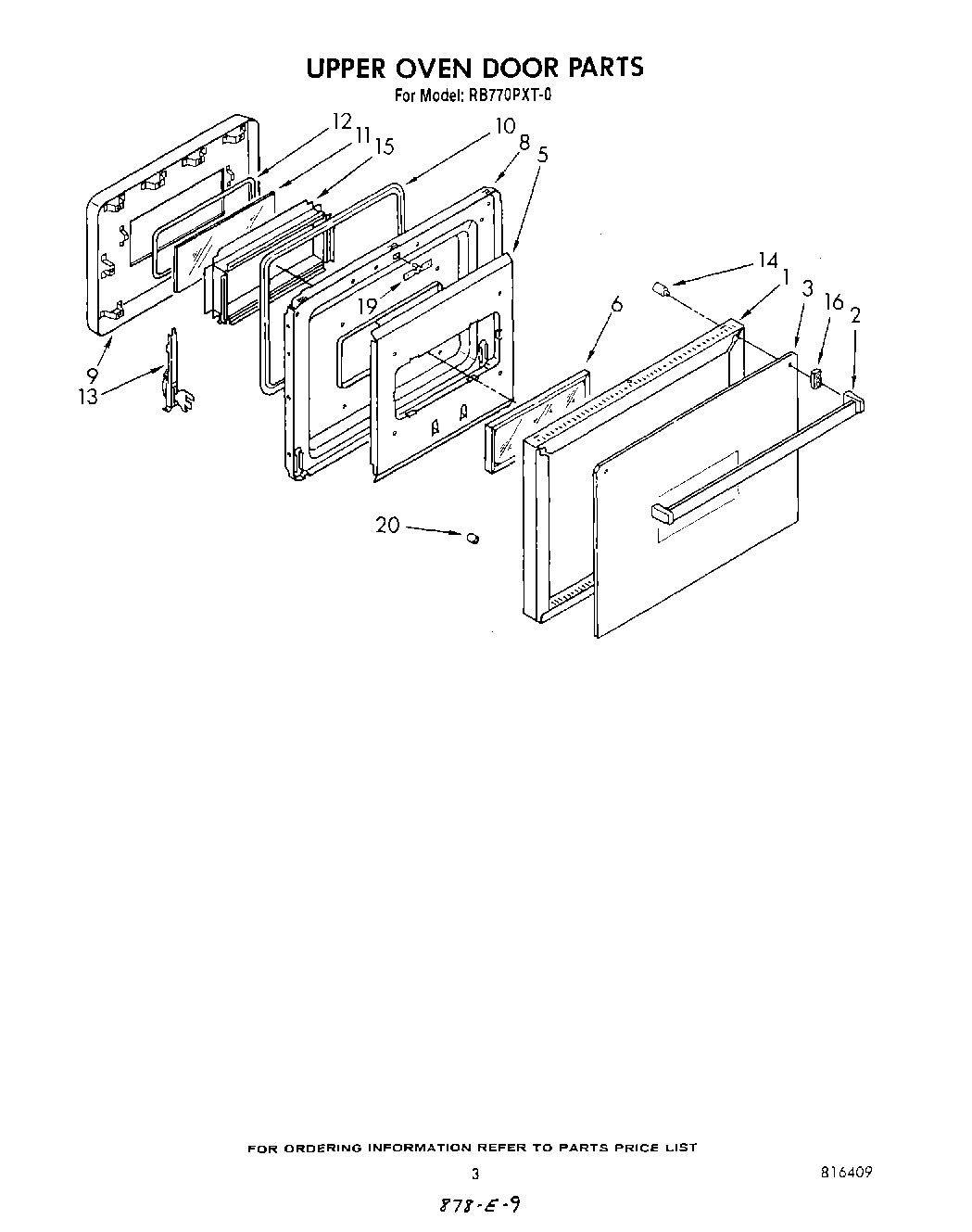

RB770PXT0 03 – UPPER OVEN DOOR

RB770PXT0 03 – UPPER OVEN DOOR

Written by

in

RB770PXT0 03 – UPPER OVEN DOOR

Products

PositionProduct
1Frame, Oven Door
2Handle, Oven Door
3Glass, Outer
5Panel, Airwash
6Glass, Inner
8Liner, Oven Door
9Baffle, Weldment
10Seal, Oven Door
11Window Assembly
12Seal, Window
13Hinge Assy. (2)
14Spacer, Door Handle (2)
15Retainer, Glass
16Spacer, Handle
19Strike
20Spacer, Glass (4)
