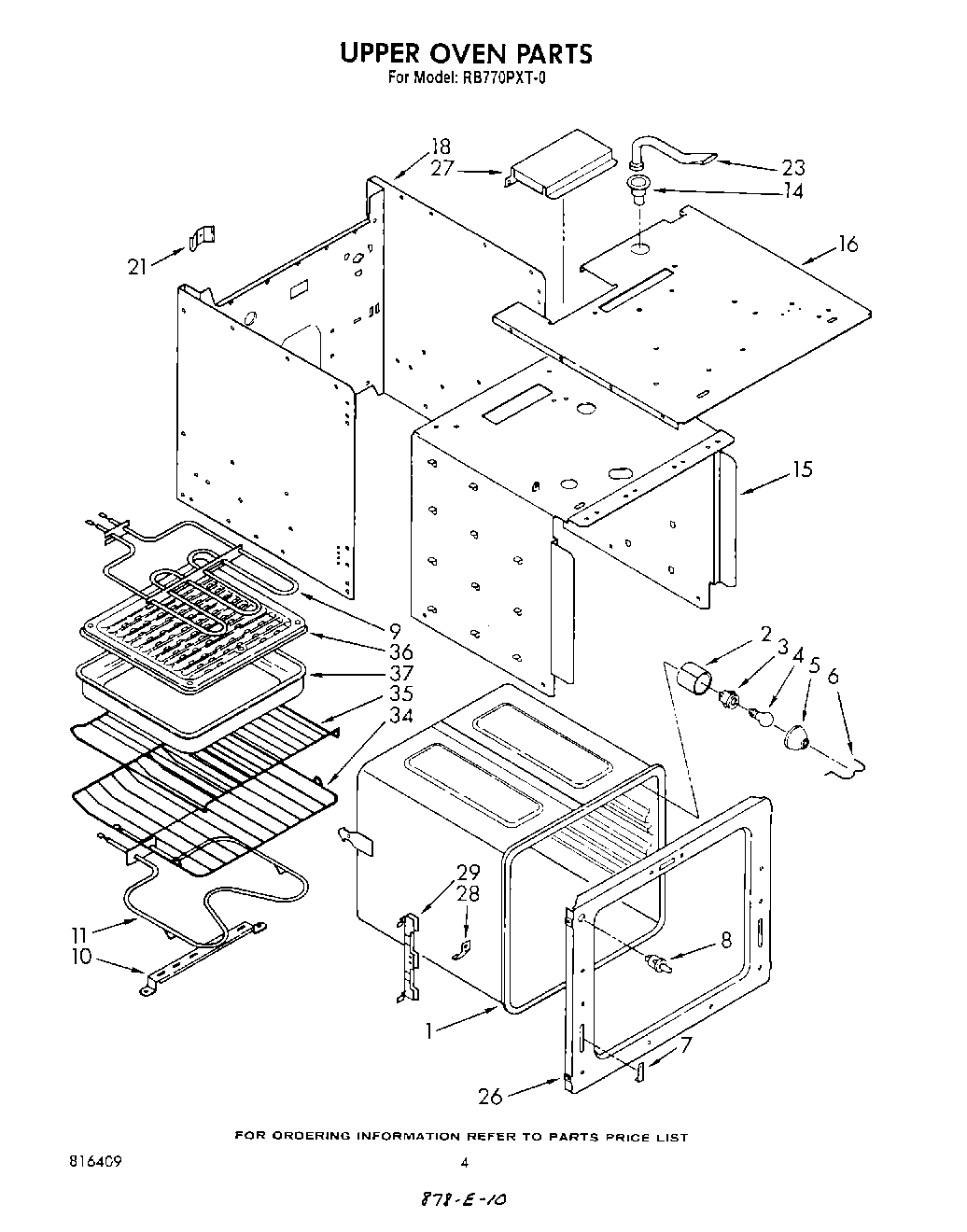

RB770PXT0 04 – UPPER OVEN , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT313358
	WPL LIT816142
	List, Repair Parts
	Instructions, Installation
1	Oven (27“ Pyro)
2	Cup, Light
3	W10856866 Whirlpool Light Socket
4	RANGE ONLY 40W 120V APPL BULB
5	Lens, Light
6	Retainer, Lens
7	Retainer, Door
7	Screw
8	Switch, Oven Light
9	Unit, Broil
10	Support, Broil Unit
11	Unit, Bake
14	Vent Tube
15	Insulation Retainer, Top and Sides
16	Casing, Top
18	Casing, Back and Sides
21	Spring, Door (2)
23	Duct, Oven Vent
26	Front Frame
27	Cover, Motor
28	WPL 816387
29	Channel, Hinge
34	Rack, Oven Regular
35	Rack, Oven Offset
36	Grill, Broiler Pan
37	Wire (14 Ga. 200 c Brown)
37	WPW10208653 Whirlpool Insulation
37	FOIL, ALUMINUM OVEN (18“ X 25 )
37	Wire, 25` Roll (Black 14 Ga.)
37	Wire, 25` Roll (Red 14 Ga.)
37	Wire, 25“ Roll (White 14 GA.)
37	Touch-Up Oven (1 Oz.)
37	242831 Whirlpool Oven Wire
37	Wire (14 Ga. 150 c Blue)
37	Wire (14 Ga. 150 c Brown)
37	Pan, Broiler
37	Wire (14 Ga. 150 c Orange)
37	1
37	Grease
37	Wire (14 Ga. 150 c Yellow)
37	Wire (12 Ga. 150 c Black)
37	18 Ga. 80~c Rating (Red)
37	Wire (14 Ga. 150 c Green)
