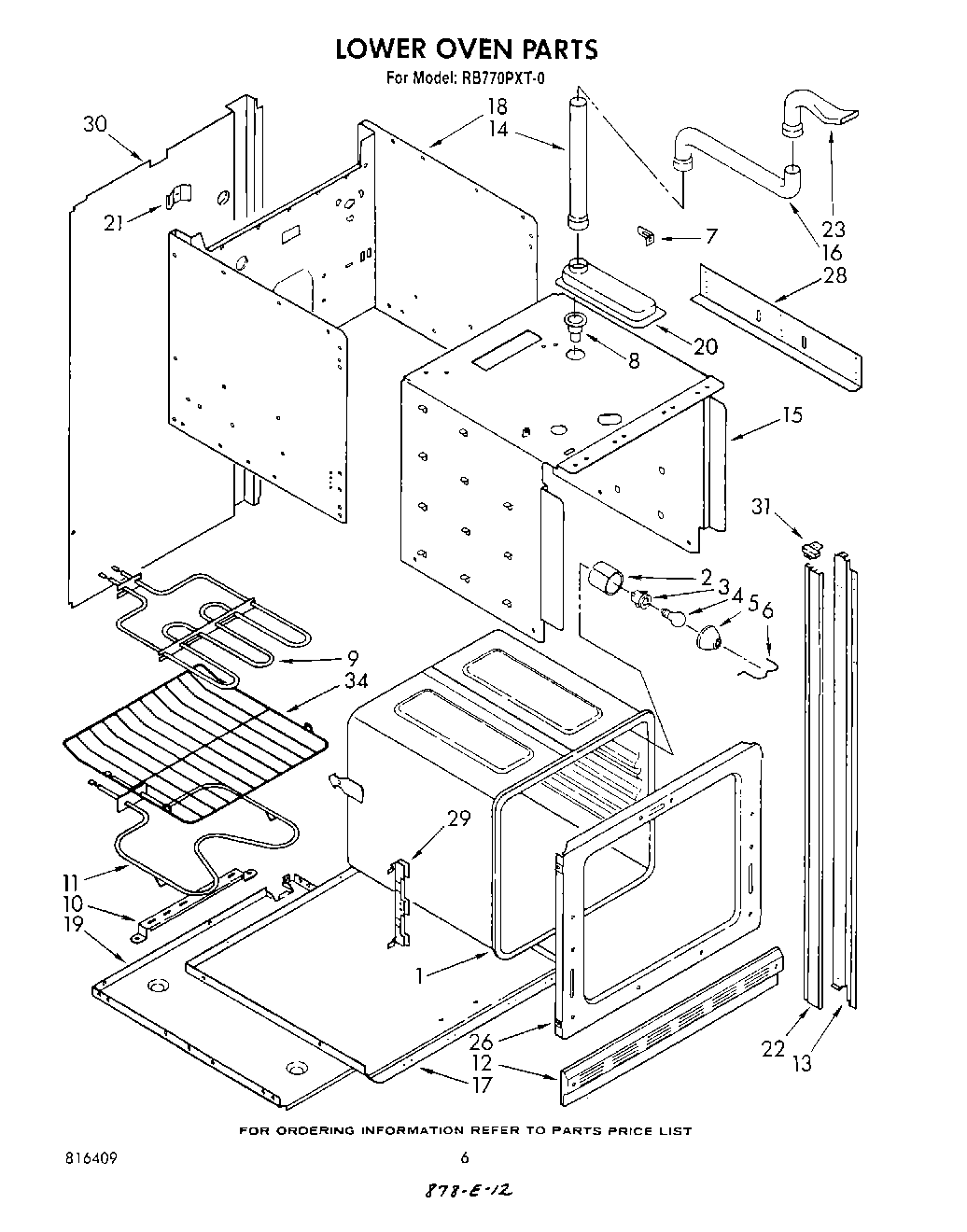

RB770PXT0 05 – LOWER OVEN
Written by
in
RB770PXT0 05 – LOWER OVEN
Products
Position
Product
1
Oven (27“)
2
Cup, Light
3
W10856866 Whirlpool Light Socket
4
RANGE ONLY 40W 120V APPL BULB
5
Lens, Light
6
Retainer, Lens
7
Bracket, Vent Tube
8
Vent Tube
9
Unit, Broil
10
Support, Broil Unit
11
WPL 816410
11
Unit, Bake
12
Trim, Base
13
Side Trim (Inner) (L.H.)
13
Side Trim (Inner) (R.H.)
14
Vent Tube
15
Insulation Retainer, Top and Sides
16
Vent Tube
17
Insulation Retainer, Bottom
18
Casing, Back and Sides
19
Casing, Bottom
20
Duct, Oven
21
Spring, Door (2)
22
Side Trim, Outer (2)
23
Duct, Oven Vent
26
Front Frame
28
Support, Height Adjustment (2)
29
Channel, Hinge
30
Cover, Rear
31
End Cap, Top
34
Rack, Oven Regular
←
