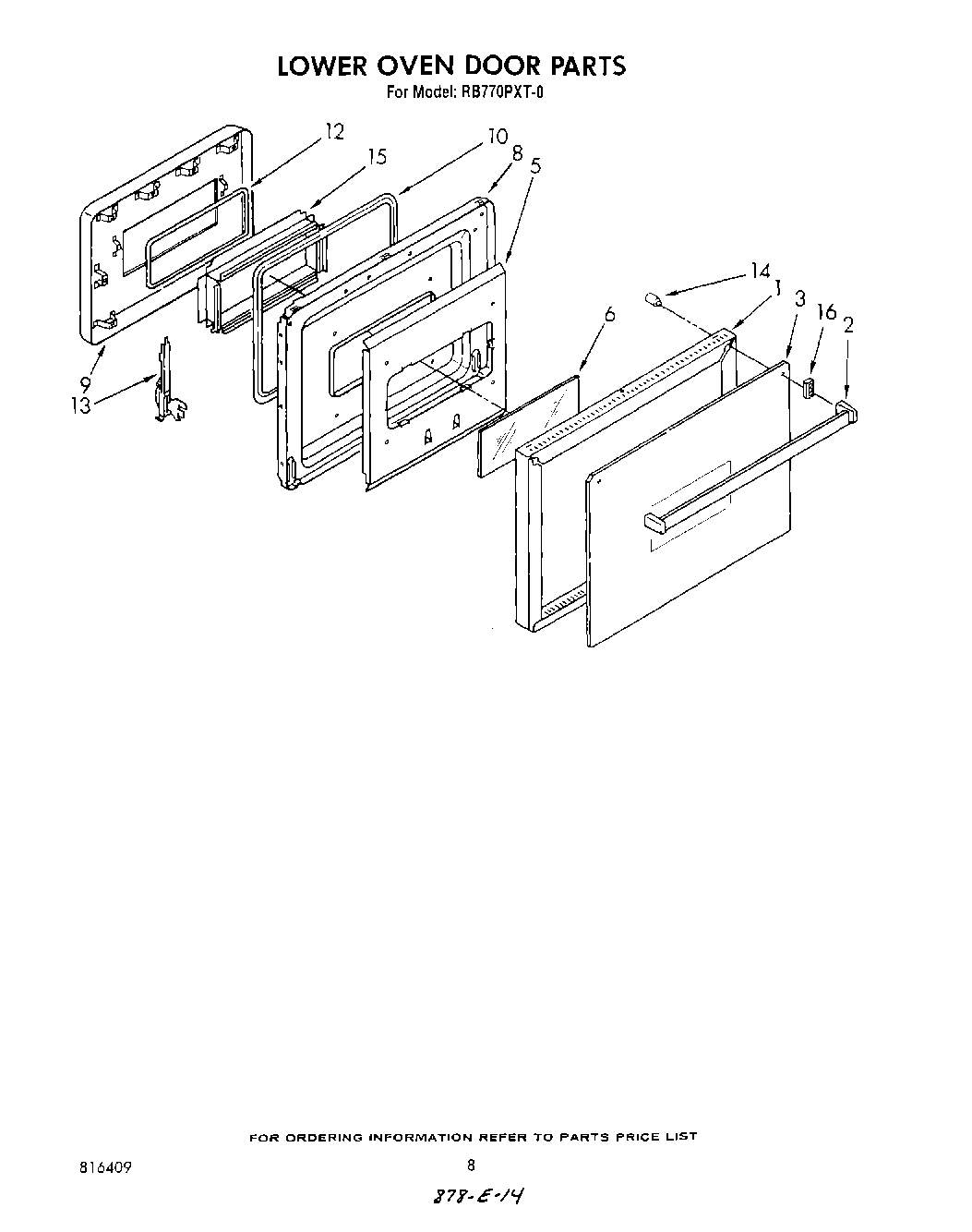

RB770PXT0 06 – LOWER OVEN DOOR

RB770PXT0 06 – LOWER OVEN DOOR

Written by

in

RB770PXT0 06 – LOWER OVEN DOOR

Products

PositionProduct
1Frame, Oven Door
2Handle, Oven Door
3Glass, Outer
5Panel, Airwash
6Glass, Inner
8Liner, Oven Door
9Baffle, Weldment
10Seal, Door
12Seal, Window
13Hinge Assy. (2)
14Spacer, Door Handle (2)
15Retainer, Glass
16Spacer, Handle
