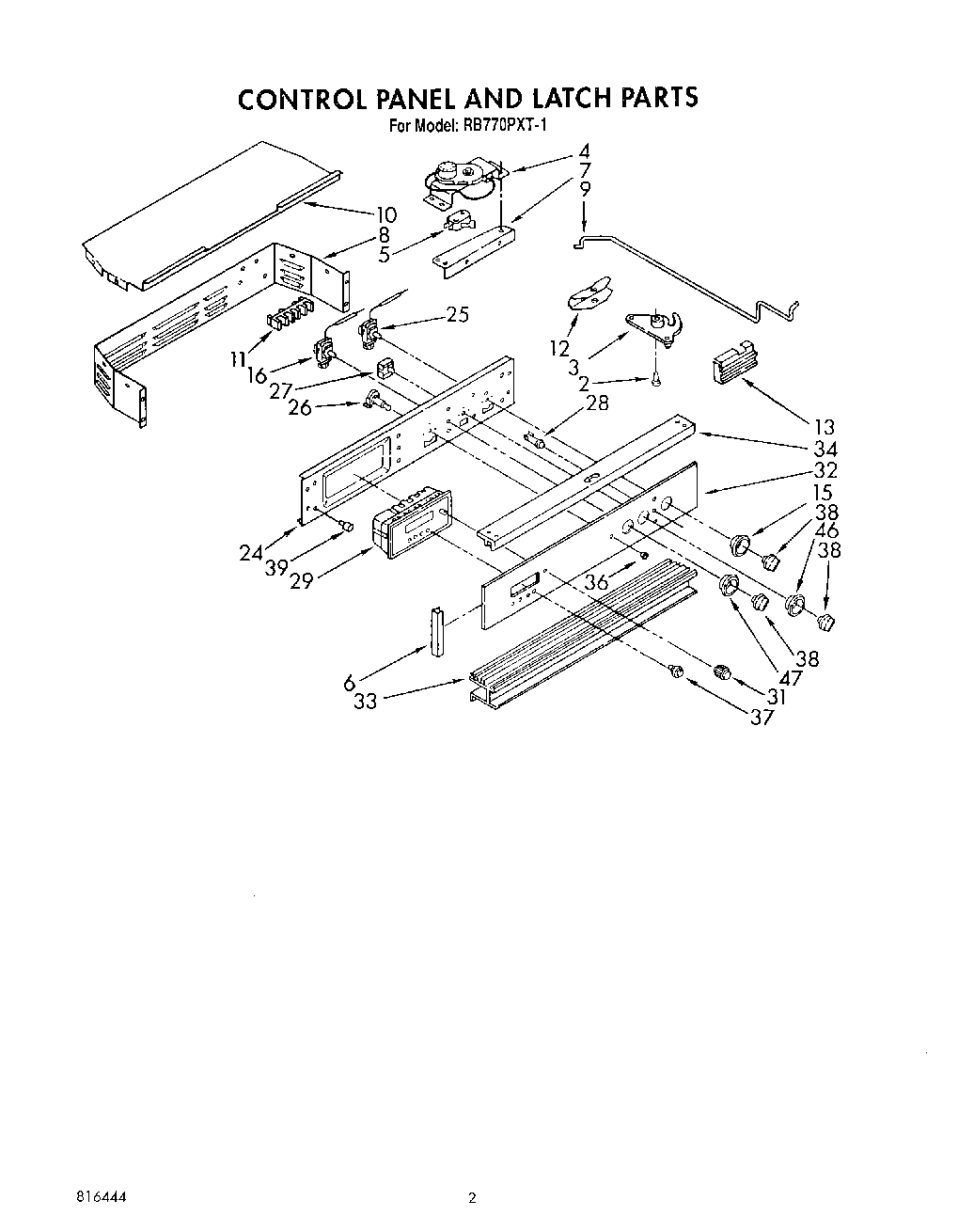

RB770PXT1 02 – CONTROL PANEL AND LATCH

Products

PositionProduct
2Pin, Hinge (2)
3Latch, Door
4Motor, Latch Assembly
5Switch, Latch (2)
6Trim, Control Panel
7Plate, Motor Mounting
8Housing, Control
8WP308685 Whirlpool Microwave Screw
9Rod, Latch Support
10Cover, Housing
11WP8203546 Whirlpool Terminal Block
11Screw, 10-16 x 1 (2)
12Housing, Latch
13Cover, Latch
15Escutcheon, Thermostat Upper Oven
16Thermostat, Oven (Lower)
24Bracket, Control
25Thermostat, Oven
26Switch, Oven Light
27Switch, Oven Selector
28Indicator Light (Clean)
28Indicator Light (2) (Lock, Oven)
29Timer (Digital)
31Knob, Timer
32Panel, Glass (Control)
33Screw, 10-24 x 3/8 (2)
33Trim, Vent
34Deflector, Heat (Screw, No.6x18x1/4 (3))
34Trim, Top
36Bezel, Switch (Black)
37Button, Clock (4)
38WP3150371 Whirlpool Control Knob
39Bumper, Cooktop (4)
46WP311068 Whirlpool Dial Knob Black
47Screw, 8-32 x 3/16 (2)
47Escutcheon, Thermostat – Lower Oven
