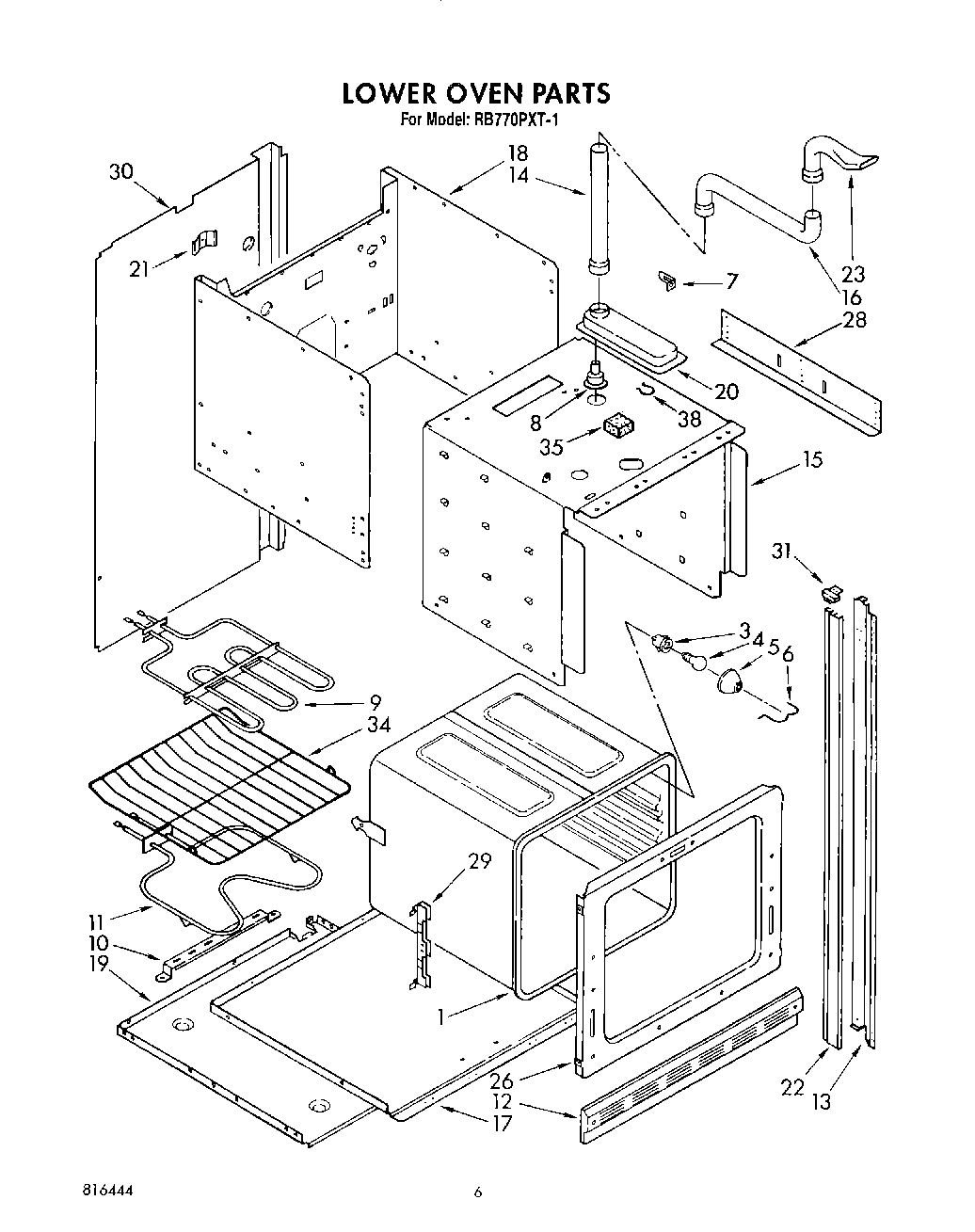

RB770PXT1 05 – LOWER OVEN

Products

Position	Product
1	Oven (27“)
3	W10856866 Whirlpool Light Socket
4	RANGE ONLY 40W 120V APPL BULB
5	Lens, Light
6	Retainer, Lens
7	Bracket, Vent Tube
8	Vent Tube
9	Unit, Broil
10	Support, Broil Unit
11	Unit, Bake
12	Trim, Base
13	Side Trim (Inner) (R.H.)
13	Side Trim (Inner) (L.H.)
14	Vent Tube
15	Insulation Retainer, Top and Sides
16	Vent Tube
17	Insulation Retainer, Bottom
18	Casing, Back and Sides
19	Casing, Bottom
20	Duct, Oven
21	Spring, Door (2)
22	Back Splash (Screw (4) 10AB x 1/2“)
22	Side Trim, Outer (2)
23	Duct, Oven Vent
23	Screw, 8-32 x 3/16 (2)
26	Screw, No.10x24x5/8
26	Front Frame
28	Support, Height Adjustment (2)
28	WP308685 Whirlpool Microwave Screw
29	Channel, Hinge
30	Cover, Rear
30	Screw, 10-24 x 3/8 (2)
31	End Cap, Top
34	Rack, Oven Regular
35	Insulation
38	Retainer
