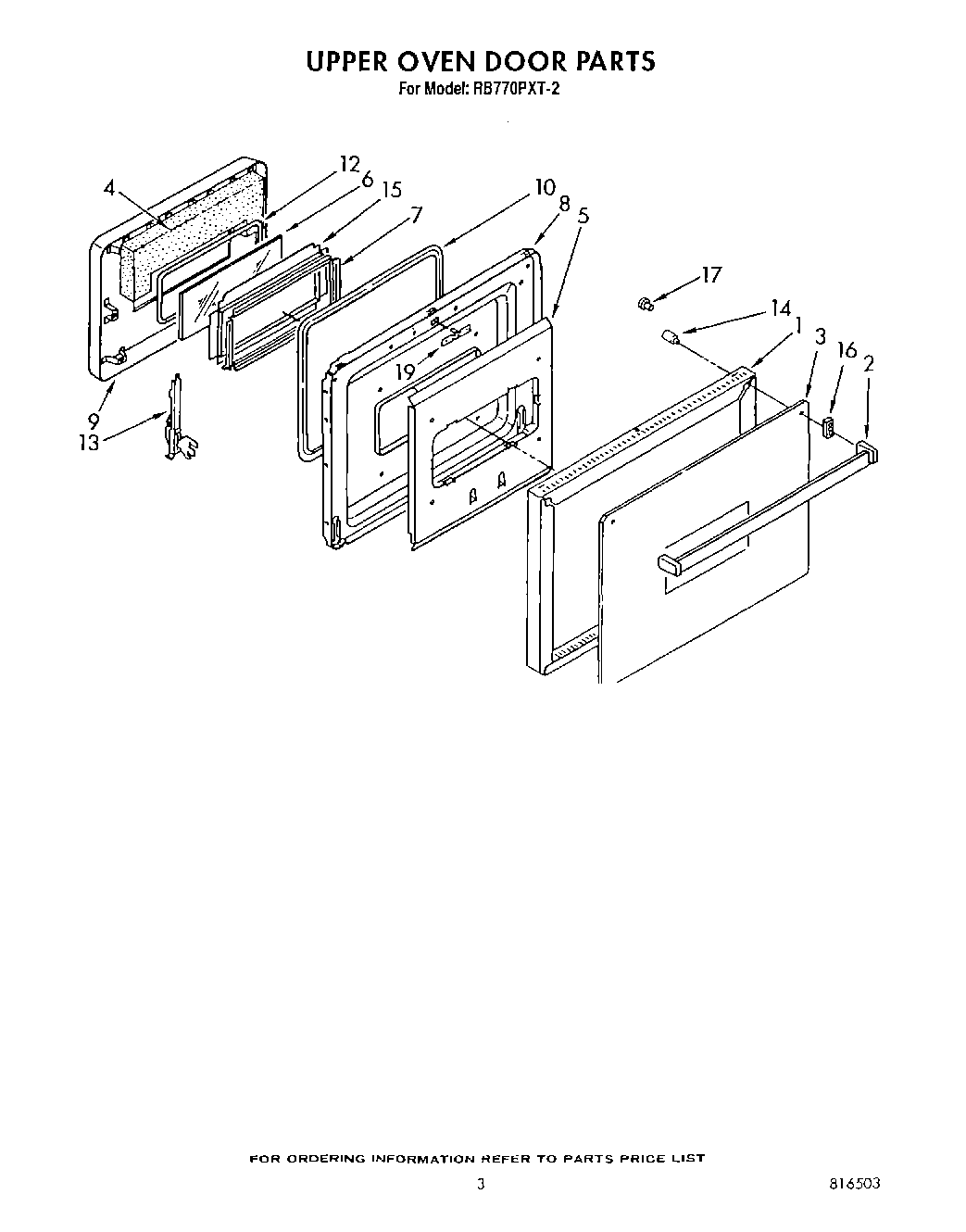

RB770PXT2 03 – UPPER OVEN DOORadmin2025-04-26T11:22:37+00:00RB770PXT2 03 – UPPER OVEN DOOR
Products
| Position | Product |
|---|
| 1 | WP90767 Whirlpool Screw |
| 1 | Frame, Oven Door |
| 2 | Handle, Oven Door |
| 2 | Handle, Door (Screw, No.10x24x21/4 (2)) |
| 3 | Glass, Outer |
| 4 | Insulation, Oven Door |
| 5 | Panel, Airwash |
| 6 | Glass, Inner Door |
| 7 | Spacer, Glass |
| 8 | Liner, Oven Door |
| 9 | Baffle, Weldment |
| 9 | Screw, 10-24 x 2 3/4 (4) |
| 10 | Seal, Oven Door |
| 12 | Seal, Window |
| 13 | Hinge Assy. (2) |
| 14 | Spacer, Handle Mount (2) |
| 15 | Collar, Glass |
| 16 | Spacer, Handle (Black) |
| 17 | Button, Plug |
| 19 | Screw, No.10x24x5/8 |
| 19 | Strike |
