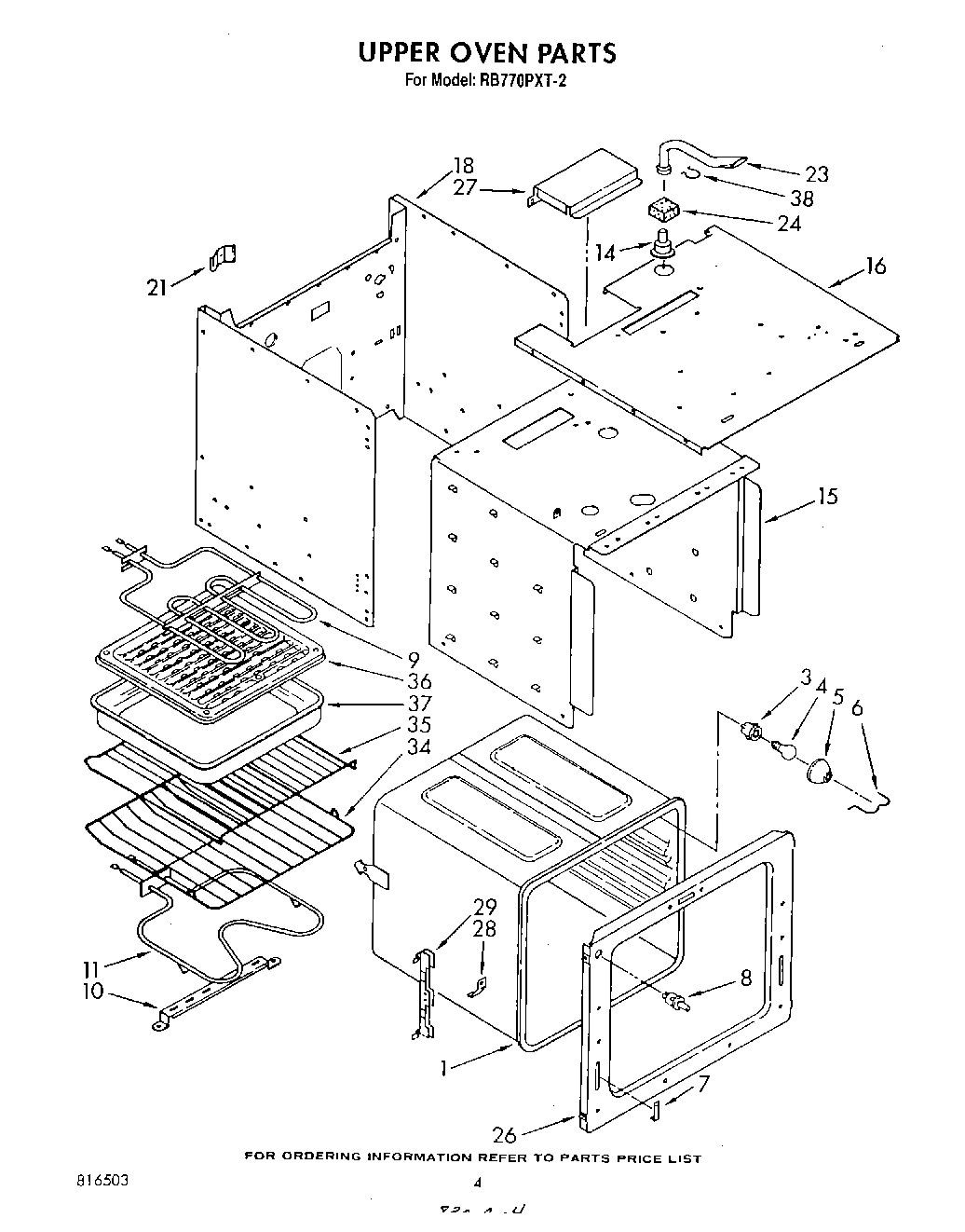

RB770PXT2 04 – UPPER OVEN , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT313358
	WPL LIT816142
	WPL LIT816259
	WPL LIT816503
1	Oven (27“ Pyro)
3	W10856866 Whirlpool Light Socket
4	RANGE ONLY 40W 120V APPL BULB
5	Lens, Light
6	Retainer, Lens
7	Retainer, Door
8	Switch, Oven Light
9	Unit, Broil
10	Support, Broil Unit
11	Unit, Bake
14	Vent Tube
15	Insulation Retainer, Top and Sides
16	Casing, Top
18	WP308685 Whirlpool Microwave Screw
18	Casing, Back and Sides
21	Spring, Door (2)
23	Duct, Oven Vent
23	Screw, 8-32 x 3/16 (2)
24	Insulation
26	Screw, No.10x24x5/8
26	Front Frame
27	Screw, 10-24 x 3/8 (2)
27	Cover, Motor
28	WPL 816387
29	Channel, Hinge
34	Rack, Oven Regular
35	Rack, Oven Offset
36	Grill, Broiler Pan
37	4396923 Whirlpool Broil Pan Set Gray Porcelain
38	Wire, 25` Roll (Black 14 Ga.)
38	FOIL, ALUMINUM OVEN (18“ X 25 )
38	Wire, 25“ Roll (White 14 GA.)
38	Touch-Up Oven (1 Oz.)
38	WPW10208653 Whirlpool Insulation
38	Wire, 25` Roll (Red 14 Ga.)
38	242831 Whirlpool Oven Wire
38	Wire (14 Ga. 150 c Blue)
38	Grease
38	Wire (14 Ga. 200 c Brown)
38	18 Ga. 80~c Rating (Red)
38	1
38	Wire (12 Ga. 150 c Black)
38	Wire (14 Ga. 150 c Yellow)
38	Wire (14 Ga. 150 c Orange)
38	Wire (14 Ga. 150 c Green)
38	Wire (14 Ga. 150 c Brown)
38	Retainer
