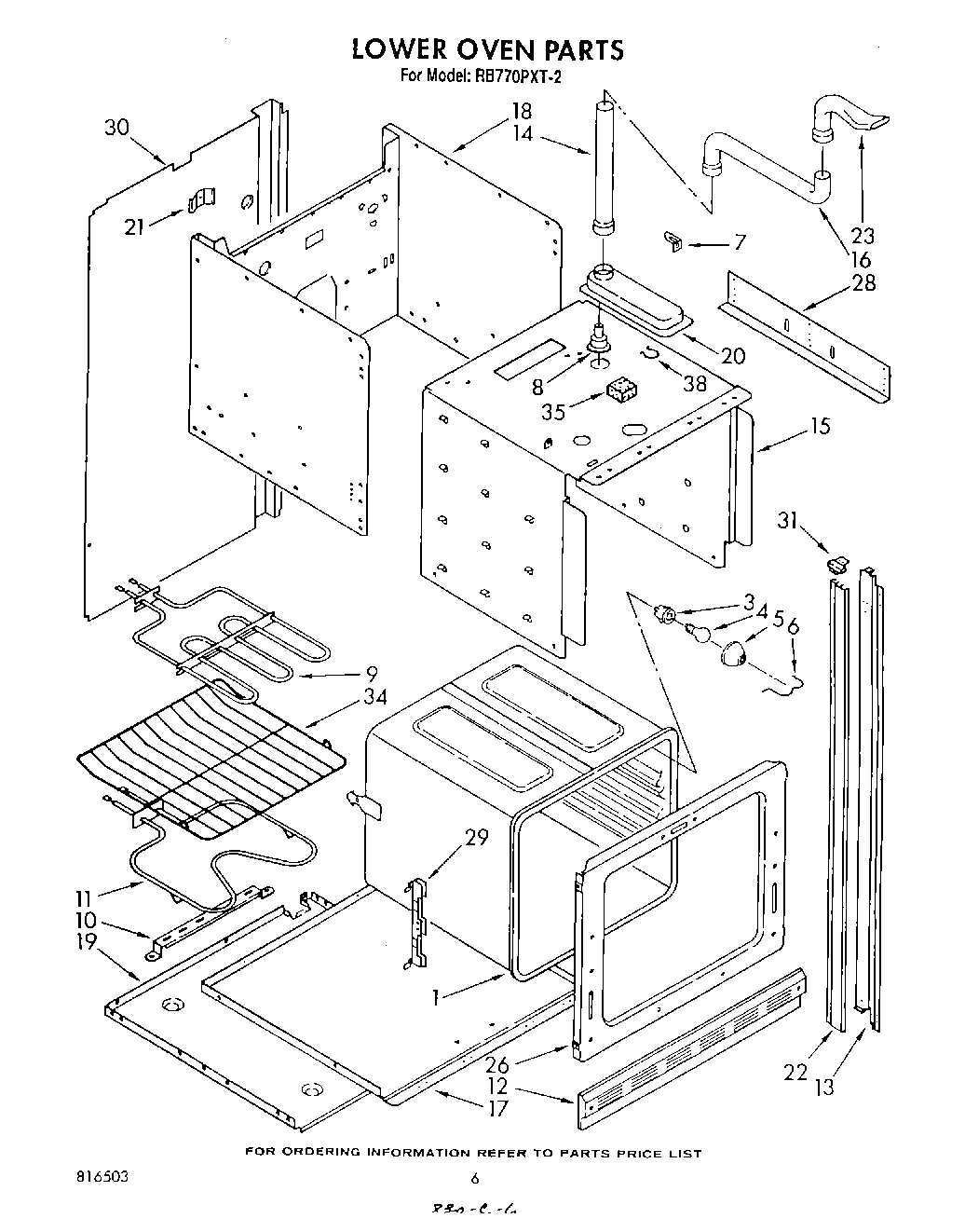

RB770PXT2 05 – LOWER OVEN

RB770PXT2 05 – LOWER OVEN

Written by

in

RB770PXT2 05 – LOWER OVEN

Products

PositionProduct
1Oven (27“)
3W10856866 Whirlpool Light Socket
4RANGE ONLY 40W 120V APPL BULB
5Lens, Light
6Retainer, Lens
7Bracket, Vent Tube
8Vent Tube
9Unit, Broil
10Support, Broil Unit
11Unit, Bake
12Trim, Base
13Side Trim (Inner) (R.H.)
13Side Trim (Inner) (L.H.)
14Vent Tube
15Insulation Retainer, Top and Sides
16Vent Tube
17Insulation Retainer, Bottom
18Casing, Back and Sides
19Casing, Bottom
20Duct, Oven
21Spring, Door (2)
22Back Splash (Screw (4) 10AB x 1/2“)
22Side Trim, Outer (2)
23Duct, Oven Vent
23Screw, 8-32 x 3/16 (2)
26Screw, No.10x24x5/8
26Front Frame
28Support, Height Adjustment (2)
28WP308685 Whirlpool Microwave Screw
29Channel, Hinge
30Cover, Rear
30Screw, 10-24 x 3/8 (2)
31End Cap, Top
34Rack, Oven Regular
35Insulation
38Retainer
