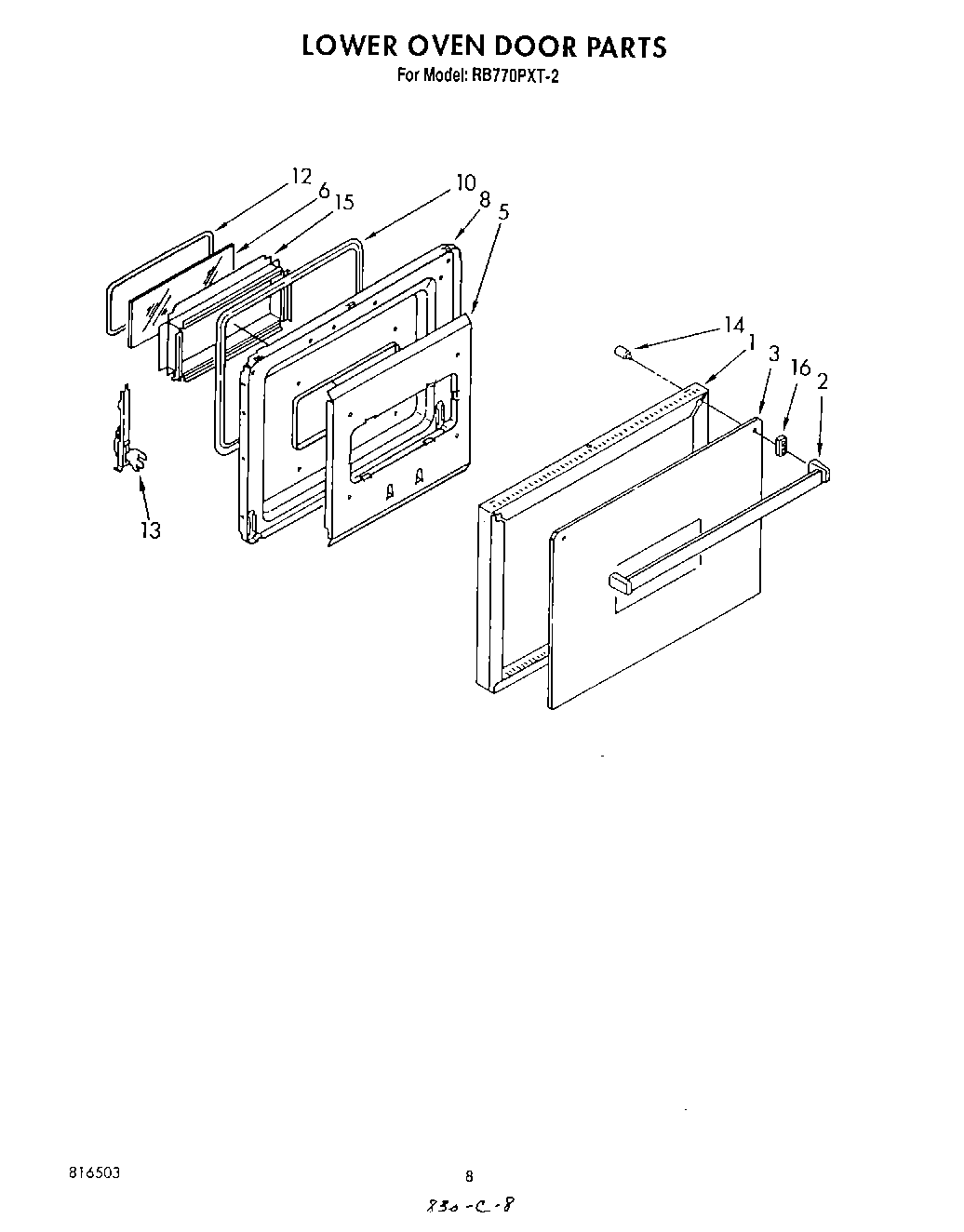

RB770PXT2 06 – LOWER OVEN DOORadmin2025-04-26T11:23:41+00:00RB770PXT2 06 – LOWER OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Back Splash (Screw (4) 10AB x 1/2``) |
| 1 | Frame, Oven Door |
| 2 | Handle, Oven Door |
| 2 | Handle, Door (Screw, No.10x24x21/4 (2)) |
| 3 | Glass, Outer |
| 5 | Panel, Airwash |
| 6 | Glass, Inner |
| 8 | Liner, Oven Door |
| 10 | Seal, Door |
| 12 | Seal, Window |
| 13 | Screw, No.10x24x5/8 |
| 13 | Hinge Assy. (2) |
| 14 | Spacer, Handle Mount (2) |
| 15 | Retainer, Glass |
| 16 | Spacer, Handle (Black) |
