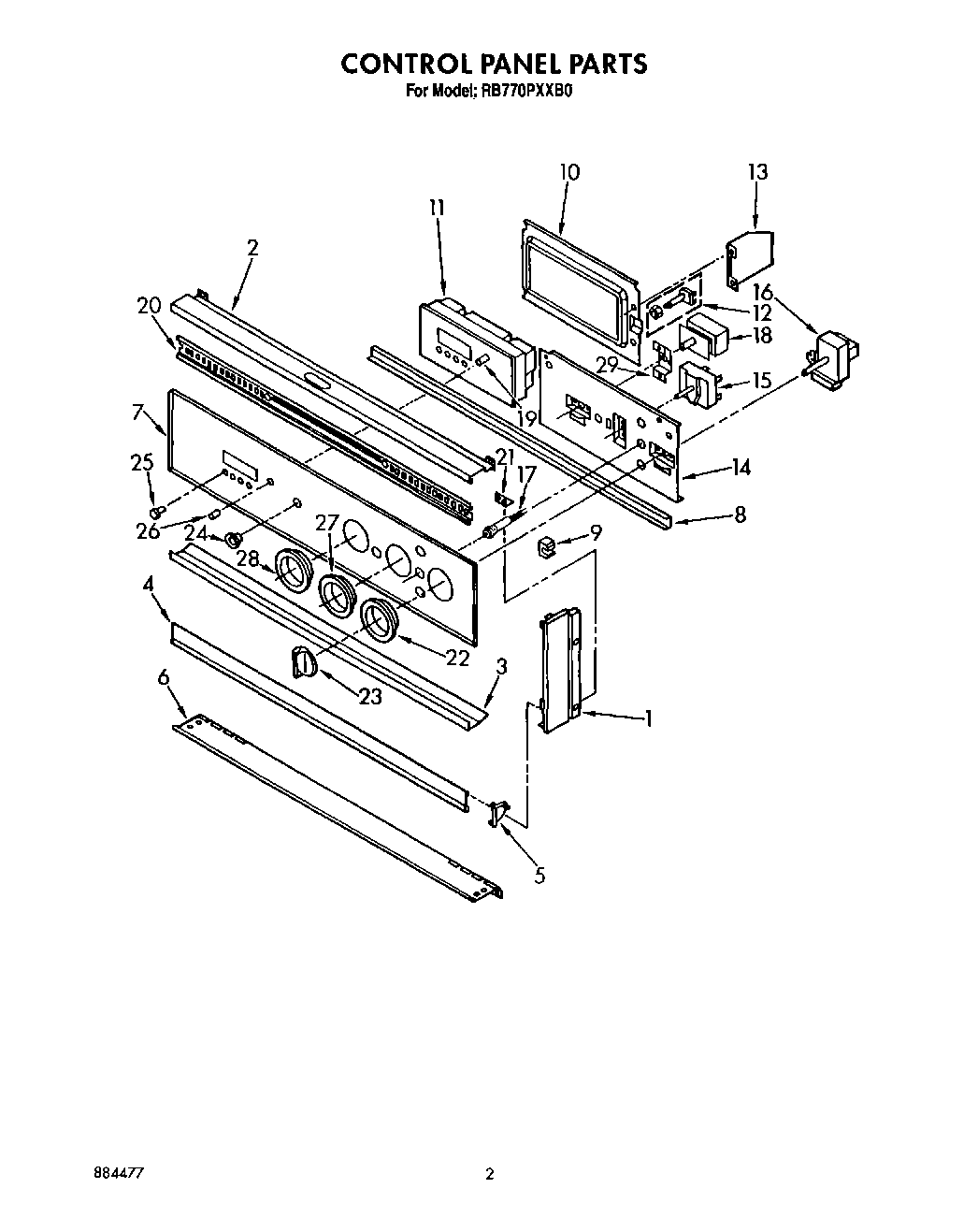

RB770PXXB0 02 – CONTROL PANEL, LIT/OPTIONALadmin2025-04-26T11:22:20+00:00RB770PXXB0 02 – CONTROL PANEL, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Repair Parts List |
| Installation Instructions |
| Tech Sheet |
| Use & Care Guide |
| 1 | End Cap (Right Hand) |
| 1 | End Cap (Left Hand) |
| 2 | Trim, Top |
| 3 | Trim, Center |
| 4 | Door, Vent |
| 5 | End Trim, Vent (Left Side) |
| 5 | End Trim, Vent (Right Side) |
| 6 | Screw, Black (2) |
| 6 | Trim, Bottom |
| 7 | Glass, Control Panel |
| 8 | Rail, Mounting (Components) |
| 9 | Retainer, Glass (6) |
| 10 | Plate, Mounting (Clock) |
| 11 | Timer, Digital (Includes Knobs) |
| 12 | Switch, Oven Light |
| 13 | Shield, Heat |
| 14 | Plate, Mounting (Controls) |
| 15 | Switch, Selector |
| 16 | Thermostat, upper |
| 16 | WP486579 Whirlpool Air Conditioner Screw |
| 17 | Indicator Light, Oven (Lower Oven) |
| 18 | Thermostat, Lower |
| 18 | Screw (2) |
| 19 | Shaft, Bit Generator |
| 20 | Insert, Vent |
| 21 | Bracket, Mounting |
| 22 | Escutcheon, Oven Thermostat |
| 23 | WP3150371 Whirlpool Control Knob |
| 24 | Bezel Switch (1) |
| 25 | WPL 313958 |
| 26 | Knob, Bit Generator (Black) |
| 27 | Escutcheon, Selector Switch |
| 28 | Ecsutcheon, Oven Thermostat (Lower) |
| 28 | Screw, |
| 29 | Bracket, Mounting (Lower Thermostat) |
| 29 | WP90767 Whirlpool Screw |
