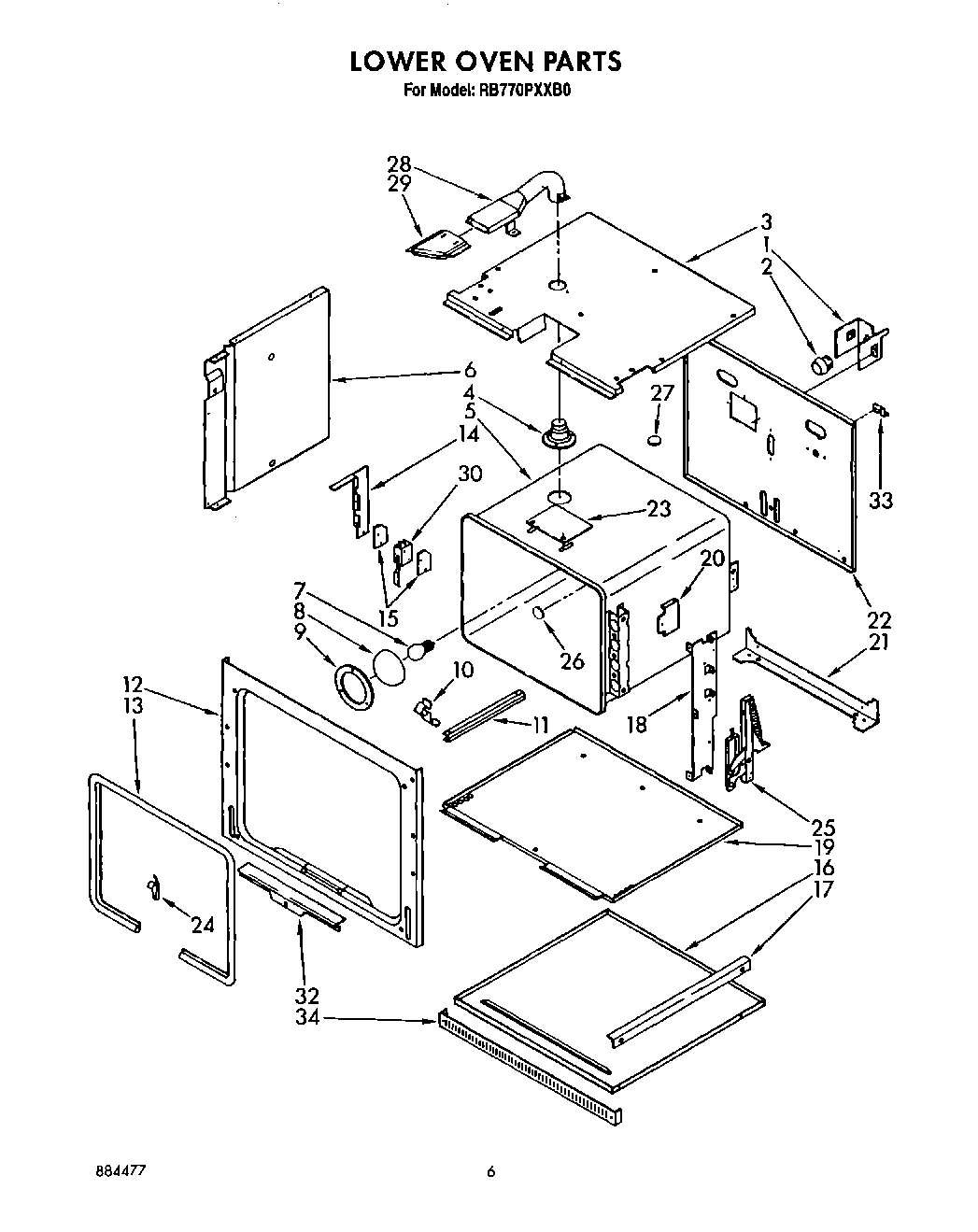

RB770PXXB0 04 – LOWER OVEN

Products

Position	Product
1	Housing, Light
2	Socket, Light
3	Top, Module
4	Smoke Eliminator (Vent Tube Lower Oven)
5	Liner, Oven
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
8	Light Lens
9	Retainer, Glass
10	98005642 Whirlpool Clip
11	Broiler Element Support-Right
12	Frame, Front
12	Screw (4)
13	Seal, Door
14	Bracket, Switch
14	WP3177991 Whirlpool Screw
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
21	Support, Oven
22	Back, Module
23	Screw (3)
23	Cover, Latch Mtg.
24	Clip, Oven Seal
25	Screw (4)
25	Hinge, Door
26	Plug Button (5/8“ Hole)
27	Plug Button (3/8“ Hole)
28	Tube, Vent Male
28	WP90767 Whirlpool Screw
29	Tube, Vent
30	Screw (2)
30	Switch, Door
30	Nut (2)
32	Retainer, Seal
32	SCREW
33	Cover, Cap Tube
33	Screw
34	Insulation, Oven
34	Insulation, Back
34	Vent, Lower Trim (Black)
