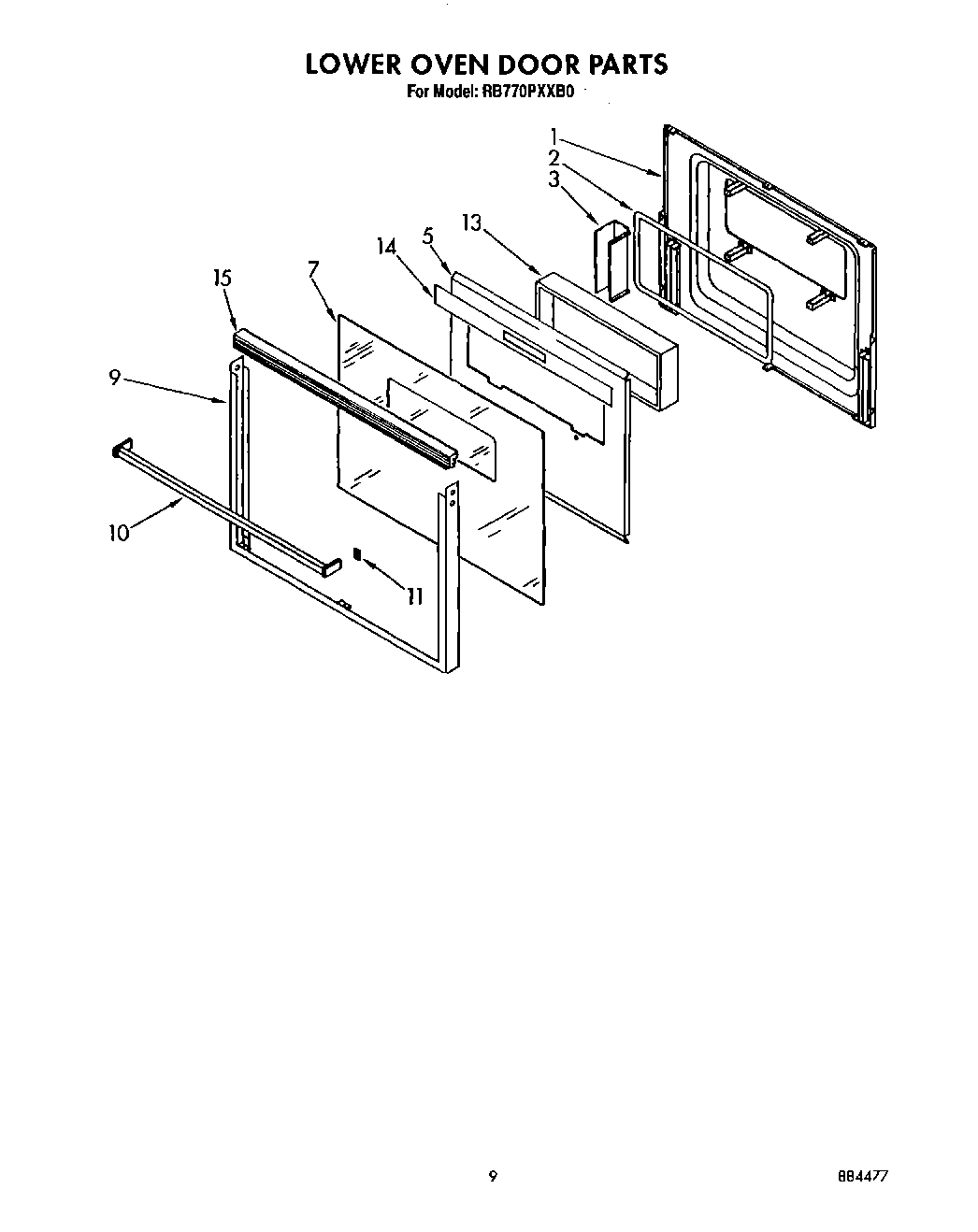

RB770PXXB0 06 – LOWER OVEN DOOR

RB770PXXB0 06 – LOWER OVEN DOOR

Written by

in

RB770PXXB0 06 – LOWER OVEN DOOR

Products

PositionProduct
1Liner, Door
1Vent, Lower Trim (Screw (2))
1Screw, Black (2)
2Seal, Window
3Spacer, Window
5WP90767 Whirlpool Screw
5Insulation, Retainer
7Glass, Door
9Frame, Door
10WP355515 Whirlpool Screw
10Handle, Door
11Clip, Mtg (2)
13Window Package
14Shield, Door
15Screw (3)
15Trim, Door
