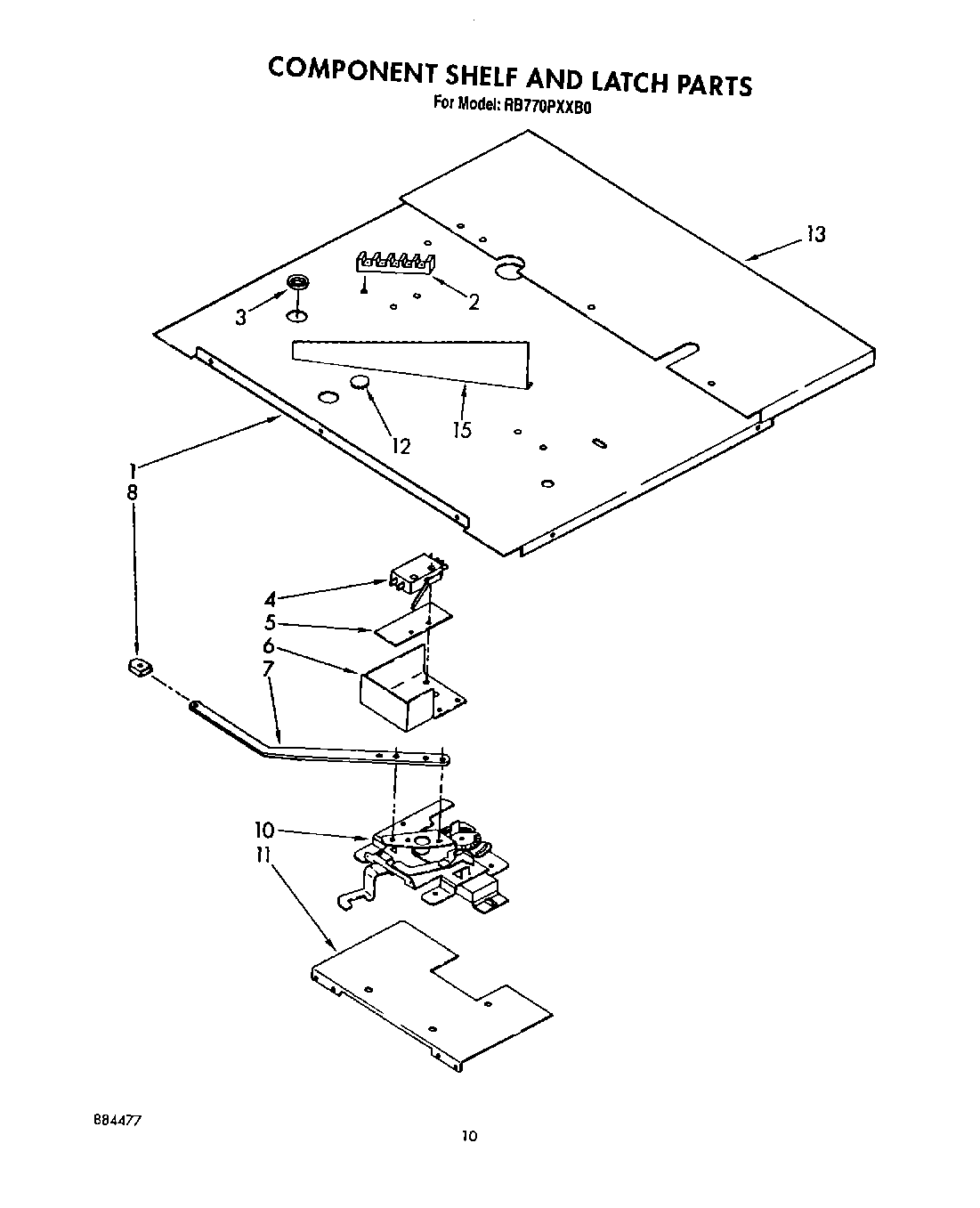

RB770PXXB0 07 – COMPONENT SHELF AND LATCH

Written by

Products

Position	Product
1	Shelf, Component
2	WP8203546 Whirlpool Terminal Block
2	W10841059 Whirlpool Screw
3	Bushing
4	Switch, Latch
4	Screw
5	Insulator, Switch
6	Screw,
6	Guard, Latch
7	Handle, Latch
7	Screw
8	Knob, Latch Handle
10	Latch, Mechanism
11	Plate, Mounting
12	Plug, Button
13	WP3177991 Whirlpool Screw
13	Extension, Shelf
13	WP488234 Whirlpool Air Conditioner Screw
15	WP90767 Whirlpool Screw
15	Baffle, Air
