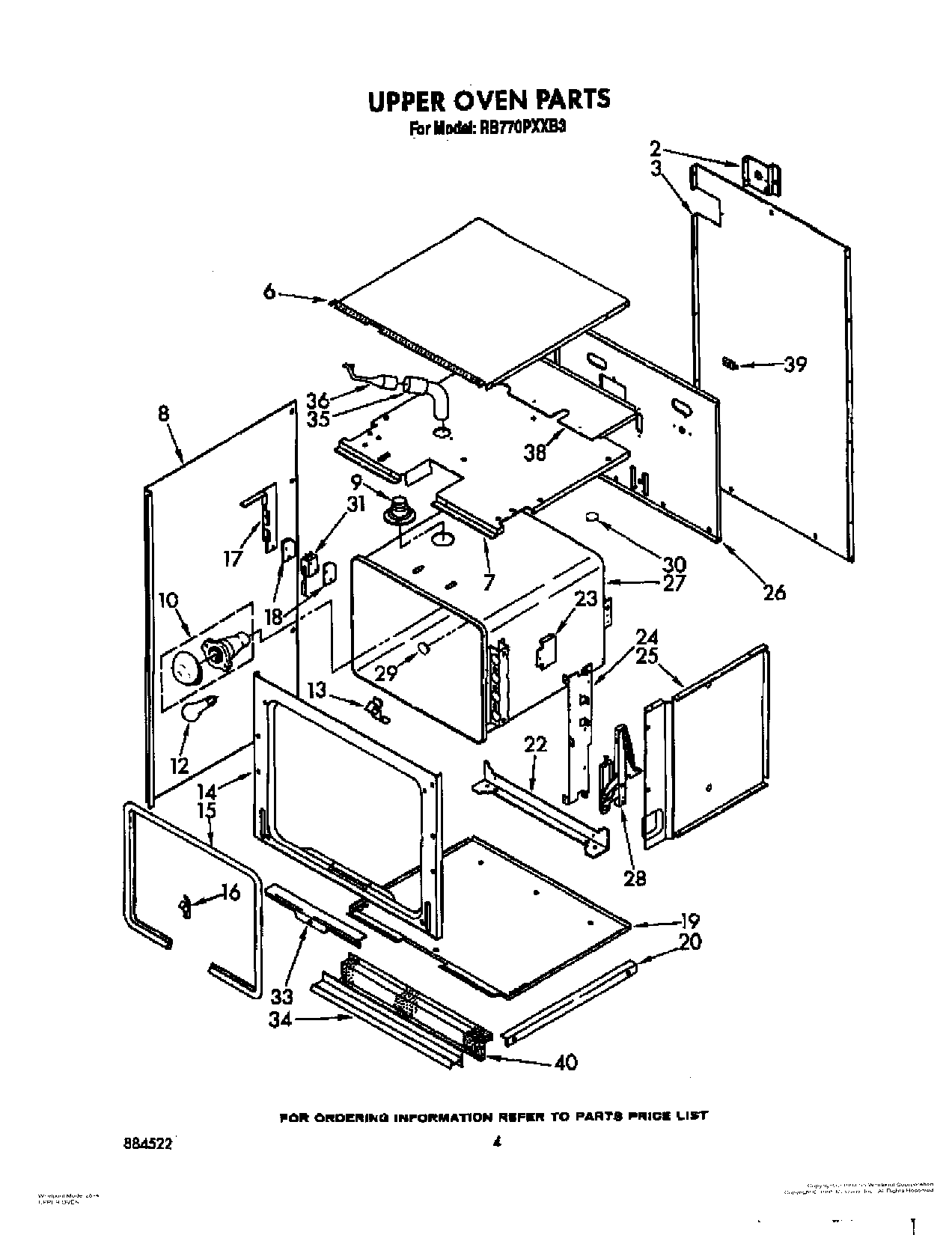

RB770PXXB3 03 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
29	Button, Plug
30	Button, Plug
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	Retainer, Seal
33	SCREW
34	Screw
34	Vent, Middle Trim
34	Vent, Lower Trim (Screw (2))
35	Vent, Tube (Upper, Female)
36	Vent Tube (Upper Male)
38	WP3177991 Whirlpool Screw
38	Extension, Shelf
39	Cover, Cap Tube
39	Screw
40	Insulation, Oven
40	Screen, Wire Mesh
40	Insulation, Back
40	Screw (2)
40	WP90767 Whirlpool Screw
