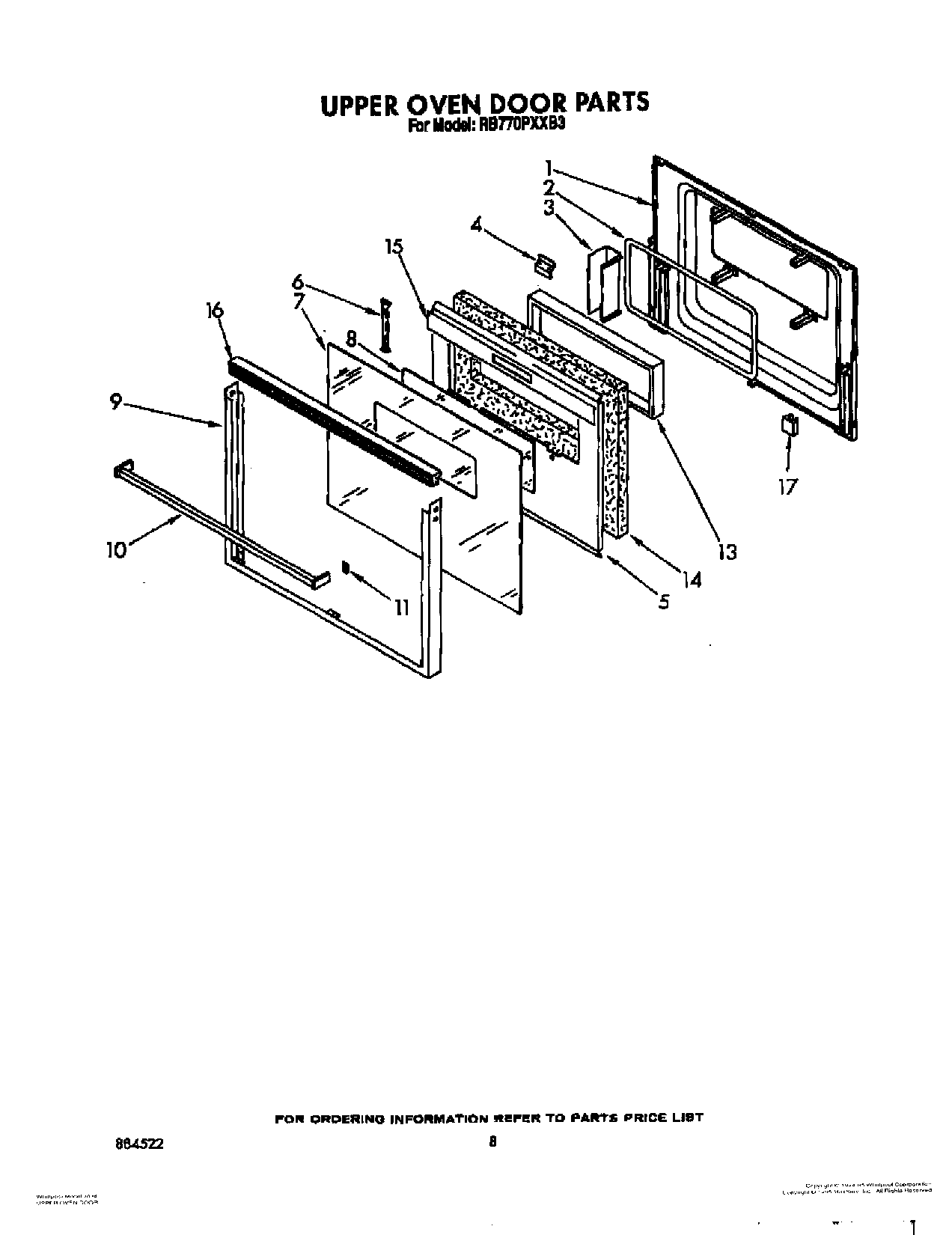

RB770PXXB3 05 – UPPER OVEN DOOR

Products

PositionProduct
1Screw, Black (2)
1Liner, Door
1Vent, Lower Trim (Screw (2))
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
6WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door
8Glass, Reflective
9Frame, Door
10Handle, Door
10WP355515 Whirlpool Screw
11Clip, Mtg (2)
13Window Package
14Insulation, Door
15Shield, Door
16Trim, Door
17Bumper, Door Glass
