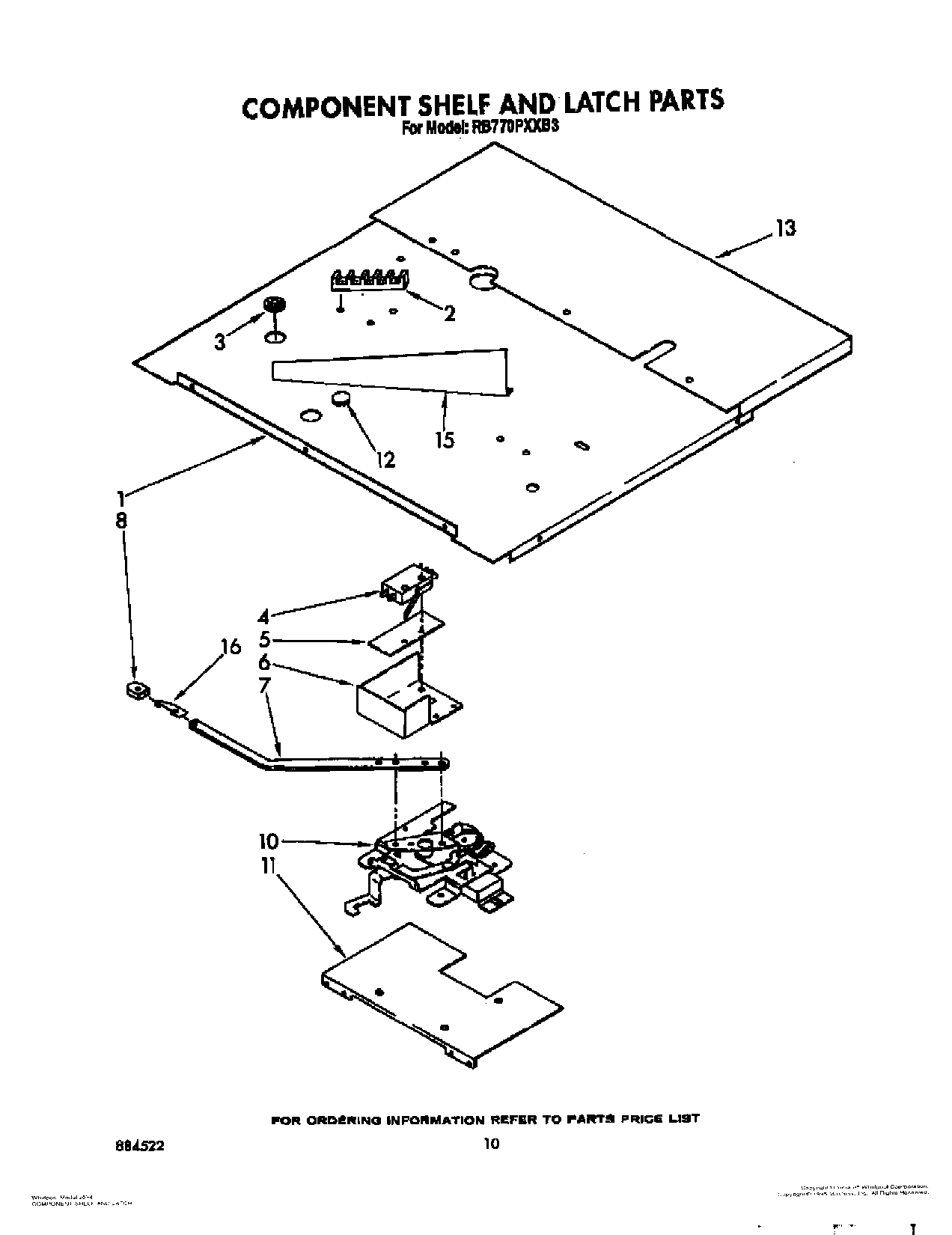

RB770PXXB3 07 – COMPONENT SHELF AND LATCH
Written by
in
RB770PXXB3 07 – COMPONENT SHELF AND LATCH
Products
Position
Product
1
Shelf, Component
2
WP8203546 Whirlpool Terminal Block
2
W10841059 Whirlpool Screw
3
Bushing
4
Switch, Latch
4
Screw
5
Insulator, Switch
6
Screw,
6
Guard, Latch
7
Handle, Latch
7
Screw
8
Knob, Latch Handle
10
Latch, Mechanism
11
Plate, Mounting
12
Plug, Button
13
WP3177991 Whirlpool Screw
13
Extension, Shelf
13
WP488234 Whirlpool Air Conditioner Screw
15
Baffle, Air
16
WP90767 Whirlpool Screw
16
Support, Latch
←
