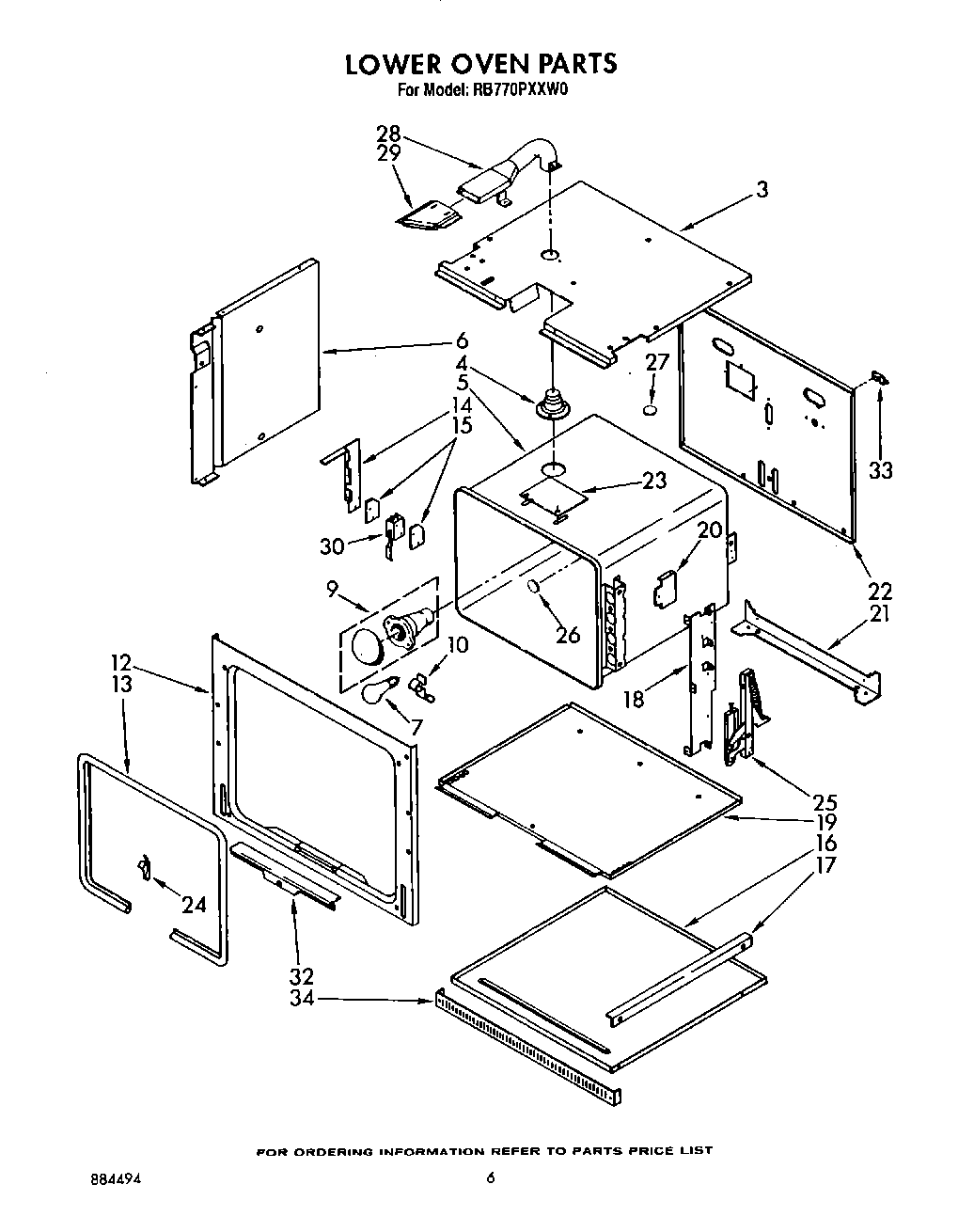

RB770PXXW0 04 – LOWER OVEN

Products

Position	Product
3	Top, Module
4	Smoke Eliminator (Vent Tube Lower Oven)
5	Liner, Oven
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
9	W11594027 Whirlpool Range Oven Light Socket
10	98005642 Whirlpool Clip
12	Screw (4)
12	Frame, Front
13	Seal, Door
14	Bracket, Switch
14	WP3177991 Whirlpool Screw
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
21	Support, Oven
22	Back, Module
23	Screw (3)
23	Cover, Latch Mtg.
24	Clip, Oven Seal
25	Hinge, Door
25	Screw (4)
26	Plug Button (5/8`` Hole)
27	Plug Button (3/8`` Hole)
28	Tube, Vent Male
28	WP90767 Whirlpool Screw
29	Tube, Vent
30	Switch, Door
30	Screw (2)
30	Nut (2)
31	Insulator, Switch
32	SCREW
32	Retainer, Seal
33	Cover, Cap Tube
33	Screw
34	Insulation, Oven
34	Insulation, Back
34	Vent, Lower Trim (White)
