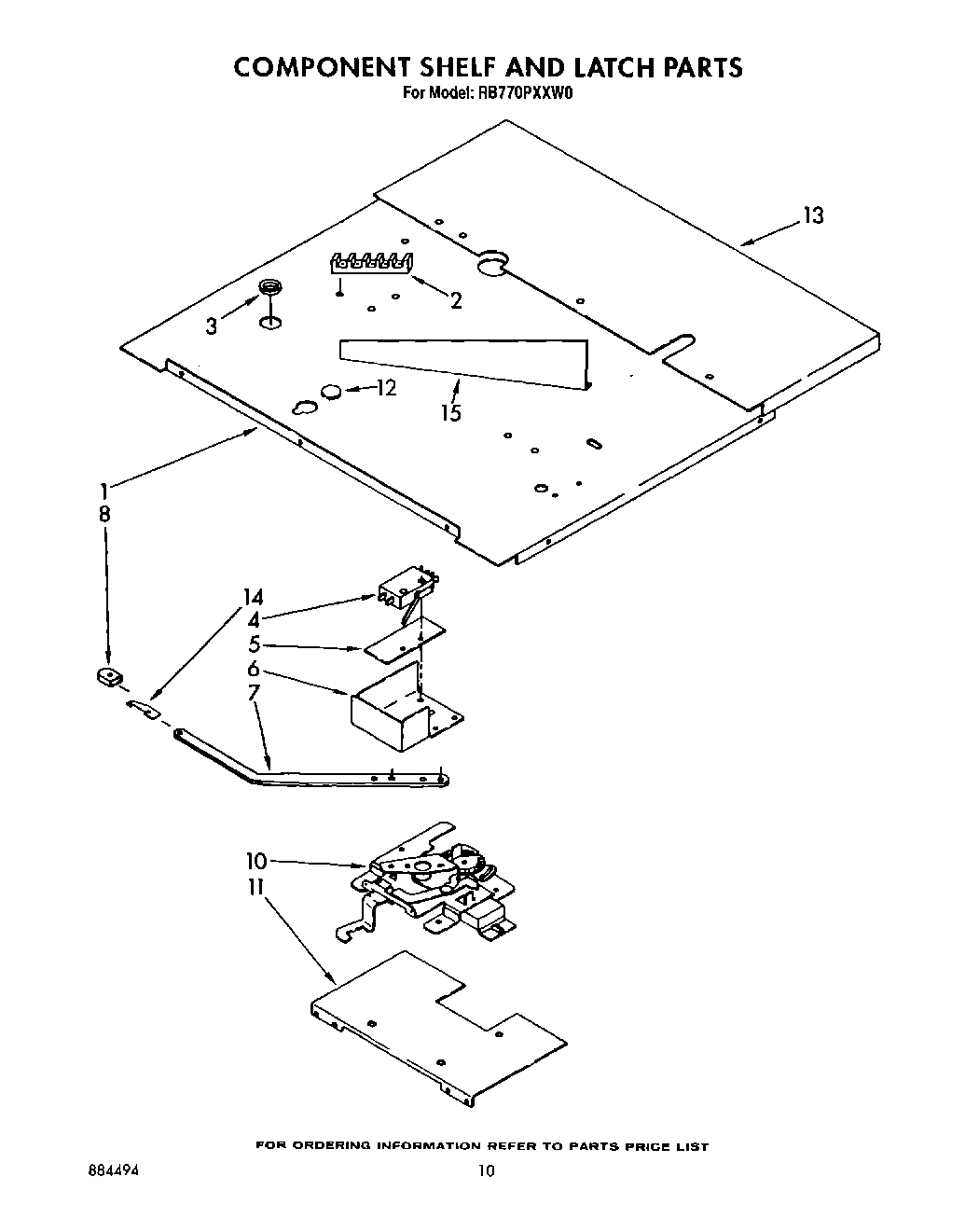

RB770PXXW0 07 – COMPONENT SHELF AND LATCH

Written by

Products

Position	Product
1	WP90767 Whirlpool Screw
1	Shelf, Component
2	WP8203546 Whirlpool Terminal Block
2	W10841059 Whirlpool Screw
3	Bushing
4	Screw
4	Switch, Latch
5	Insulator, Switch
6	Screw,
6	Guard, Latch
7	Handle, Latch
7	Screw
8	Knob, Latch Handle
10	Latch, Mechanism
11	Plate, Mounting
12	Plug, Button
13	WP3177991 Whirlpool Screw
13	Extension, Shelf
14	WP488234 Whirlpool Air Conditioner Screw
14	Support, Latch
15	Baffle, Air
