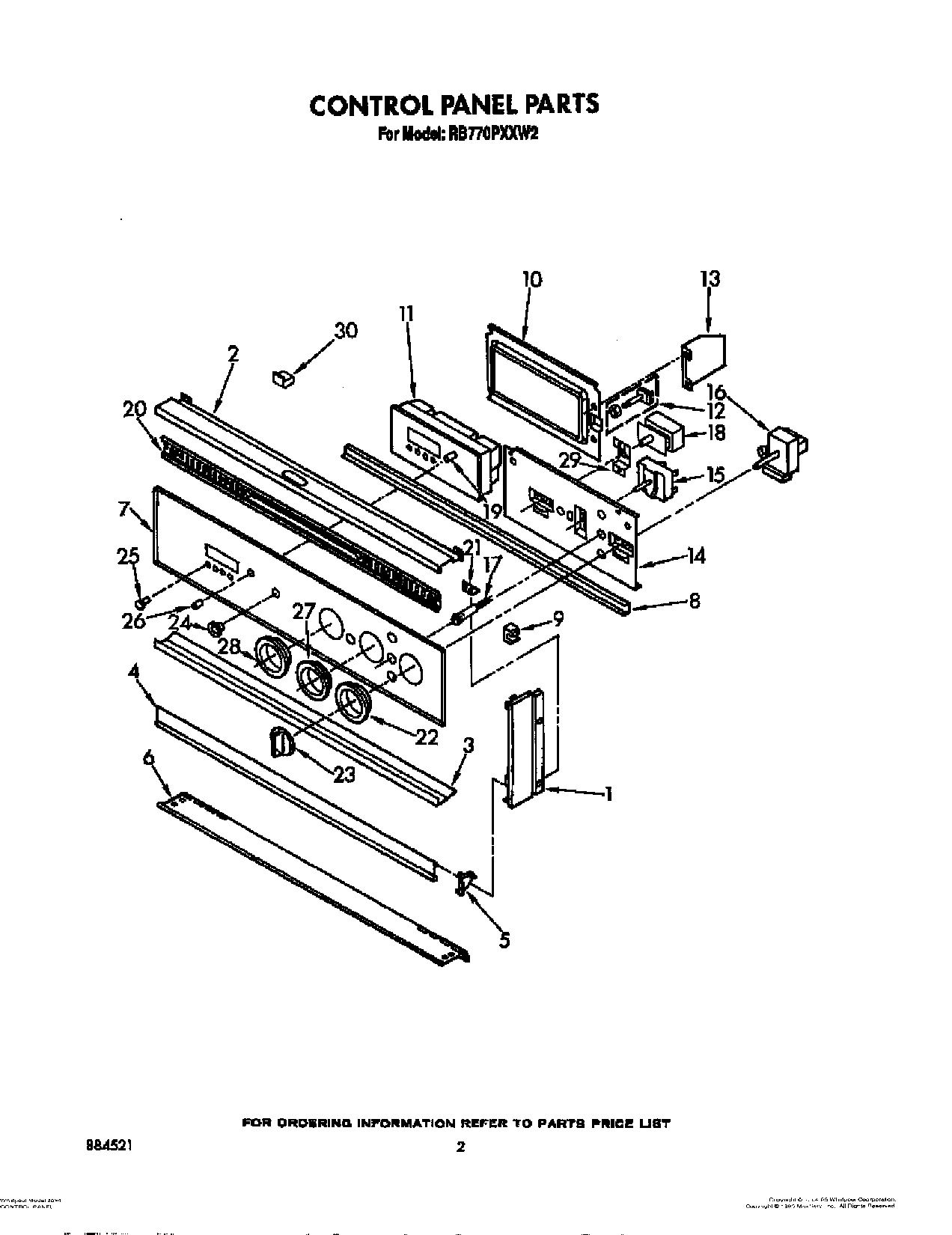

RB770PXXW2 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Use & Care Guide
	Repair Parts List
	Installation Instructions
	WPL LIT3185204
1	End Cap (Left Hand)
2	Trim, Top
3	Trim, Center
3	End Cap (Right Hand)
4	Door, Vent
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	Trim, Vent Door (Brite Aluminum, R.H.)
6	Trim, Bottom
6	Screw, 10-32 x 1/2
7	Glass, Control Panel
8	Rail, Mounting (Components)
9	Retainer, Glass (6)
10	Plate, Mounting (Clock)
11	Timer
12	White Model
13	Lockwasher
13	Shield, Heat
14	Plate, Mounting (Controls)
15	Switch, Selector
16	WP486579 Whirlpool Air Conditioner Screw
16	Thermostat, Oven
17	Indicator Light, Oven (Lower Oven)
18	Thermostat, Lower
18	Screw (2)
19	Shaft, Bit Generator
20	Insert, Vent
21	Bracket, Mounting
22	Escutcheon, Oven Thermostat
23	Knob, Control (2)
24	Bezel, Switch (White)
25	WPL 3149177
26	Knob, Bit Generat
27	Escutcheon, Selector Switch
28	Ecsutcheon, Oven Thermostat (Lower)
28	Screw,
29	Bracket, Mounting (Lower Thermostat)
29	WP90767 Whirlpool Screw
30	Screw
30	Support, Glass
