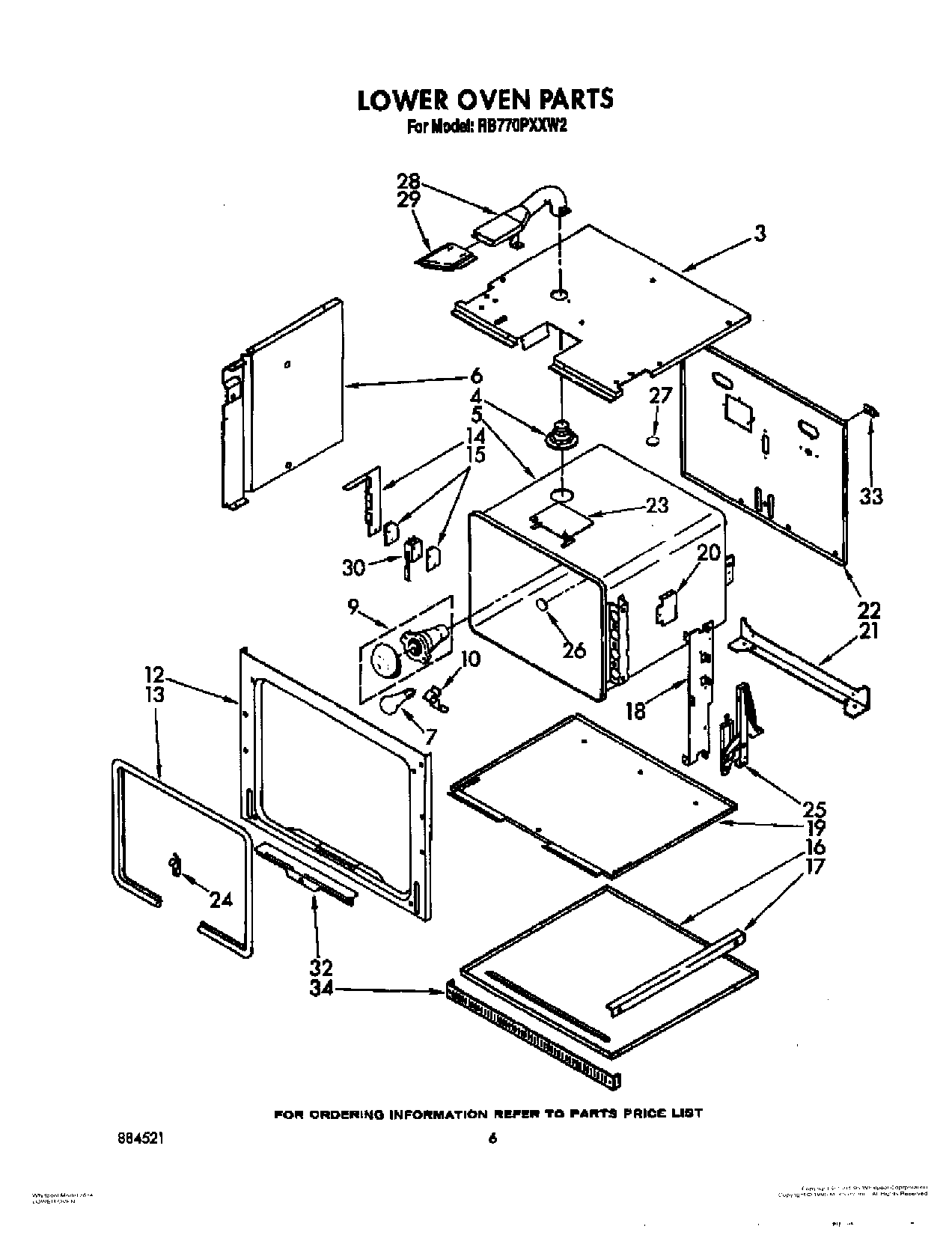

RB770PXXW2 04 – LOWER OVEN

Products

Position	Product
3	Top, Module
4	Tube, Vent
5	Liner, Oven
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
9	W11594027 Whirlpool Range Oven Light Socket
10	98005642 Whirlpool Clip
12	Screw (4)
12	Frame, Front
13	Seal, Door
14	Bracket, Switch
14	WP3177991 Whirlpool Screw
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
21	Support, Oven
22	Back, Module
23	Cover, Latch Mtg.
23	Screw (3)
24	Clip, Oven Seal
25	Screw (6)
25	Hinge, Door
26	Button, Plug
27	Button, Plug
28	Tube, Vent Male
28	WP90767 Whirlpool Screw
29	Tube, Vent
30	Screw (2)
30	Switch, Door
30	Nut (2)
32	Retainer, Seal
32	SCREW
33	Screw
33	Cover, Cap Tube
34	Insulation, Back
34	Insulation, Oven
34	Vent, Lower Trim (White)
