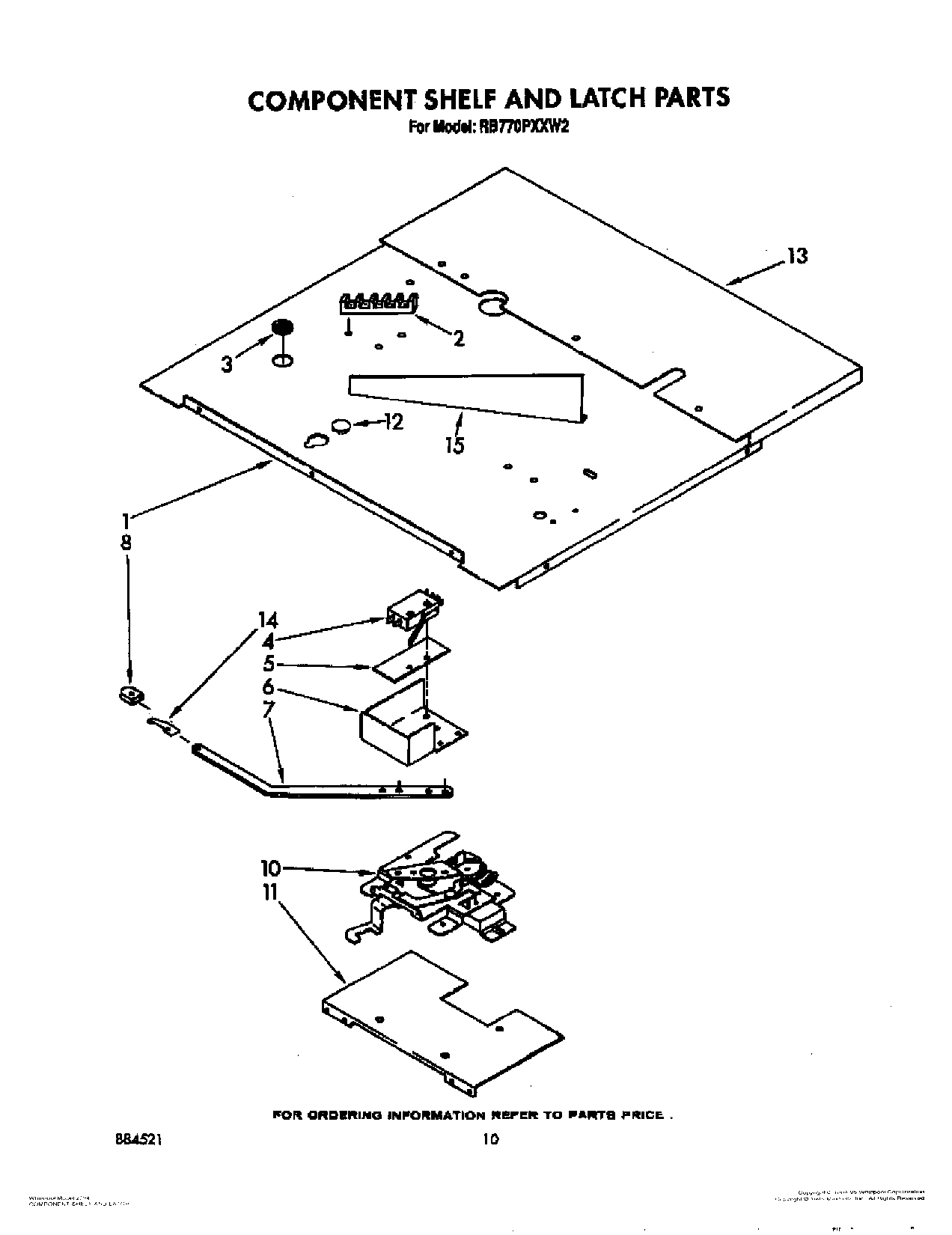

RB770PXXW2 07 – COMPONENT SHELF AND LATCHadmin2025-04-26T11:24:11+00:00RB770PXXW2 07 – COMPONENT SHELF AND LATCH
Products
| Position | Product |
|---|
| 1 | WP90767 Whirlpool Screw |
| 1 | Shelf, Component |
| 2 | WP8203546 Whirlpool Terminal Block |
| 2 | W10841059 Whirlpool Screw |
| 3 | Bushing |
| 4 | Switch, Latch |
| 4 | Screw |
| 5 | Insulator, Switch |
| 6 | Guard, Latch |
| 7 | Handle, Latch |
| 7 | Screw |
| 8 | Knob, Latch Handle |
| 10 | Latch, Mechanism |
| 11 | Plate, Mounting |
| 12 | Plug, Button |
| 13 | WP3177991 Whirlpool Screw |
| 13 | Extension, Shelf |
| 14 | WP488234 Whirlpool Air Conditioner Screw |
| 14 | Support, Latch |
| 15 | Baffle, Air |
