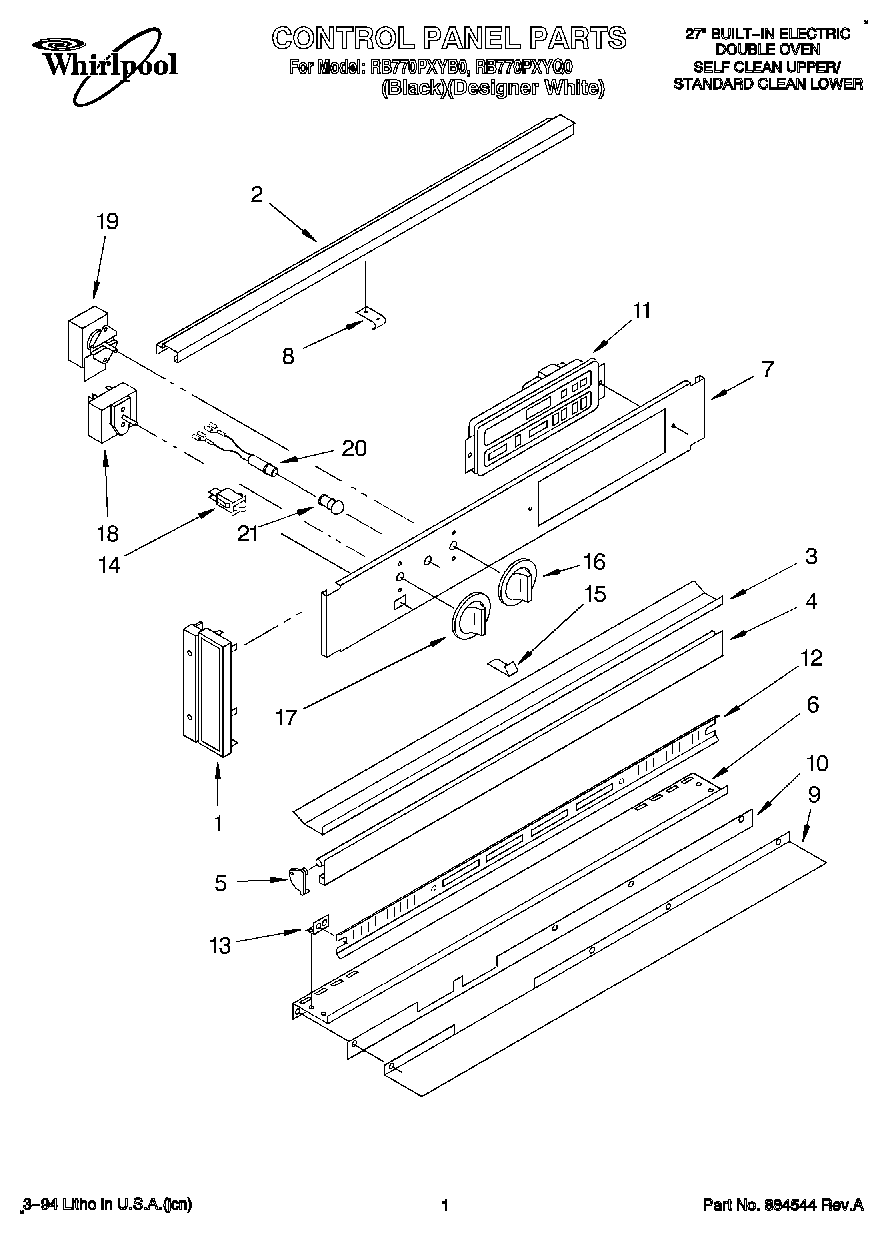

RB770PXYB0 01 – CONTROL PANEL, LITERATURE

Products

Position	Product
	Installation Instructions
	Use & Care Guide
	Tech Sheet
1	End Cap (Right Hand)
1	End Cap (Left Hand)
2	Trim, Top
3	Trim, Center (White Model)
3	Trim, Center (Black Model)
4	Door, Vent (Black Model)
4	Door, Vent (White Model)
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	End Trim, Vent (Left Side)
5	End Trim, Vent (Right Side)
6	Trim, Bottom (White Model)
6	Trim, Bottom (Black Model)
7	Control Panel (Black Model)
7	Control Panel (White Model)
8	Stiffener, Bracket
8	panel, top (screw, 10a x 3/8 (3))
9	Trim, Vent Upper (White Model)
9	Trim, Vent Upper (Black Model)
10	Screw
10	Shim
11	Control, Electronic (White)
11	Control, Electronic (Black)
12	Screw
12	Insert, Vent
13	Screw (3)
13	Bracket, Mounting
14	Switch, Rocker
14	Switch, Rocker (White)
15	Stiffner, Bracket
15	Screw
16	Knob, Thermostat
16	Knob, Temperature (Designer Mdl)
17	Knob, Selector (White/Almond/Gold)
17	Knob, Selector (Designer Mdl)
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector
19	Thermostat
19	Screw (2)
20	Light, Indicator (250V)
21	Lens, Amber
