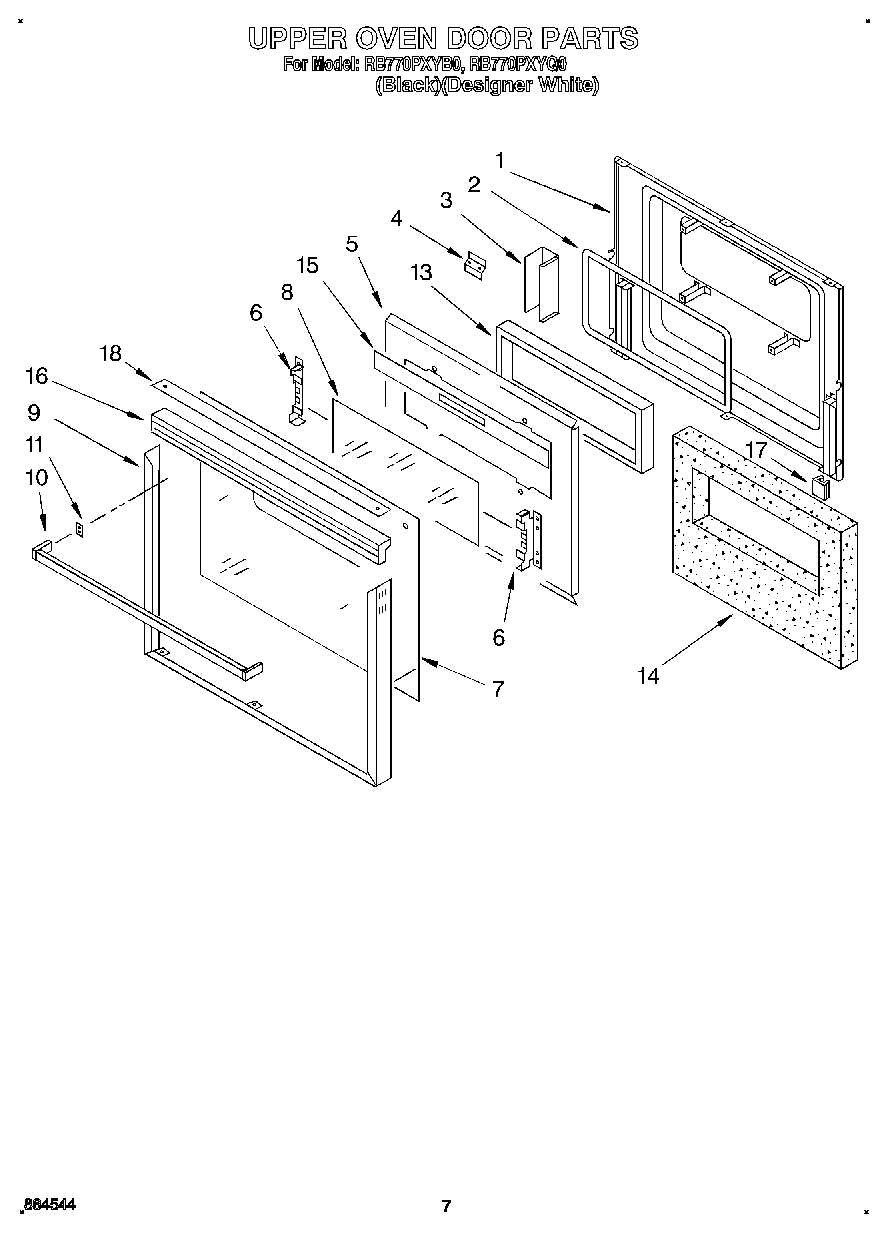

RB770PXYB0 04 – UPPER OVEN DOOR

RB770PXYB0 04 – UPPER OVEN DOOR

Written by

in

RB770PXYB0 04 – UPPER OVEN DOOR

Products

Position	Product
1	Vent, Lower Trim (Screw (2))
1	Screw, Black (2)
1	Liner, Door
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
6	WP90767 Whirlpool Screw
6	Bracket, Glass Mtg.
7	Glass, Door
7	Glass, Door (White Model)
8	Glass, Reflective
9	Frame, Door
10	Handle, Door
10	Handle, Door (White Model)
10	WP355515 Whirlpool Screw
11	Clip, Mtg (2)
13	Window Package
14	Insulation, Door
15	Shield, Door
16	Trim, Door
16	Trim, Door (White Model)
17	Bumper, Door Glass
18	Cap, Top (White Model Only)
