RB770PXYB0 08 – WIRING HARNESS

RB770PXYB0 08 – WIRING HARNESS

Written by

in

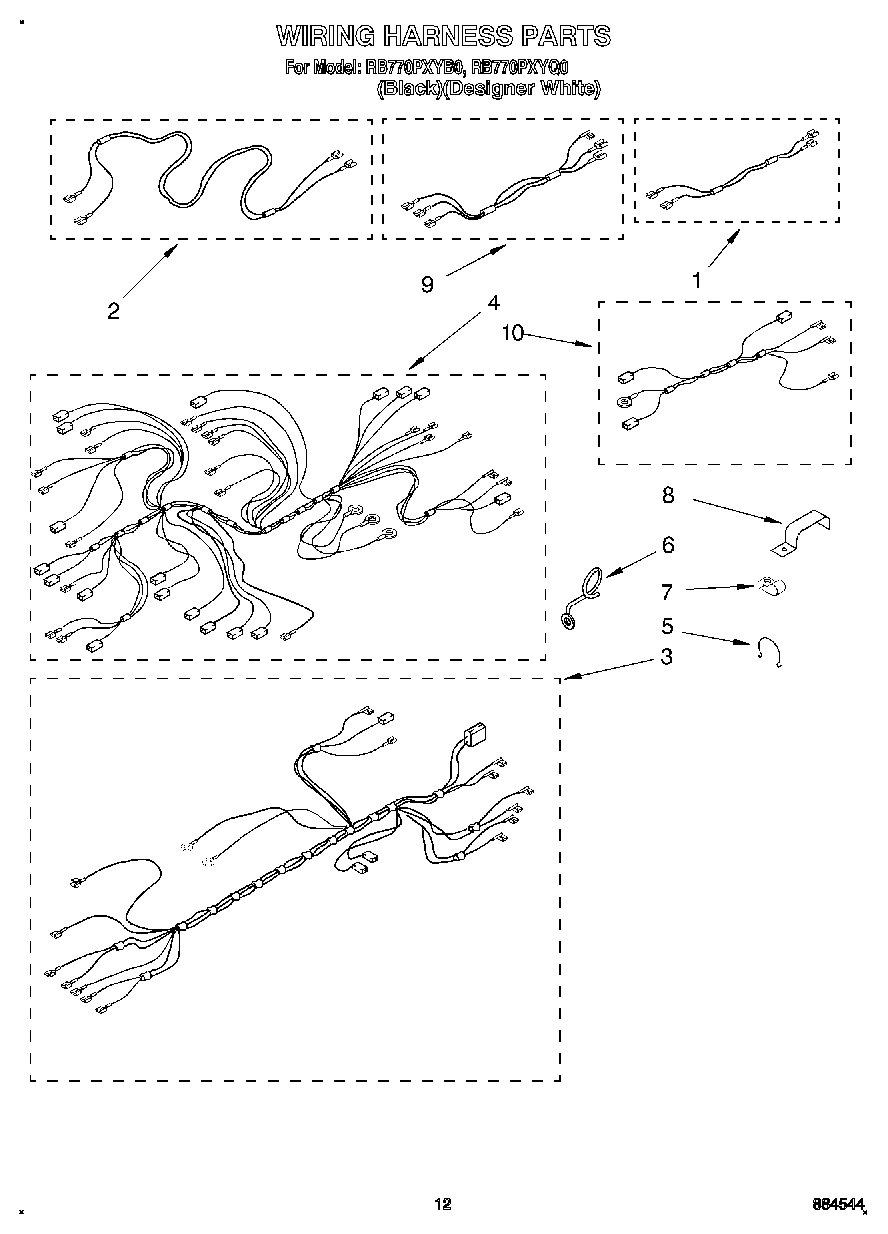

RB770PXYB0 08 – WIRING HARNESS

Products

PositionProduct
1Wiring Harness (Door Switch) (Upper)
2WP3177991 Whirlpool Screw
2Wiring Harness (Door Switch) Lower)
3Harness Wire (Lower Oven)
4Wiring Harness (Oven)
516515 Whirlpool Clip
7Standoff, Wire
8WP90767 Whirlpool Screw
87111P002-60 Whirlpool Clamp
9WP112432 Whirlpool Nut Assembly
9Wiring Harness (Latch Assembly)
10Harness, Wire (Blower Fan)
