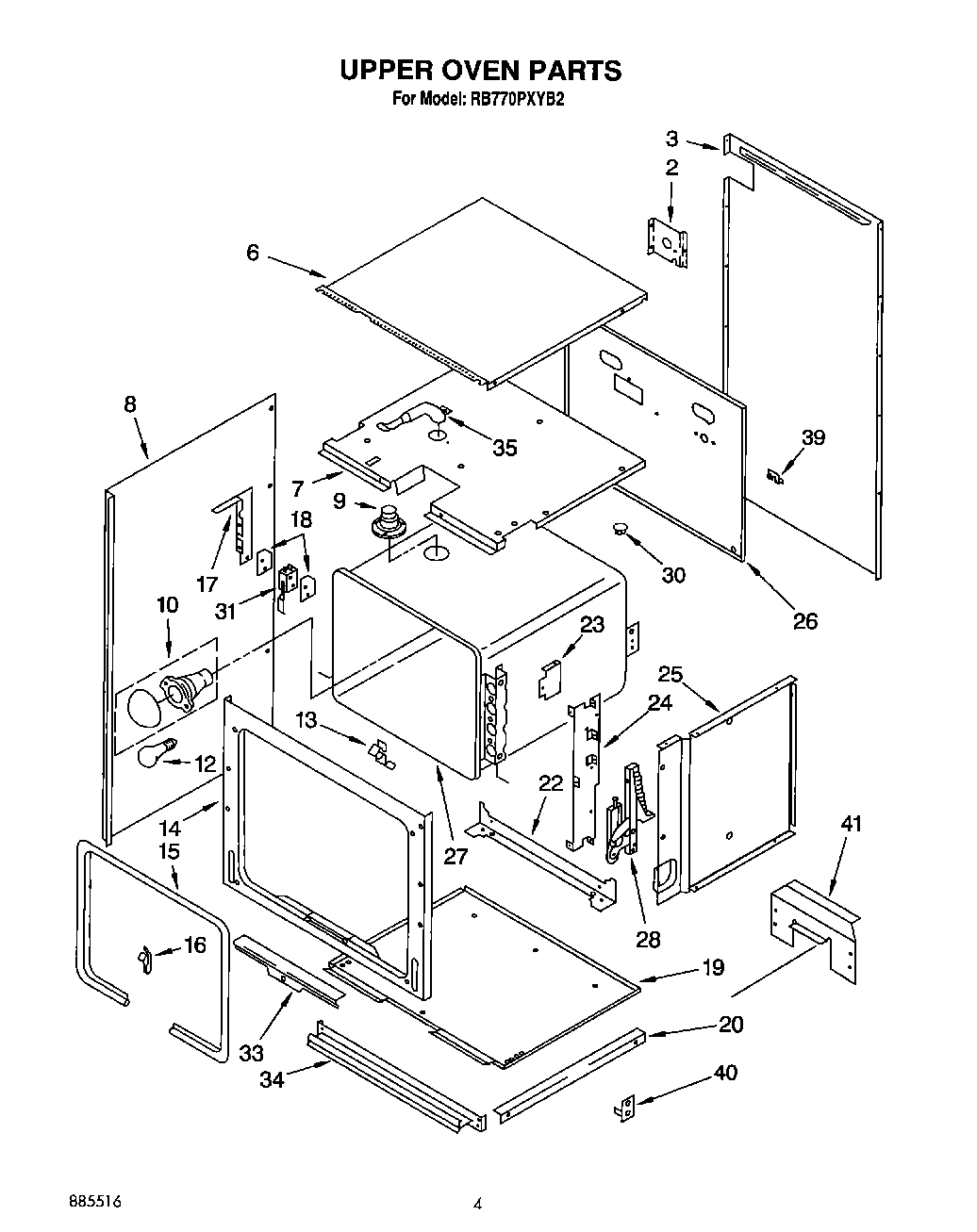

RB770PXYB2 03 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Screw (3)
9	Tube, Vent
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	WP90767 Whirlpool Screw
26	Back, Module
27	Liner, Oven
28	Screw (6)
28	Hinge, Door
30	Button, Plug
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	Retainer, Seal
33	SCREW
34	Vent, Middle Trim (Black)
34	Vent, Lower Trim (Screw (4))
34	Vent, Middle Trim (Brushed Chrome)
34	Vent, Lower Trim (Screw (2))
35	Screw
35	Tube, Vent
39	Cover, Cap Tube
39	Screw
40	Screw
40	Insert, Middle Trim
41	WP3177991 Whirlpool Screw
41	Insulation, Oven
41	Insulation, Back
41	WPL 3183752
