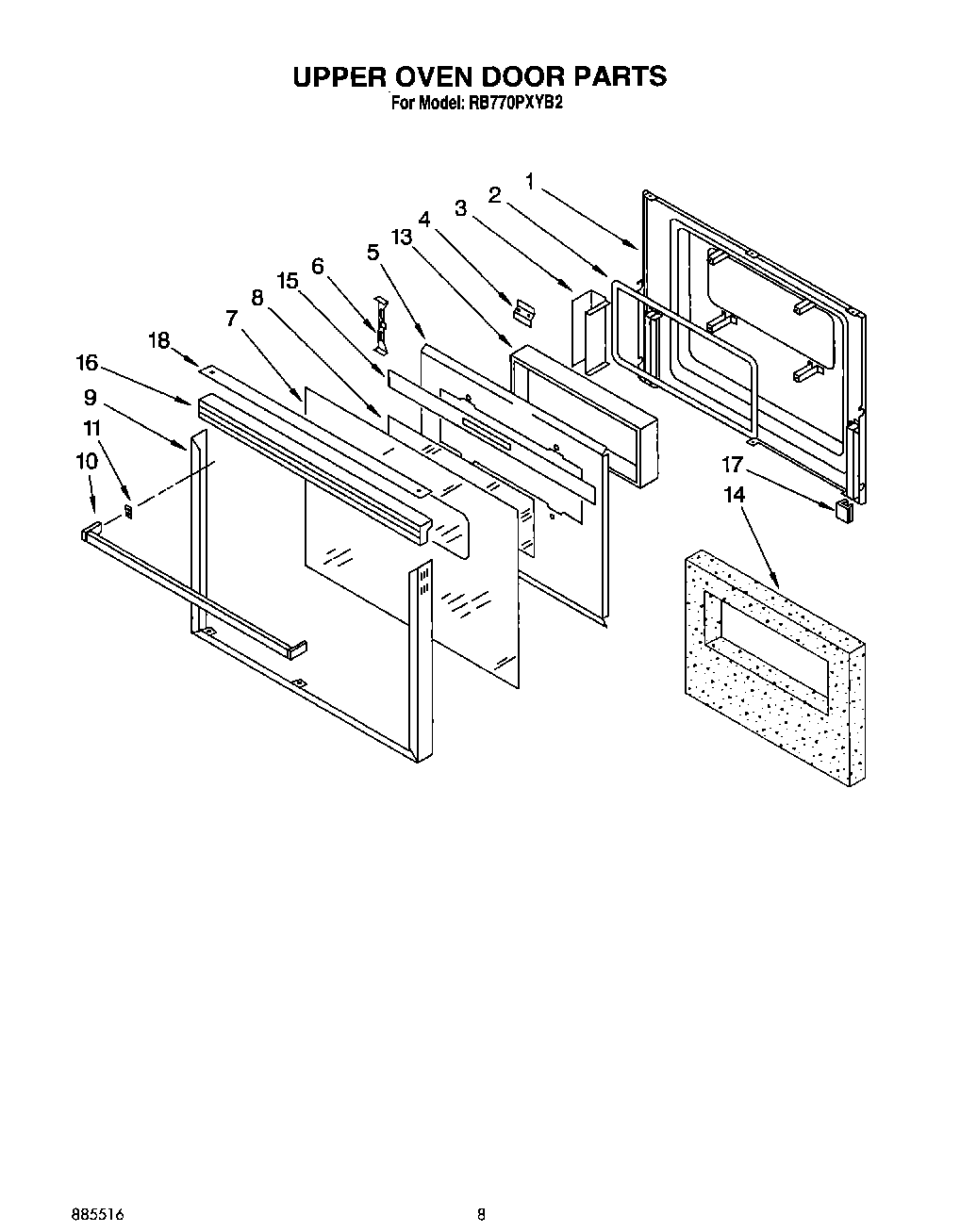

RB770PXYB2 05 – UPPER OVEN DOOR

Products

PositionProduct
1Vent, Lower Trim (Screw (2))
1Screw, Black (2)
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
6WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door
7Glass, Door (White Model)
8Glass, Reflective
9Frame, Door
10Handle, Door
10Handle, Door (White Model)
10WP355515 Whirlpool Screw
11Clip, Mtg (2)
13Window Package
14Insulation, Door
15Shield, Door
16Trim, Door
16Trim, Door (White Model)
17Bumper, Door Glass
18Cap, Top (White Model Only)
