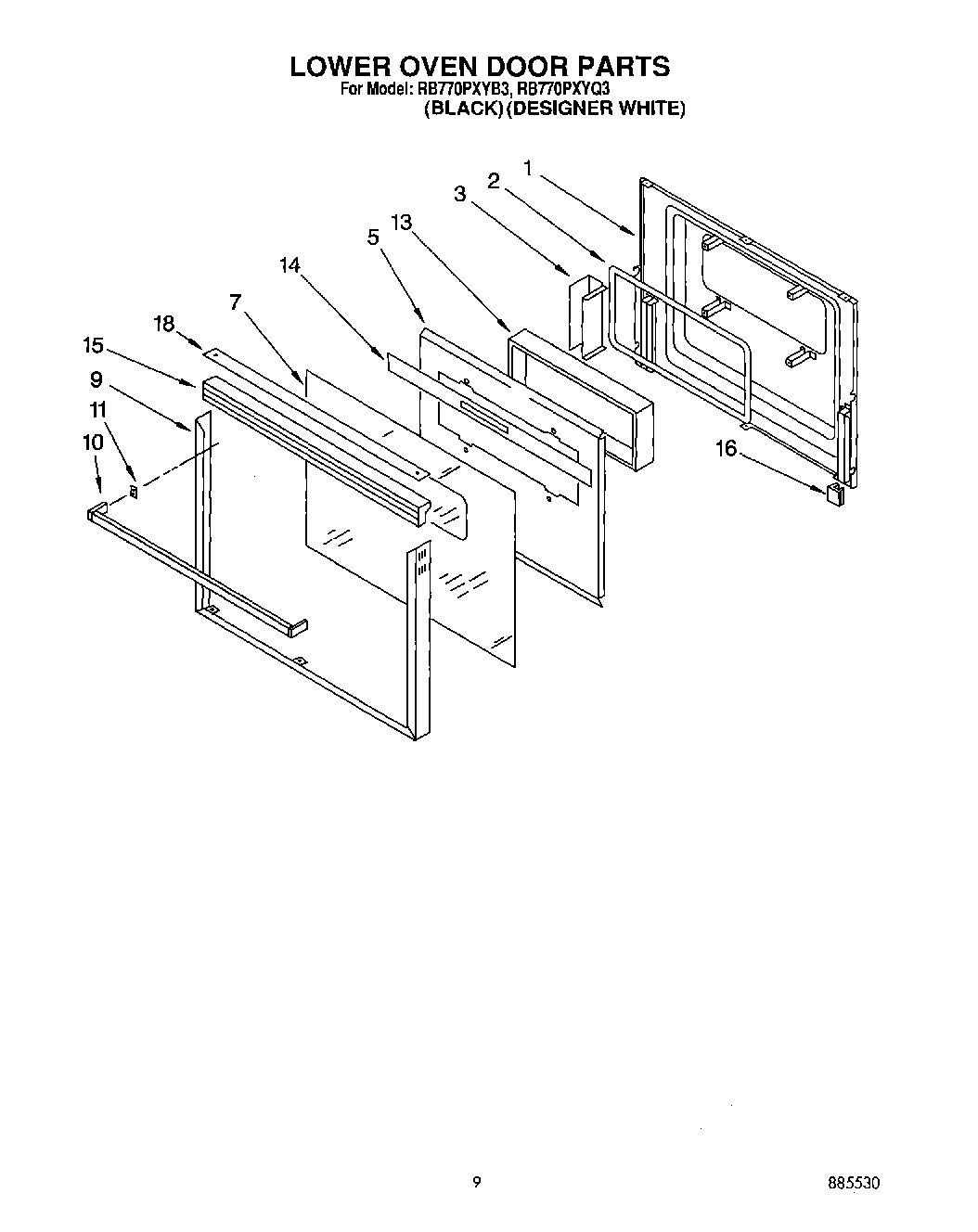

RB770PXYB3 05 – LOWER OVEN DOOR

RB770PXYB3 05 – LOWER OVEN DOOR

Written by

in

RB770PXYB3 05 – LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw (5)
1	Screw, Black (2)
2	Seal, Window
3	Spacer, Window
5	Screw
5	Insulation, Retainer
7	Glass, Door (White Model)
7	Glass, Door
9	Frame, Door
10	WP355515 Whirlpool Screw
10	Handle, Door
10	Handle, Door (White Model)
11	Clip, Mtg (2)
13	Window Package
14	Shield, Door
15	Trim, Door (White Model)
15	Trim, Door
16	Bumper, Door Glass
18	Cap, Top (White Model Only)
