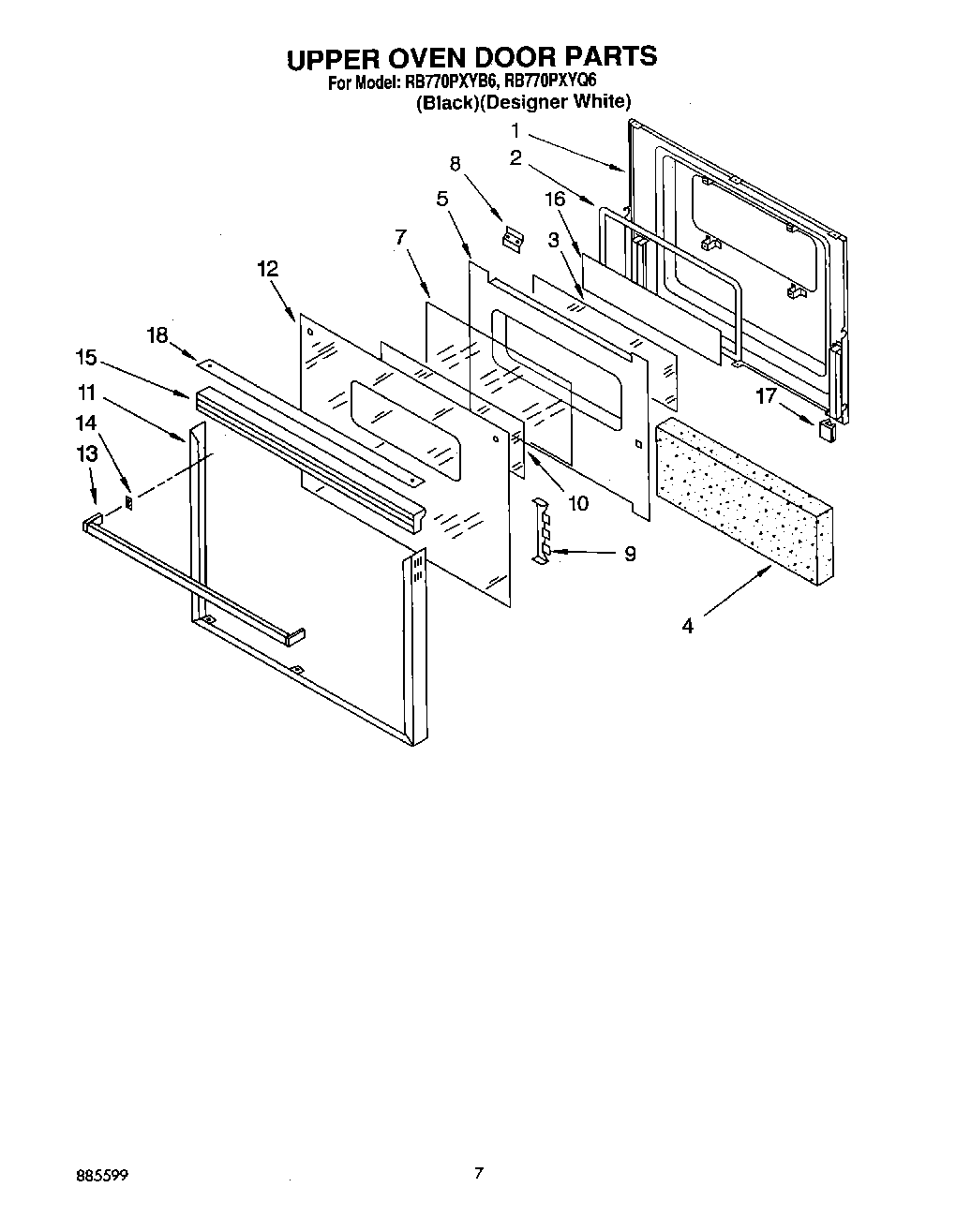

RB770PXYB6 04 – UPPER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Screw
5	Retainer, Insulation
7	Glass, Reflective
8	Latch, Strike
9	Retainer, Glass
10	Screw
10	Glass, Clear
11	Frame, Door
12	Glass, Door (White Model)
12	Glass, Door
13	Handle, Door (White Model)
13	Handle, Door
13	WP355515 Whirlpool Screw
14	Clip, Mtg (2)
15	Trim, Door (Black Model)
15	Trim, Door (White Model)
16	Foil, Adhesive
17	Bumper, Door Glass
18	Cap, Top (White Model Only)
