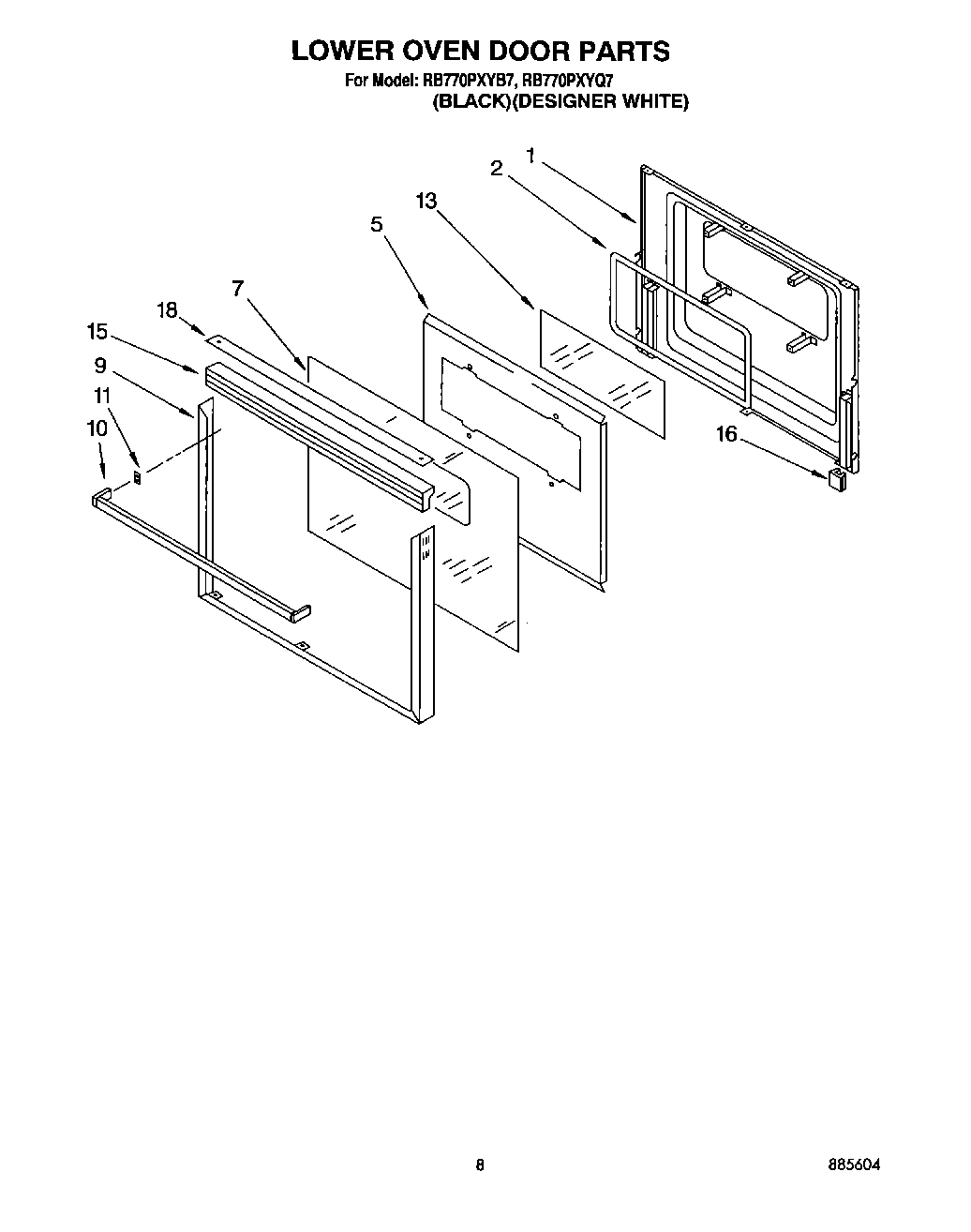

RB770PXYB7 05 – LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
2	Seal, Window
5	Retainer, Insulation
7	Glass, Door (White Model)
7	Glass, Door
9	Frame, Door
10	WP355515 Whirlpool Screw
10	Screw
10	Handle, Door
10	Handle, Door (White Model)
10	Vent, Lower Trim (Screw (2))
11	Clip, Mtg (2)
13	Glass, Clear
15	Trim, Door (White Model)
15	Trim, Door (Black Model)
16	Bumper, Door Glass
18	Cap, Top (White Model Only)
