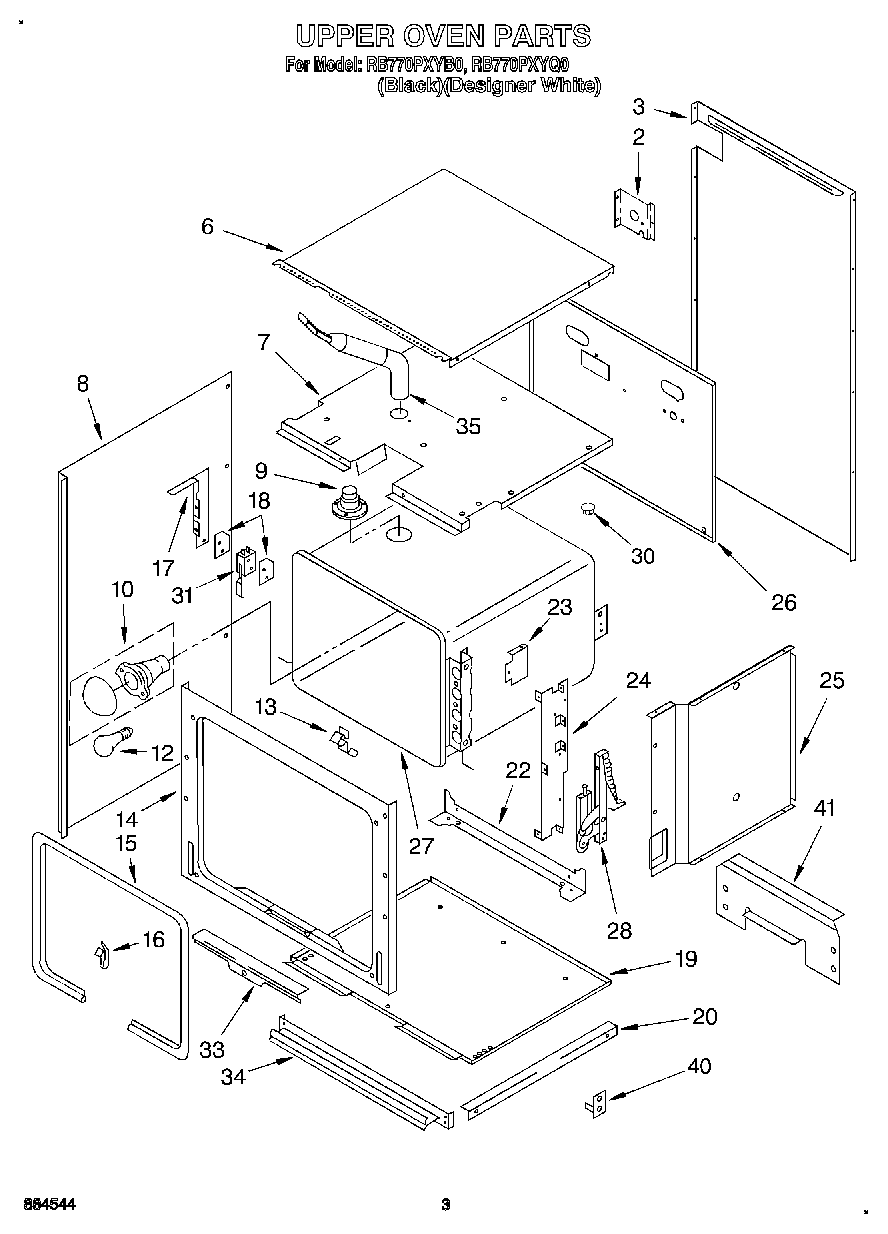

RB770PXYQ0 02 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
26	WP90767 Whirlpool Screw
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
30	Button, Plug
31	Nut (2)
31	Switch, Door
31	Screw (2)
33	SCREW
33	Retainer, Seal
34	Vent, Middle Trim (Brushed Chrome)
34	Vent, Middle Trim (Black)
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
35	Tube, Vent
40	Screw (2)
40	Insert, Middle Trim
40	Screw
41	Insulation, Back
41	Insulation, Oven
41	WPL 3183752
41	WP3177991 Whirlpool Screw
