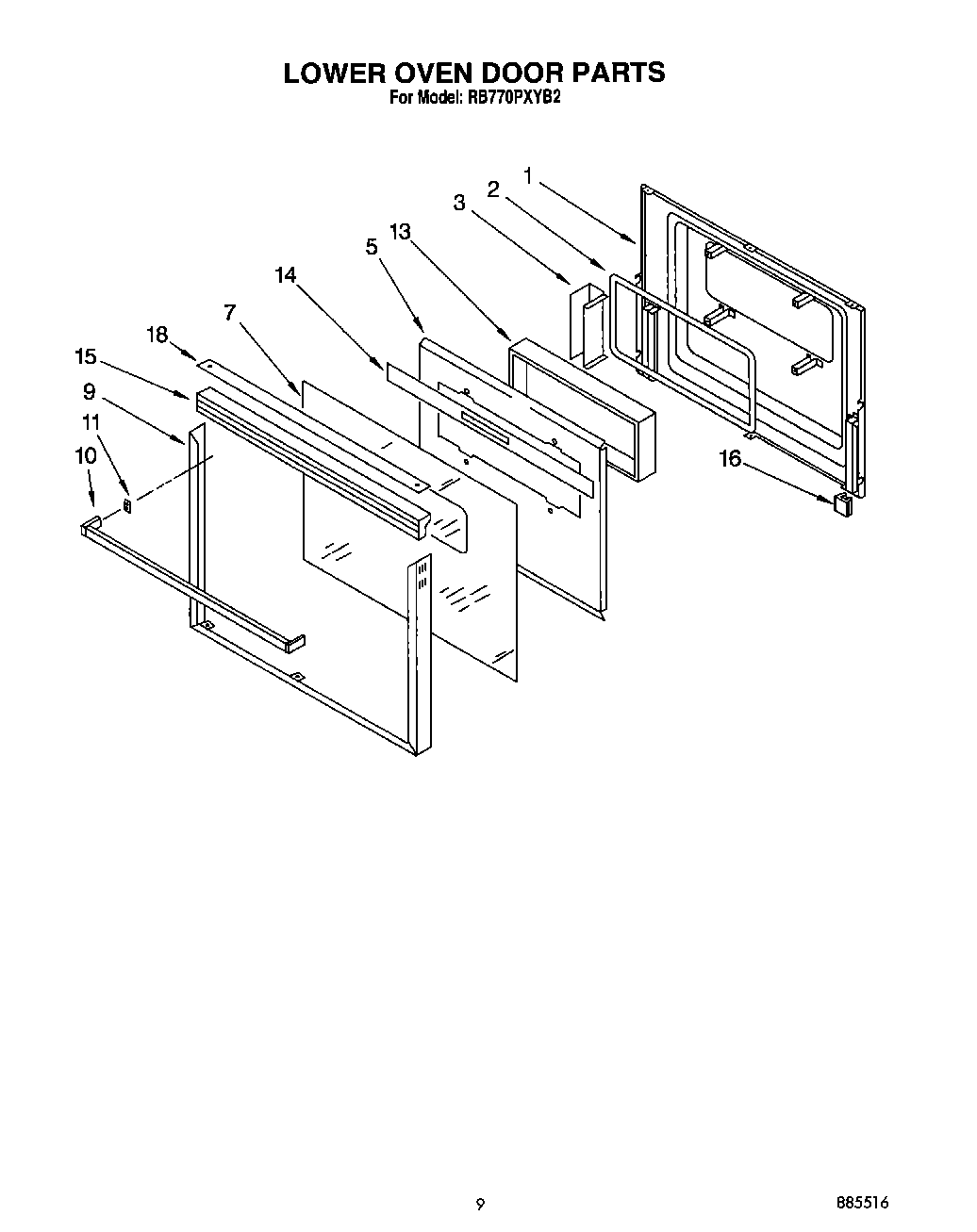

RB770PXYQ2 06 – LOWER OVEN DOOR

Products

PositionProduct
1Liner, Door
1Vent, Lower Trim (Screw (2))
1Screw, Black (2)
2Seal, Window
3Spacer, Window
5WP90767 Whirlpool Screw
5Insulation, Retainer
7Glass, Door
7Glass, Door (White Model)
9Frame, Door
10Handle, Door (White Model)
10WP355515 Whirlpool Screw
10Handle, Door
11Clip, Mtg (2)
13Window Package
14Shield, Door
15Trim, Door
15Trim, Door (White Model)
16Bumper, Door Glass
18Cap, Top (White Model Only)
