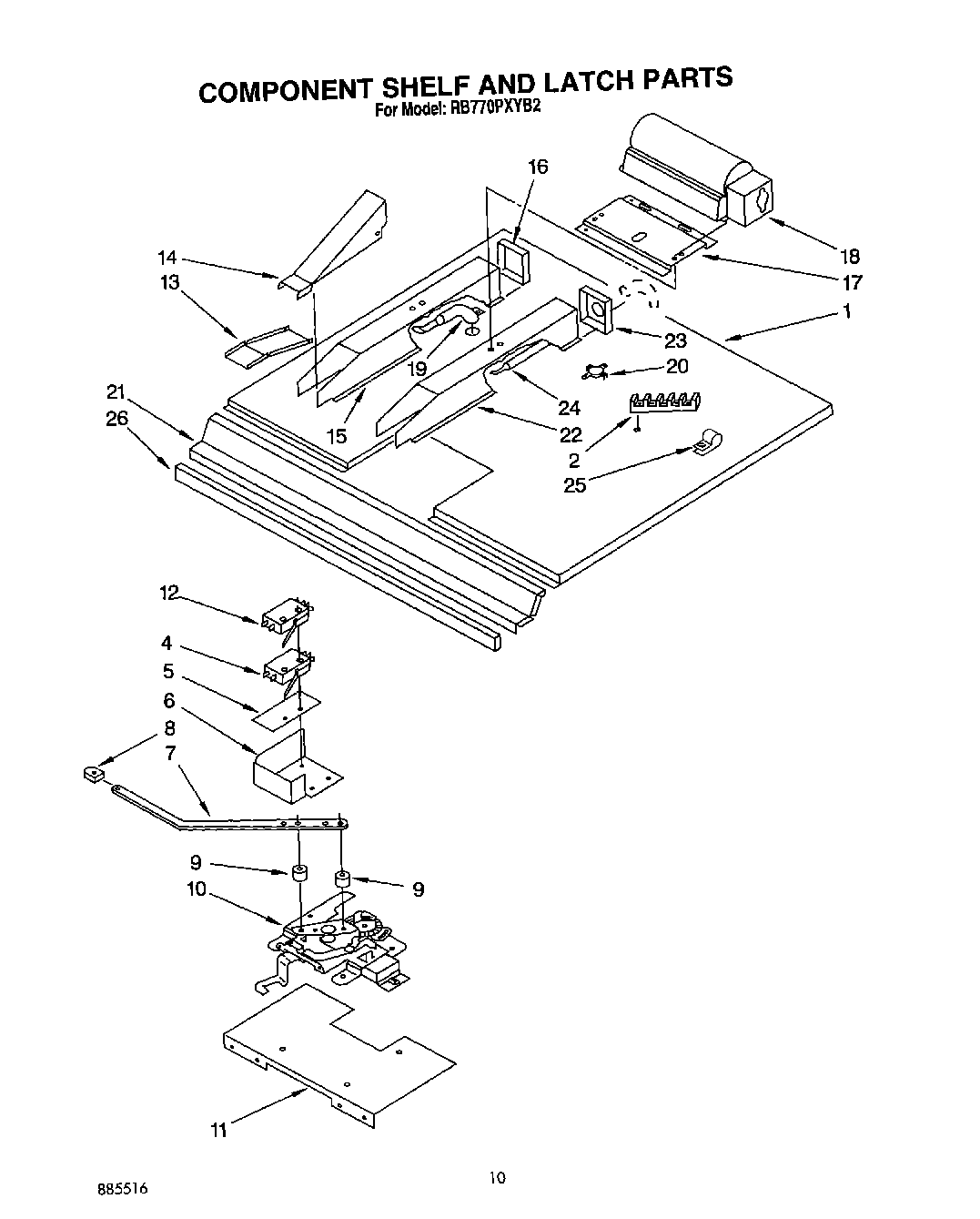

RB770PXYQ2 07 – COMPONENT SHELF AND LATCH

RB770PXYQ2 07 – COMPONENT SHELF AND LATCH

Written by

in

RB770PXYQ2 07 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Module, Top
2Screw (10-12 x .875)
2WP8203546 Whirlpool Terminal Block
4Switch, Latch
4Screw (2)
5Insulator, Switch
6Guard, Latch
7Handle, Latch
8Screw
8Knob, Latch Handle
9Spacer, Latch Handle (2)
9Screw (2)
10Latch, Mechanism
11Plate, Mounting
12Safety Switch
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Box, Vent
16End, Vent Box
17Bracket, Mounting
18Blower, fan
19Screw (3)
19Tube, Vent
20SPST Thermostat
21Shield, Heat
21WP3177991 Whirlpool Screw
22Box, Vent
23End, Box Vent
24Tube, Vent Lower Oven
24WP90767 Whirlpool Screw
25Clamp, Tube
26Seal, foam
