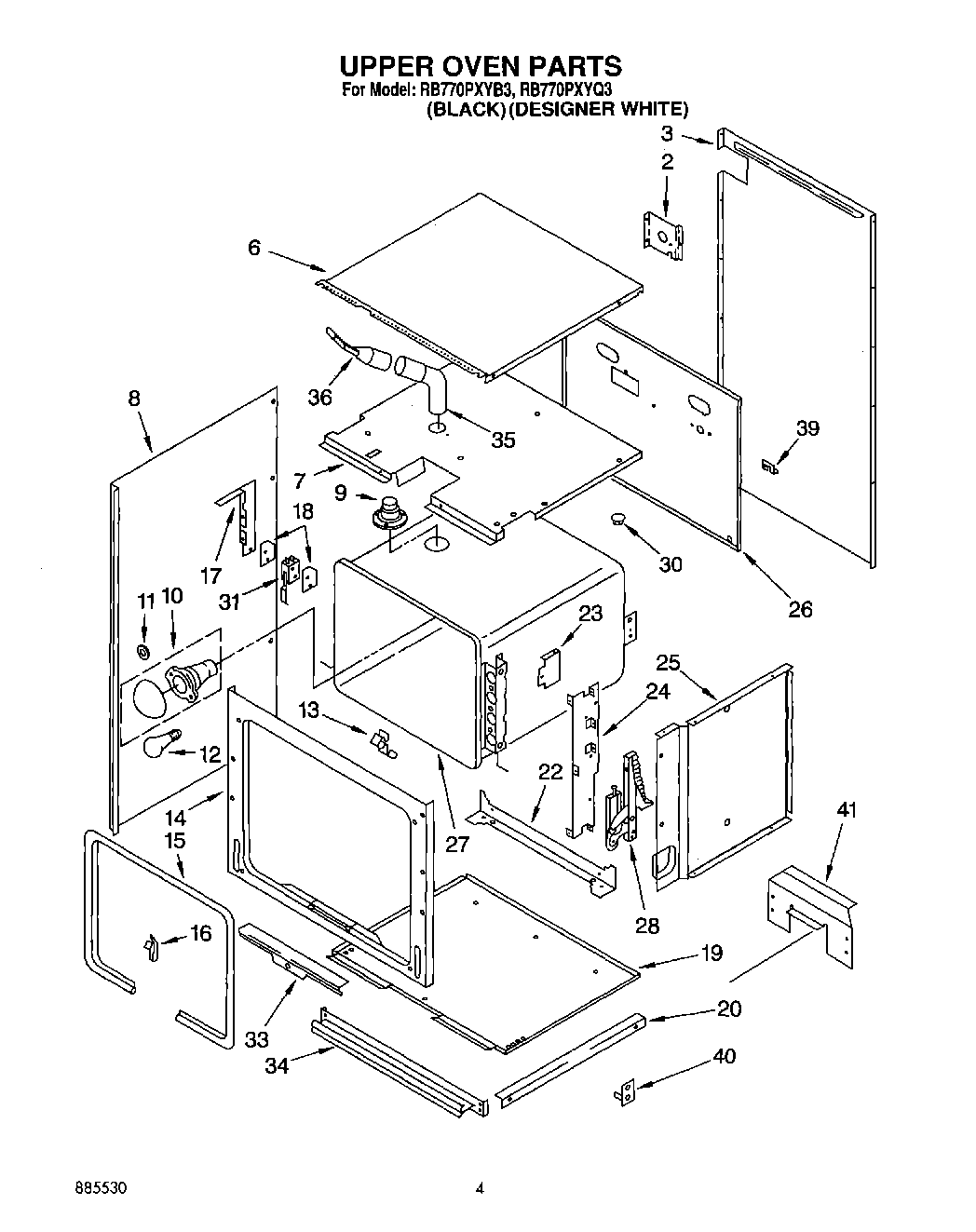

RB770PXYQ3 02 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Screw
26	Back, Module
27	Liner, Oven
28	Screw (6)
28	Hinge, Door
30	Button, Plug
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	SCREW
33	Retainer, Seal
34	Vent, Lower Trim (Screw (2))
34	Vent, Middle Trim (Black)
34	Vent, Lower Trim (Screw (4))
34	Vent, Middle Trim (Brushed Chrome)
35	Vent, Tube (Upper, Female)
35	Screw
36	Tube, Vent (Male)
39	Screw
39	Cover, Cap Tube
40	Screw
40	Insert, Middle Trim
41	WP3177991 Whirlpool Screw
41	Insulation, Back
41	Insulation, Oven
41	WPL 3183752
