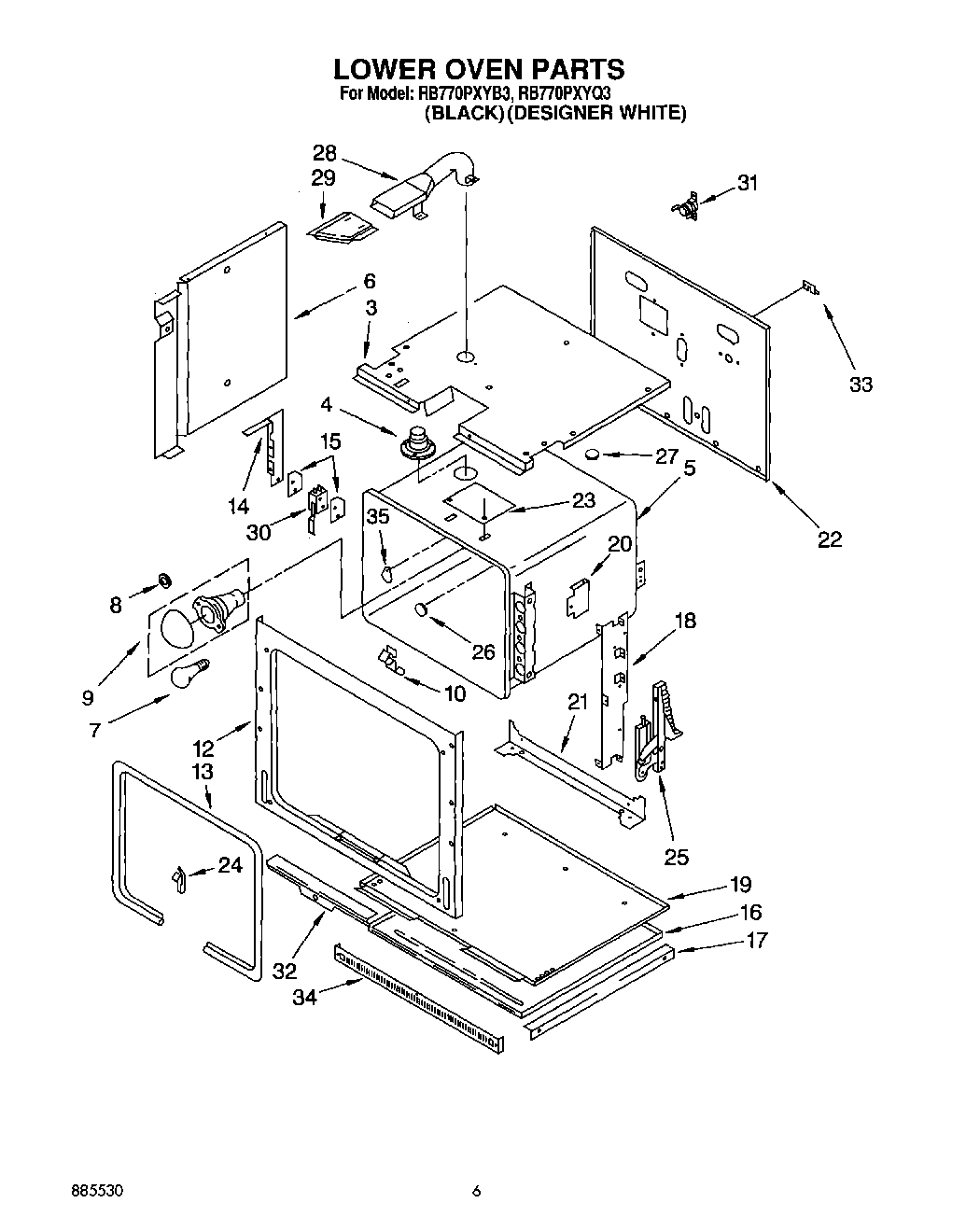

RB770PXYQ3 03 – LOWER OVEN

Products

Position	Product
3	Module, Top
4	Tube, Vent
5	Liner, Oven
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
8	WP3184533 Whirlpool Range Light Lens Gasket
9	W11594027 Whirlpool Range Oven Light Socket
10	98005642 Whirlpool Clip
12	Screw (4)
12	Frame, Front
13	Seal, Door
14	WP3177991 Whirlpool Screw
14	Bracket, Switch
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
21	Support, Oven
22	Back, Module
23	Screw (3)
23	Cover, Latch Mtg.
24	Clip, Oven Seal
25	Screw (6)
25	Hinge, Door
26	Button, Plug
27	Button, Plug
28	Tube, Vent Male
28	Screw
29	Tube, Vent Female
30	Nut (2)
30	Screw (2)
30	Switch, Door
31	Thermostat
32	SCREW
32	Retainer, Seal
33	Screw
33	Cover, Cap Tube
34	Vent, Lower Trim (Black)
34	Trim, Lower Vent (White Model)
35	Insulation, Oven
35	Insulation, Back
35	Plate, Cover
