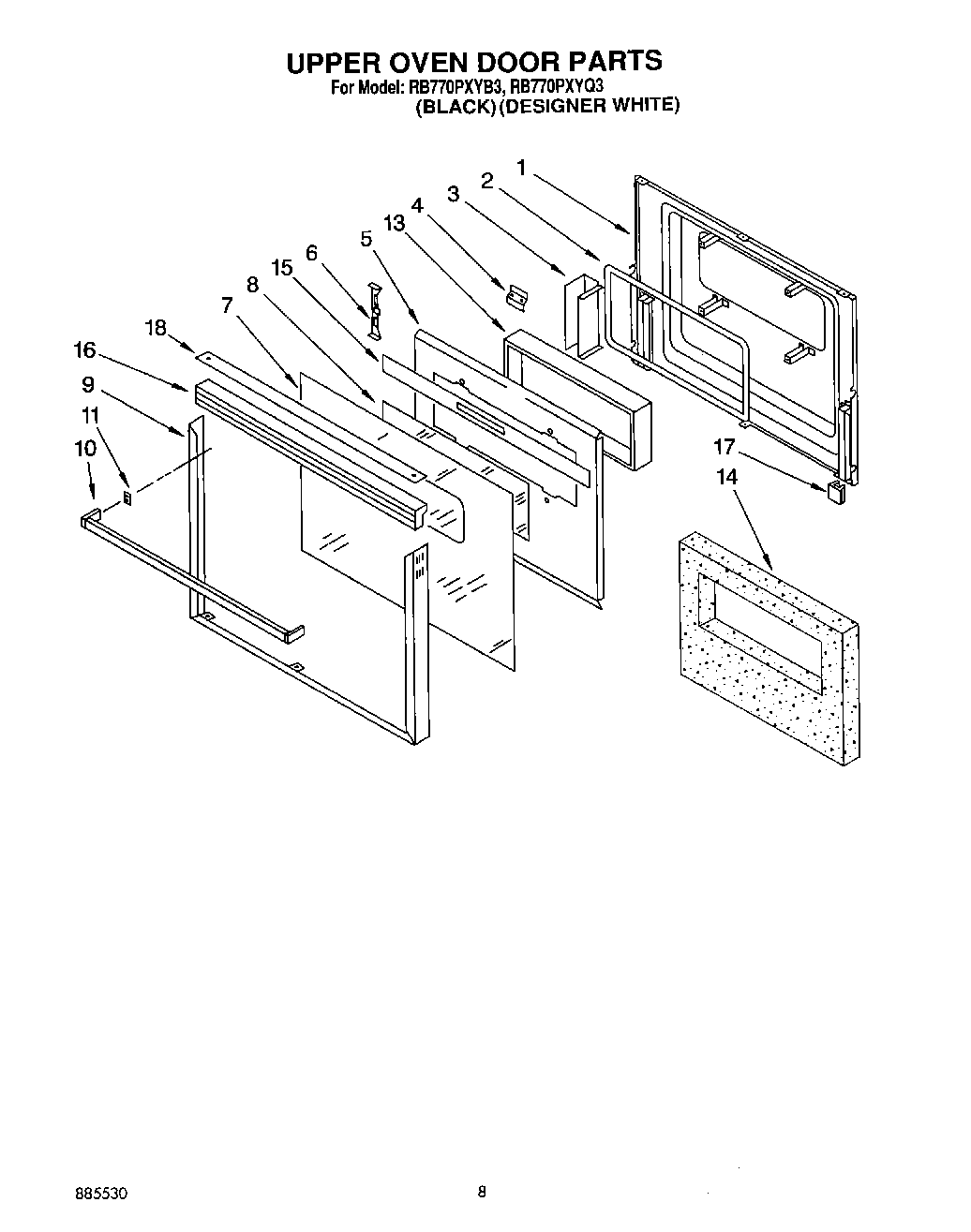

RB770PXYQ3 04 – UPPER OVEN DOOR

Products

PositionProduct
1Screw (5)
1Screw, Black (2)
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
6Screw
6Bracket, Glass Mtg.
7Glass, Door
7Glass, Door (White Model)
8Glass, Reflective
9Frame, Door
10Handle, Door (White Model)
10Handle, Door
10WP355515 Whirlpool Screw
11Clip, Mtg (2)
13Window Package
14Insulation, Door
15Shield, Door
16Trim, Door
16Trim, Door (White Model)
17Bumper, Door Glass
18Cap, Top (White Model Only)
