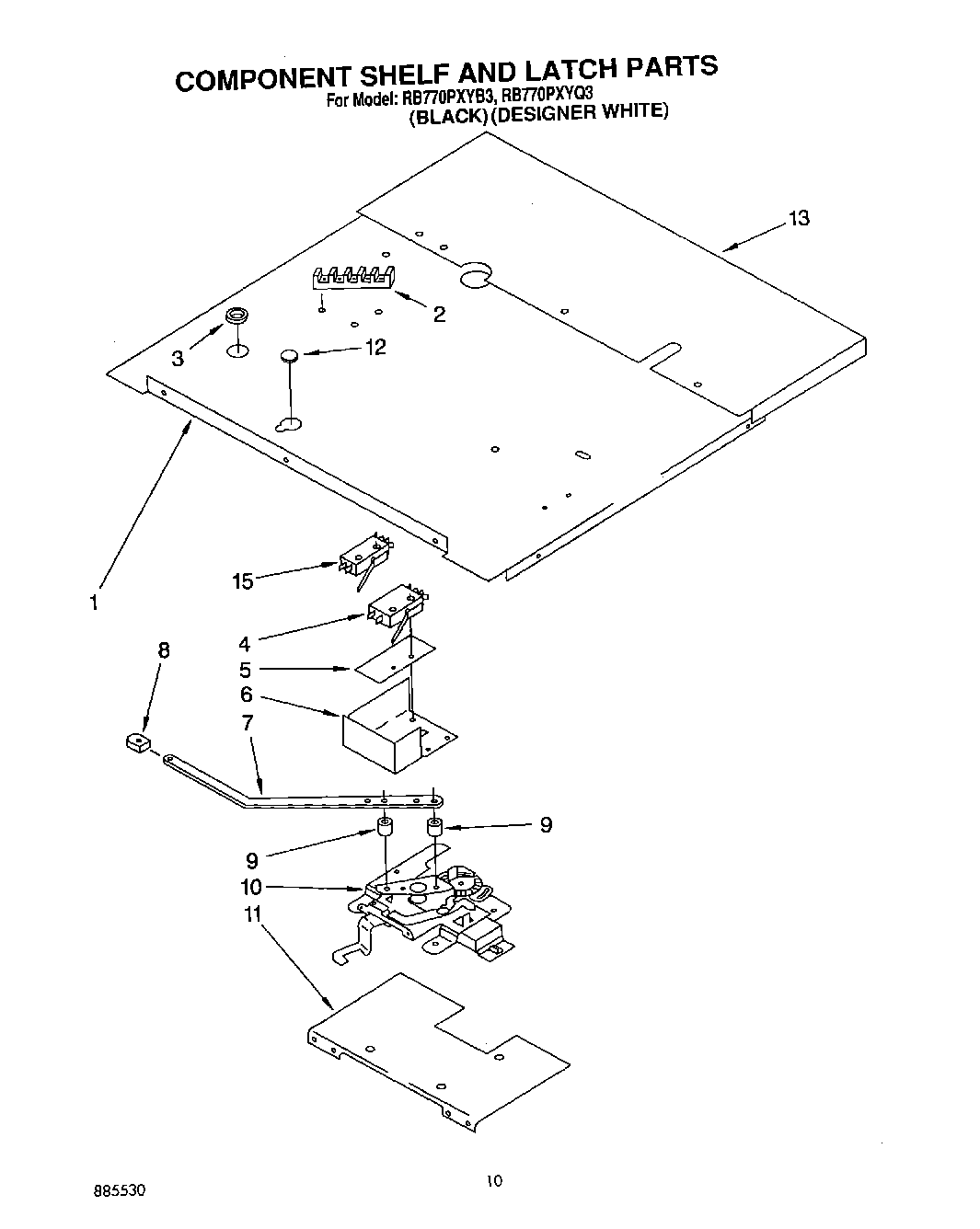

RB770PXYQ3 06 – COMPONENT SHELF AND LATCH

RB770PXYQ3 06 – COMPONENT SHELF AND LATCH

Written by

in

RB770PXYQ3 06 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Screw
1Shelf, Component
2WP8203546 Whirlpool Terminal Block
2W10841059 Whirlpool Screw
3Bushing
4Safety Switch
4Screw
5Insulator, Switch
6Screw,
6Guard, Latch
7Handle, Latch
8Knob, Latch Handle
8Screw
9Spacer, Latch Handle (2)
9Screw (2)
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13Extension, Shelf
13WP488234 Whirlpool Air Conditioner Screw
13WP3177991 Whirlpool Screw
15Switch, Latch
