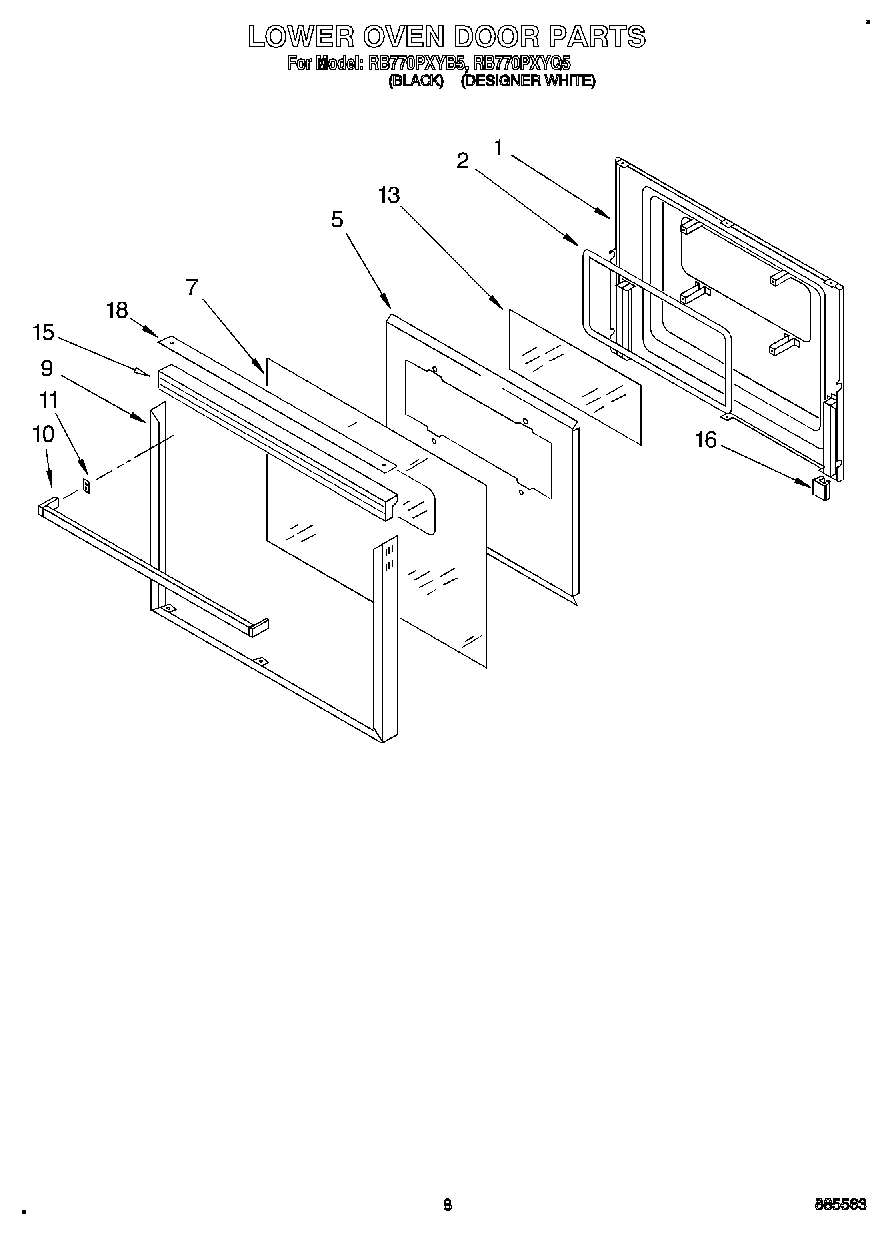

RB770PXYQ5 05 – LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw (5)
1	Screw, Black (2)
2	Seal, Window
5	Screw
5	Retainer, Insulation
7	Glass, Door
7	Glass, Door (White Model)
9	Frame, Door
10	Handle, Door (White Model)
10	Handle, Door
10	Screw
10	WP355515 Whirlpool Screw
10	Vent, Lower Trim (Screw (2))
11	Clip, Mtg (2)
13	Glass, Clear
15	Trim, Door (Black Model)
15	Trim, Door (White Model)
16	Bumper, Door Glass
18	Cap, Top (White Model Only)
