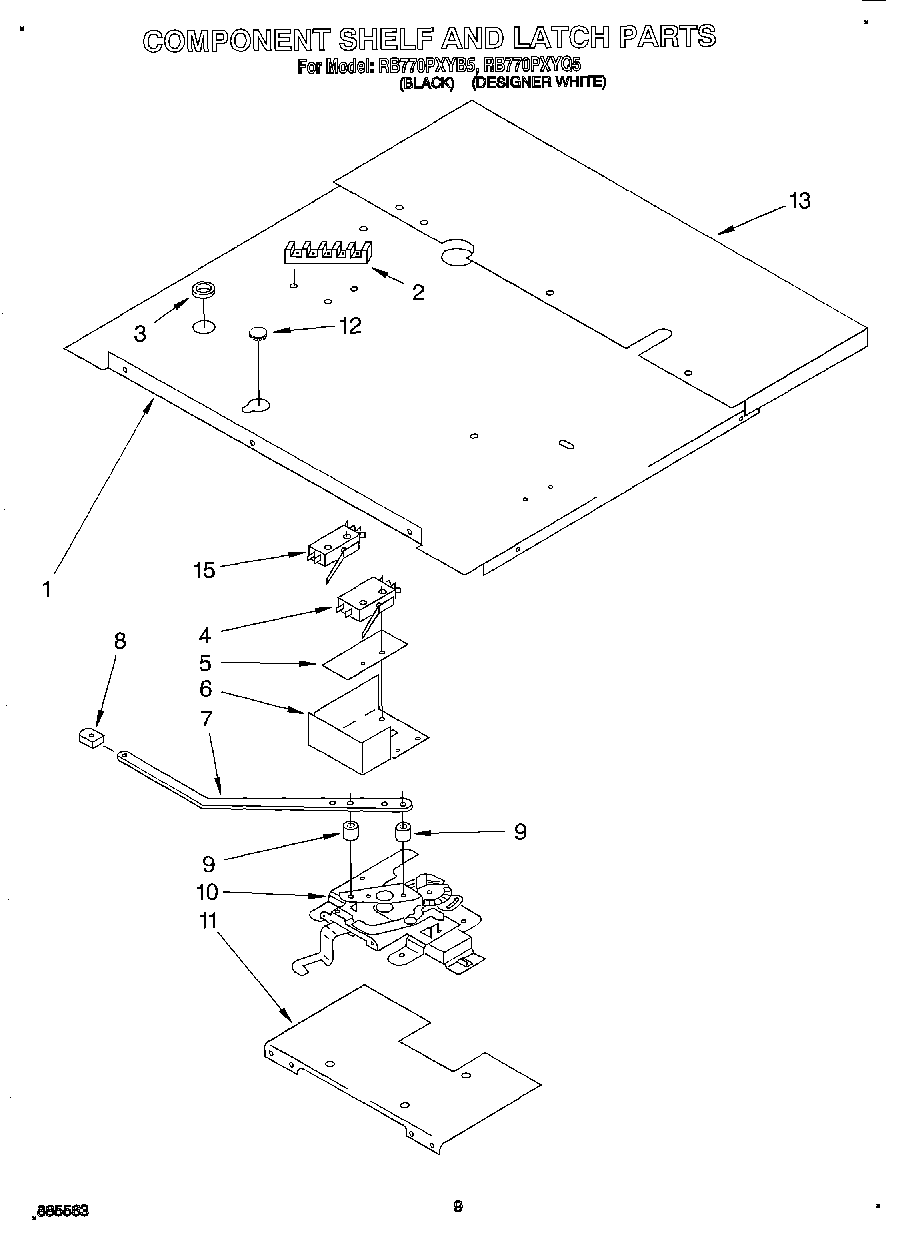

RB770PXYQ5 06 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Shelf, Component
1Screw
2Screw (10-12 x .875)
2WP8203546 Whirlpool Terminal Block
3Bushing
4Safety Switch
4Screw
5Insulator, Switch
6Guard, Latch
6Screw,
7Handle, Latch
8Screw
8Knob, Latch Handle
9Spacer, Latch Handle (2)
9Screw (2)
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13Extension, Shelf
13WP488234 Whirlpool Air Conditioner Screw
13WP3177991 Whirlpool Screw
15Switch, Latch
