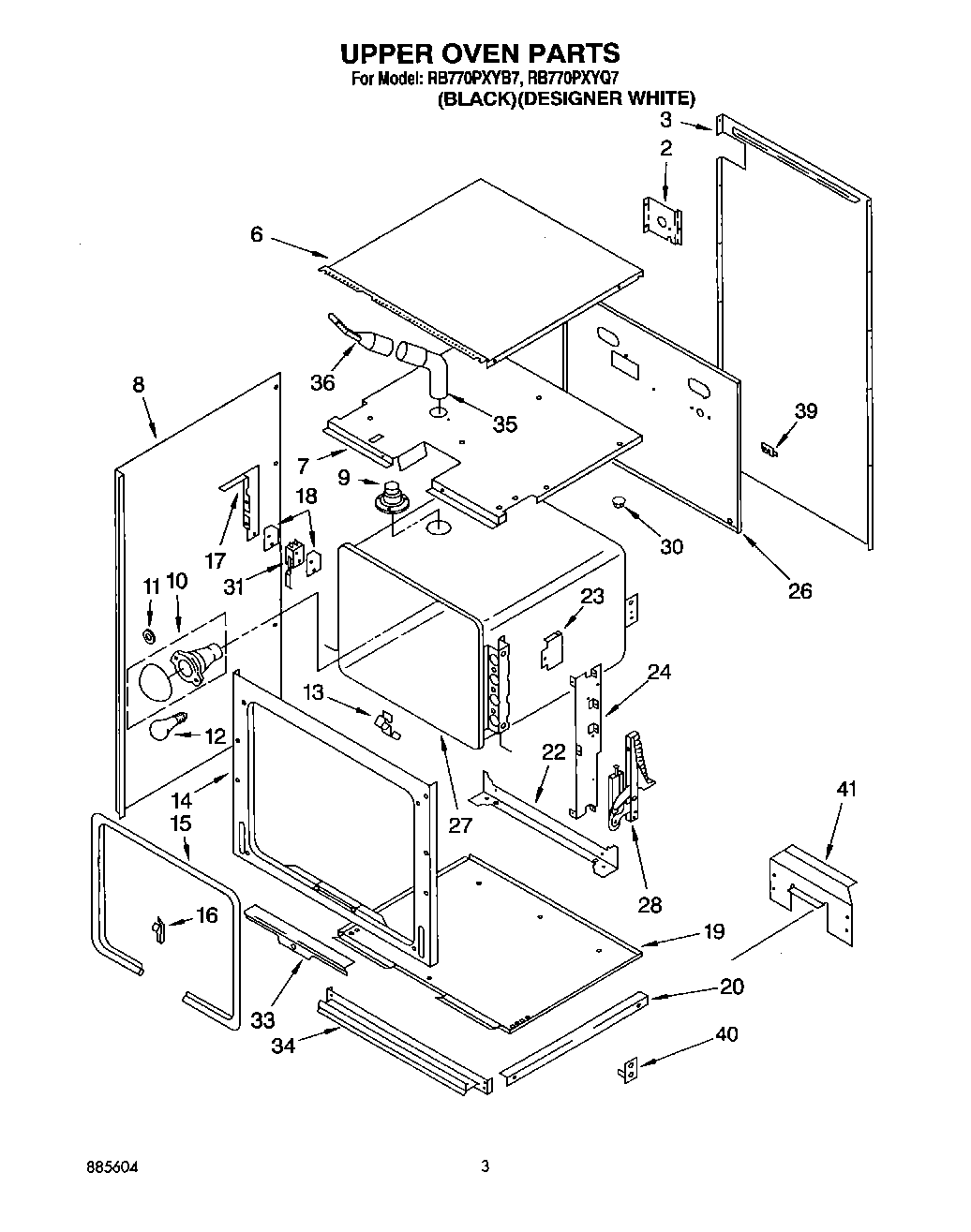

RB770PXYQ7 02 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (2)
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
26	Back, Module
27	Liner, Oven
28	Screw (6)
28	Hinge, Door
30	Button, Plug
31	Screw (2)
31	Switch, Door
31	Nut (2)
33	Retainer, Seal
34	Vent, Middle Trim (Brushed Chrome)
34	Vent, Middle Trim (Black)
35	Vent, Tube (Upper, Female)
36	Tube, Vent (Male)
36	Screw
39	Cover, Cap Tube
39	Screw
40	Insert, Middle Vent Trim
40	Screw
40	Vent, Lower Trim (Screw (4))
40	Insert, Middle Trim
41	WPL 3183752
41	Insulation, Back
41	WP3177991 Whirlpool Screw
41	Insulation, Oven
