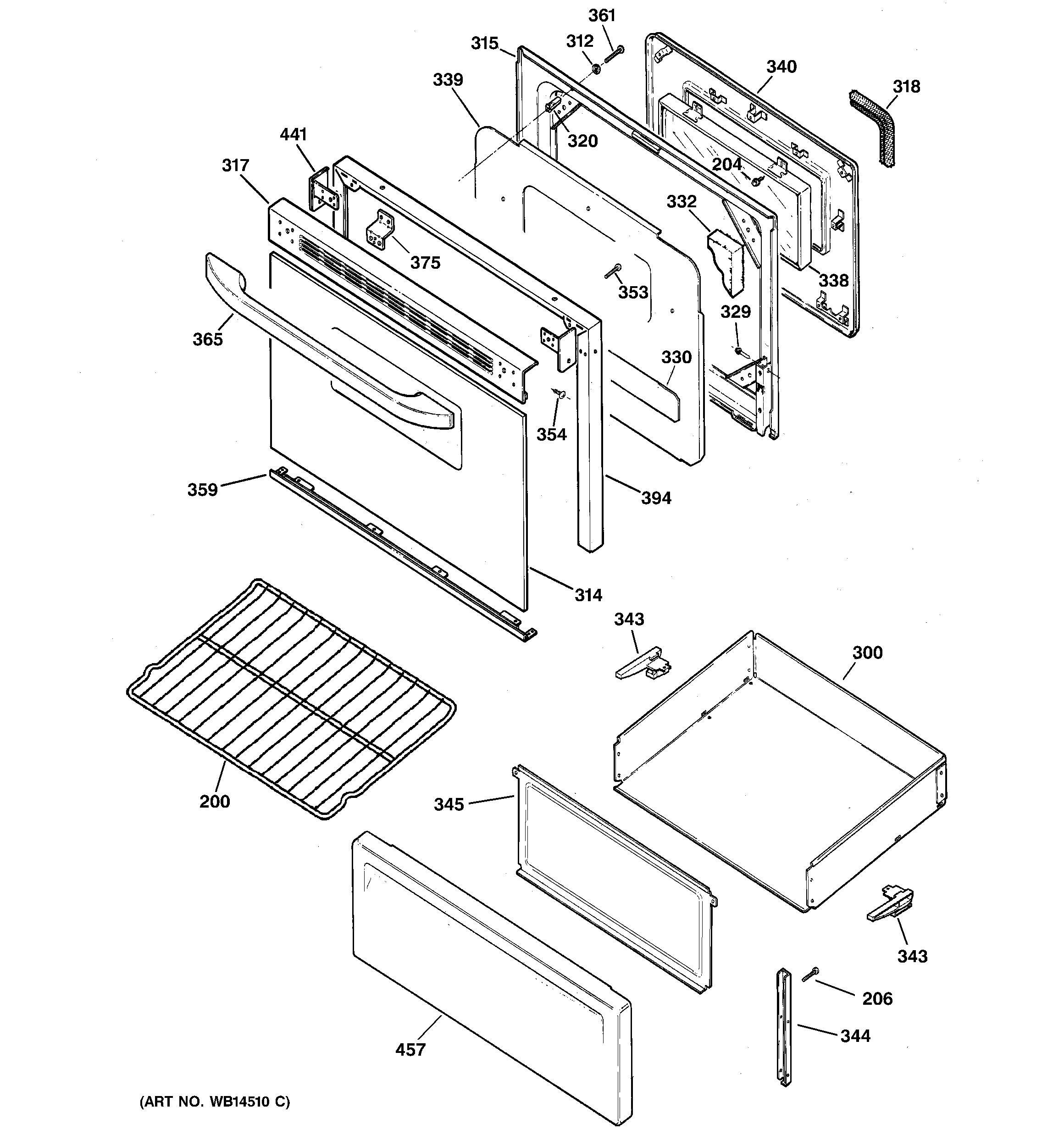

RB787BH5BB DOOR & DRAWER PARTS

RB787BH5BB DOOR & DRAWER PARTS

Written by

in

RB787BH5BB DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
204WB1K5062 GE Oven Screw
204WB1X536 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WR01X10065 GE Screw
300GEN WB58K10004
312WB1X119D GE Oven Range Washer
314GEN WB57K0002
314GEN WB57K10062
314WB57K3 GE Oven Outer Door Glass White
315GEN WB55K10042
317WB07K10192 GE Oven Vent Door Trim Assembly
317WB35K10041 GE Oven Reflector
317WB07K10200 GE Oven Vent Trim Assembly
317WB07K10191 GE Oven Vent Trim Door (White)
318WB35X29722 GE Oven Door Gasket Assembly
320GEN WB02K10162
329WB1X558D GE Oven Screw Package
330GEN WB35K0022
332GEN WB35K10105
338GEN WB34K10088
338WB56K5 GE Oven Crystal Wind
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344GEN WB02K10025
345WB34K10034 GE Oven Drawer Cover
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
354WB1K66 GE Screw
354WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
359TRIM BOTTOM ASM
359WB07K10232 GE Oven Bottom Trim Assembly
359WB07K10269 GE Oven Bottom Trim Assembly
361WB1X5731D GE Oven Nut Package of 12
365HANDLE DOOR (BSQT)
365WB15X10047 GE Range Oven Black Door Handle
365WB15X10048 GE Oven Door Handle White
375WB02K10245 GE Oven Door Bracket
394GEN WB07K0268
394GEN WB07K0265
394GEN WB07K10165
441END CAP DOOR LT (BISQUE)
441WB7K264 GE Oven Door Endcap
441WB7K263 GE Oven Door Endcap
441WB7K266 GE Oven Door End Cap
441END CAP DOOR RT (BISQUE)
457WB56X31457 GE Drawer Panel Bisque
457WB56X31458 GE Black Drawer Panel
457WB56X31459 GE Oven Drawer Front
