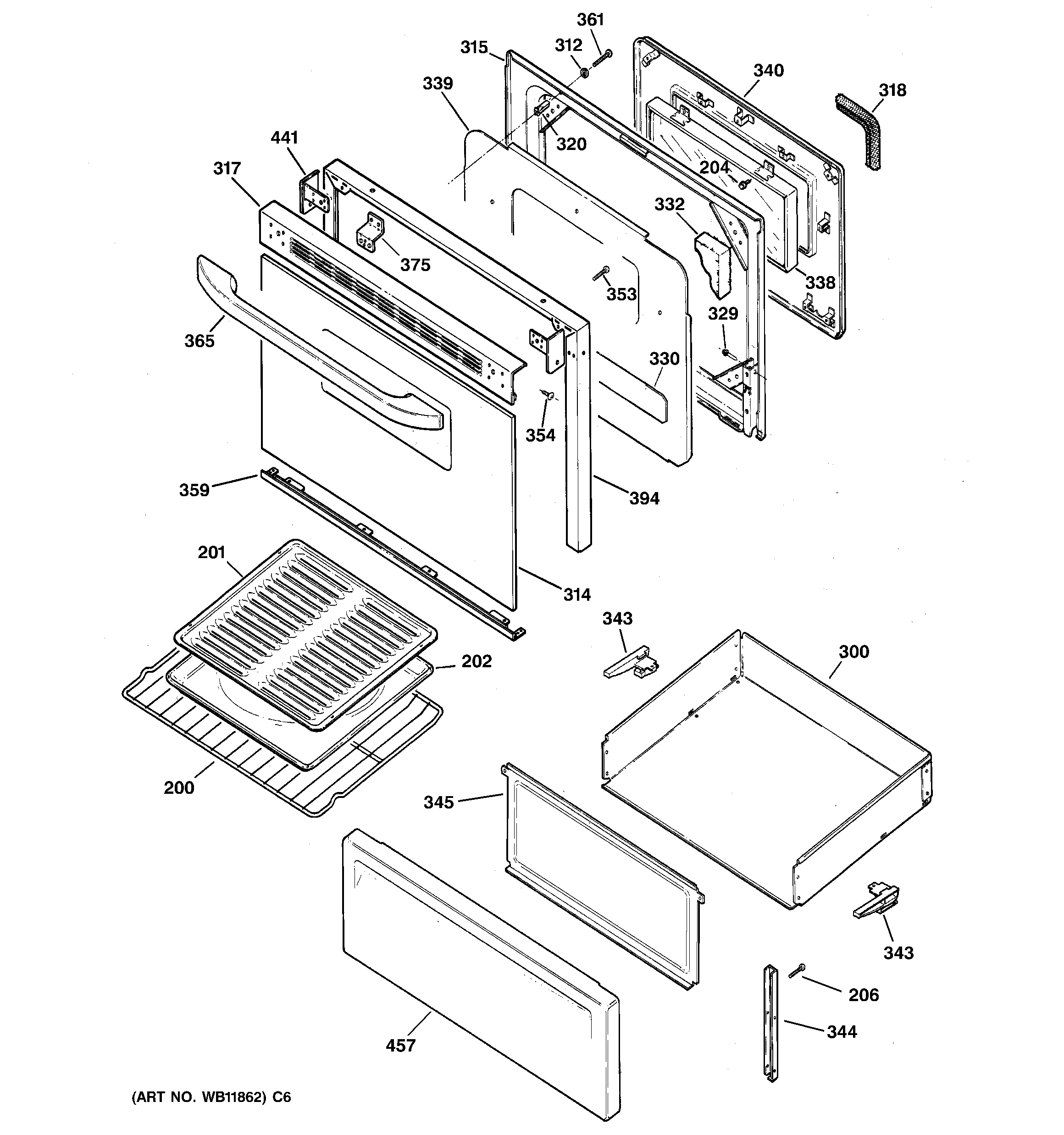

RB787CH3CC DOOR & DRAWER PARTS

RB787CH3CC DOOR & DRAWER PARTS

Written by

in

RB787CH3CC DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
202WB48X10056 GE Broil Pan Set, Large Porcelain
204WB1X536 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
204WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
204WB1K5062 GE Oven Screw
206WR01X10065 GE Screw
300GEN WB58K10004
312WB1X119D GE Oven Range Washer
314GEN WB57K10062
315GEN WB55K0025
317WB07K10192 GE Oven Vent Door Trim Assembly
318WB4K1 GE Oven Gasket Door
320WB2K14 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330GEN WB35K0033
332GEN WB35K0020
338GEN WB56K0019
338WB56K5 GE Oven Crystal Wind
339GUARD INSULATION
340GEN WB55K0020
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344GEN WB02K10025
345WB34K10034 GE Oven Drawer Cover
353WB01K10012 GE Oven Screw 8-22 PL 1HX
353WB1K67 GE Oven Screw 8-22
354WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
359WB07K10269 GE Oven Bottom Trim Assembly
361WB1X5731D GE Oven Nut Package of 12
365HANDLE DOOR (BSQT)
375WB02K10245 GE Oven Door Bracket
394GEN WB07K10165
441END CAP DOOR LT (BISQUE)
441END CAP DOOR RT (BISQUE)
457WB56X31457 GE Drawer Panel Bisque
