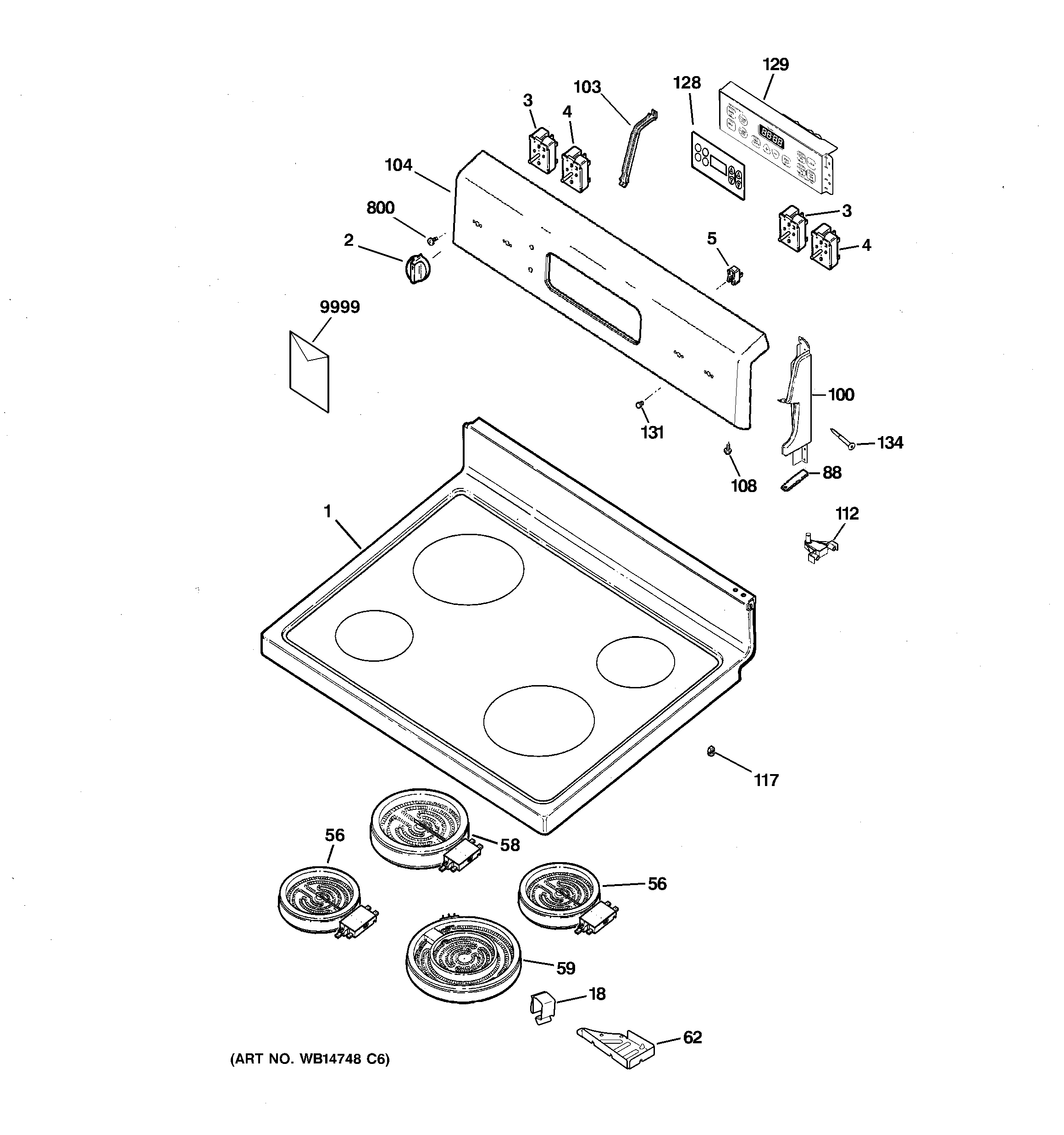

RB787DP3WW CONTROL PANEL & COOKTOP

RB787DP3WW CONTROL PANEL & COOKTOP

Written by

in

RB787DP3WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB57K10143 GE Range Glass Top Assembly
2WB03T10076 GE Oven Knob
3WB24T10029 GE Oven Infinite Burner Switch
4WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
18WB09T10002 GE Oven Radiant Spring
56WB30X38928 GE Surface 6" Radiant Element
58WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
62WB02T10041 GE Oven Radiant Element Bracket
88GEN WB02K0062
100WB07K10209 GE Oven End Support
100END SUPPORT LF
103WB02K10077 GE Control Bracket
104GEN WB36K10857
108WB1X5364 GE Oven Mounting Screw
112WB14K10003 GE Range Top Hinge
117GEN WB02K0017
128WB27K10170 GE Oven Overlay T09-B HP
129CONTROL OVEN TO9 (ELEC)
131WB25T10041 GE Oven Lens
134GEN WB01X5874
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999GEN 31-10781
9999GEN 31-10831
9999WB49X21392 GE Oven Hinge Service Kit
9999GEN 49-88056-1
9999PM10X310 GE Cerama Bryte Cooktop Cleaner
9999GEN 31-14942
