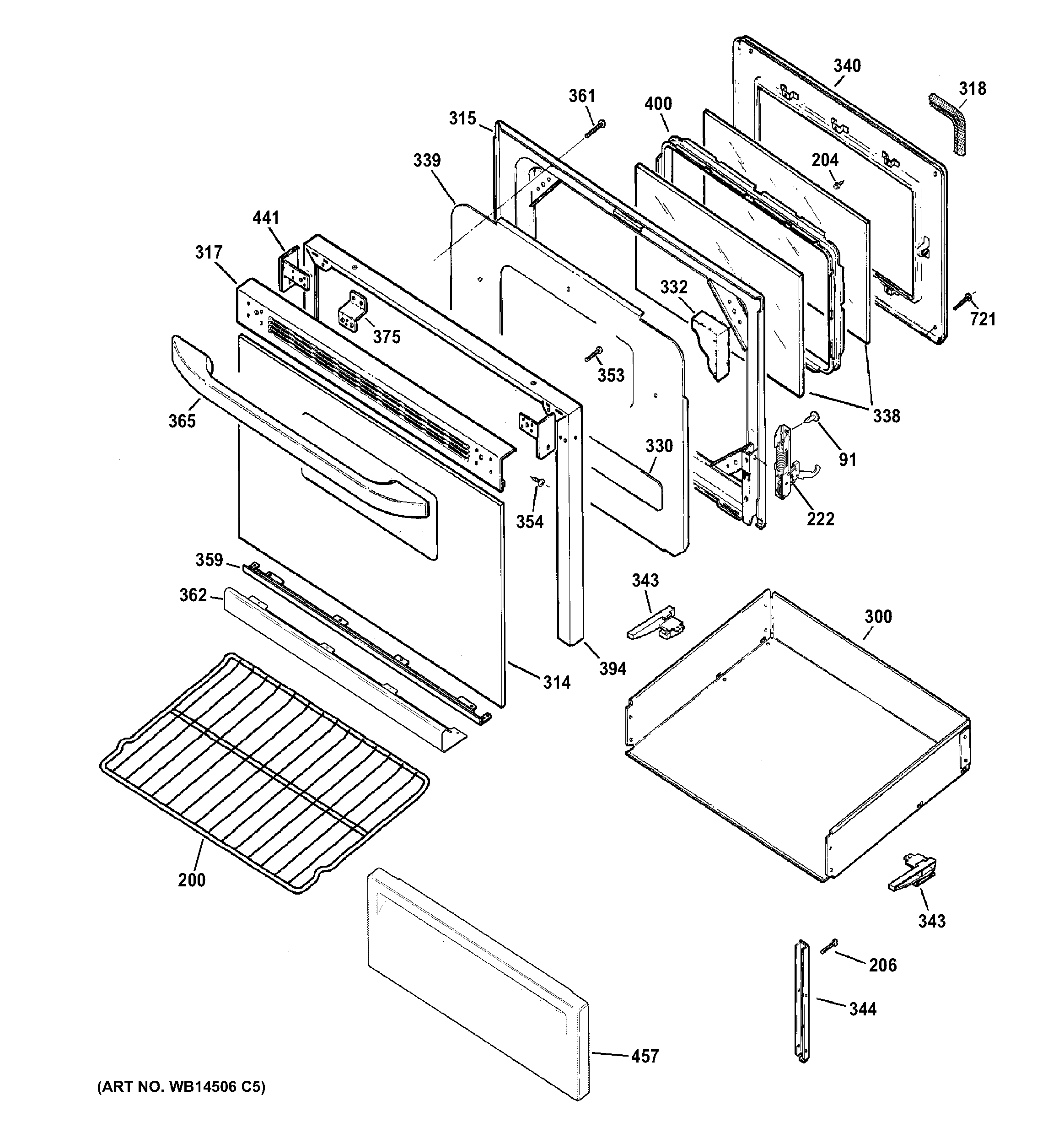

RB787DP3WW DOOR & DRAWER PARTS

RB787DP3WW DOOR & DRAWER PARTS

Written by

in

RB787DP3WW DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
222WB10X21981 GE Range Door Hinge
300GEN WB58K10011
314WB57K3 GE Oven Outer Door Glass White
315WB56X21344 GE Door Weld Liner
317WB07K10191 GE Oven Vent Trim Door (White)
318WB35X29722 GE Oven Door Gasket Assembly
330GEN WB35K0022
332GEN WB35K10105
338WB56K5 GE Oven Crystal Wind
338GEN WB56K0019
339GUARD INSULATION
340GEN WB55K0020
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344GEN WB02K10025
353WB1K67 GE Oven Screw 8-22
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K66 GE Screw
359TRIM BOTTOM ASM
361GEN WB01K0065
362GEN WB07K10342
365WB15X10048 GE Oven Door Handle White
375WB02K10245 GE Oven Door Bracket
394GEN WB07K10254
394GEN WB07K10253
400GEN WB34K10088
441WB7K266 GE Oven Door End Cap
457WB56X31459 GE Oven Drawer Front
721WB1X536 GE Oven Screw
