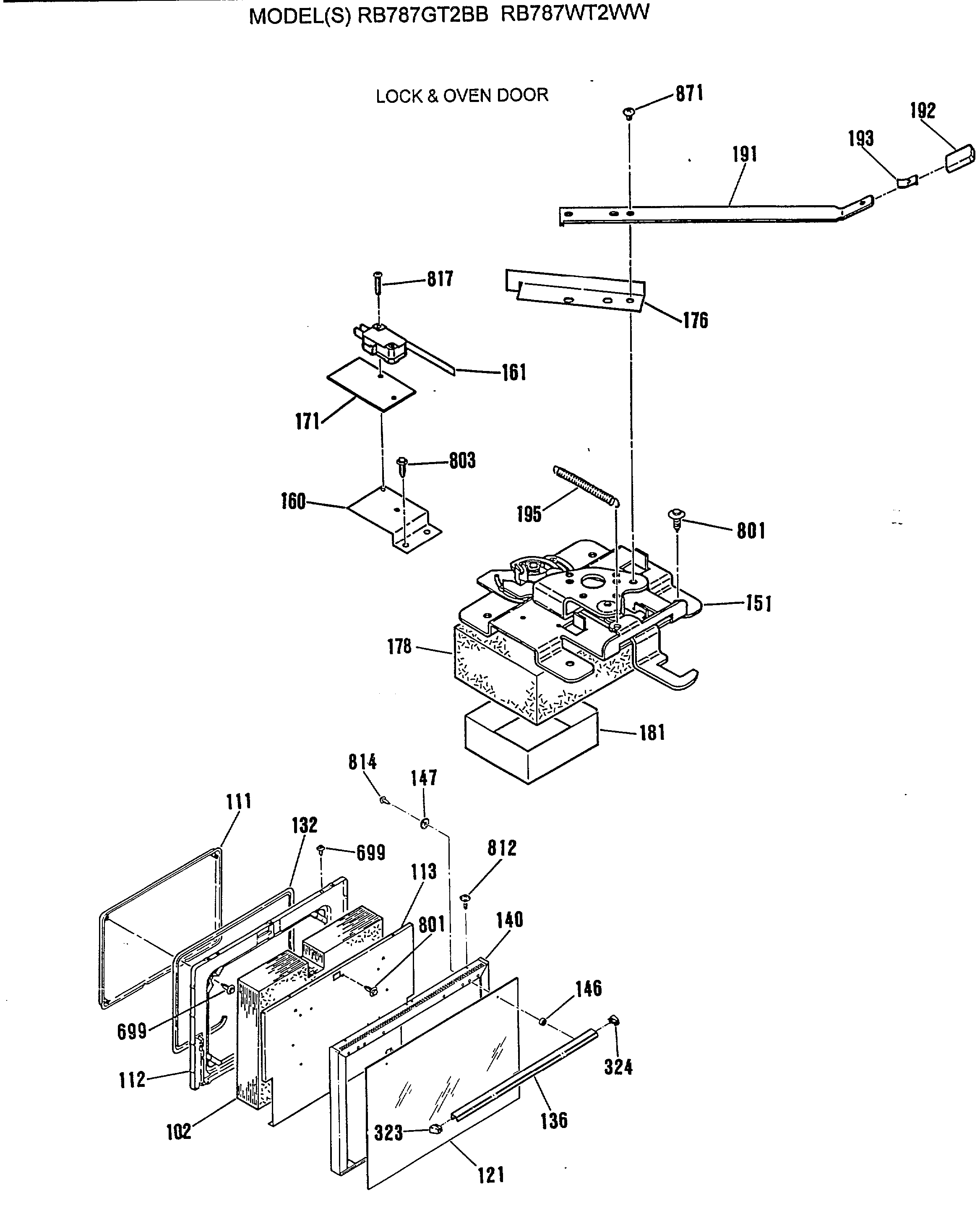

RB787GT2BB LOCK & OVEN DOOR

RB787GT2BB LOCK & OVEN DOOR

Written by

in

RB787GT2BB LOCK & OVEN DOOR

Products

PositionProduct
102OVEN DOOR INSULATION
111GEN WB55K5036
112GEN WB55K5038
113GEN WB02K5315
121GEN WB57K5213
132WB2K5319 GE Oven Door Gasket
136WB15X10225 GE Range Handle
140GEN WB56K5144
146DOOR HANDLE SPACER-BLACK
147GEN WB02K5312
151GEN WB14X0128
160GEN WB02X9882
161GEN WB24K5092
171INSULATOR-MICRO SWITCH
176GEN WB02X9881
178LOCK BOX INSULATION
181GEN WB02K5097
191LATCH HANDLE
192GEN WB03K5154
193KNOB CLIP
195LOCK SPRING
699WB1M1 GE Oven Screw
803WB1X1149 GE Oven Screw
812SCREW-BLACK
812WB1K5191 GE Oven Zinc FL Screw
814WB1X1258 GE Oven Screw
817GEN WB01X1346
871GEN WB01M0013
