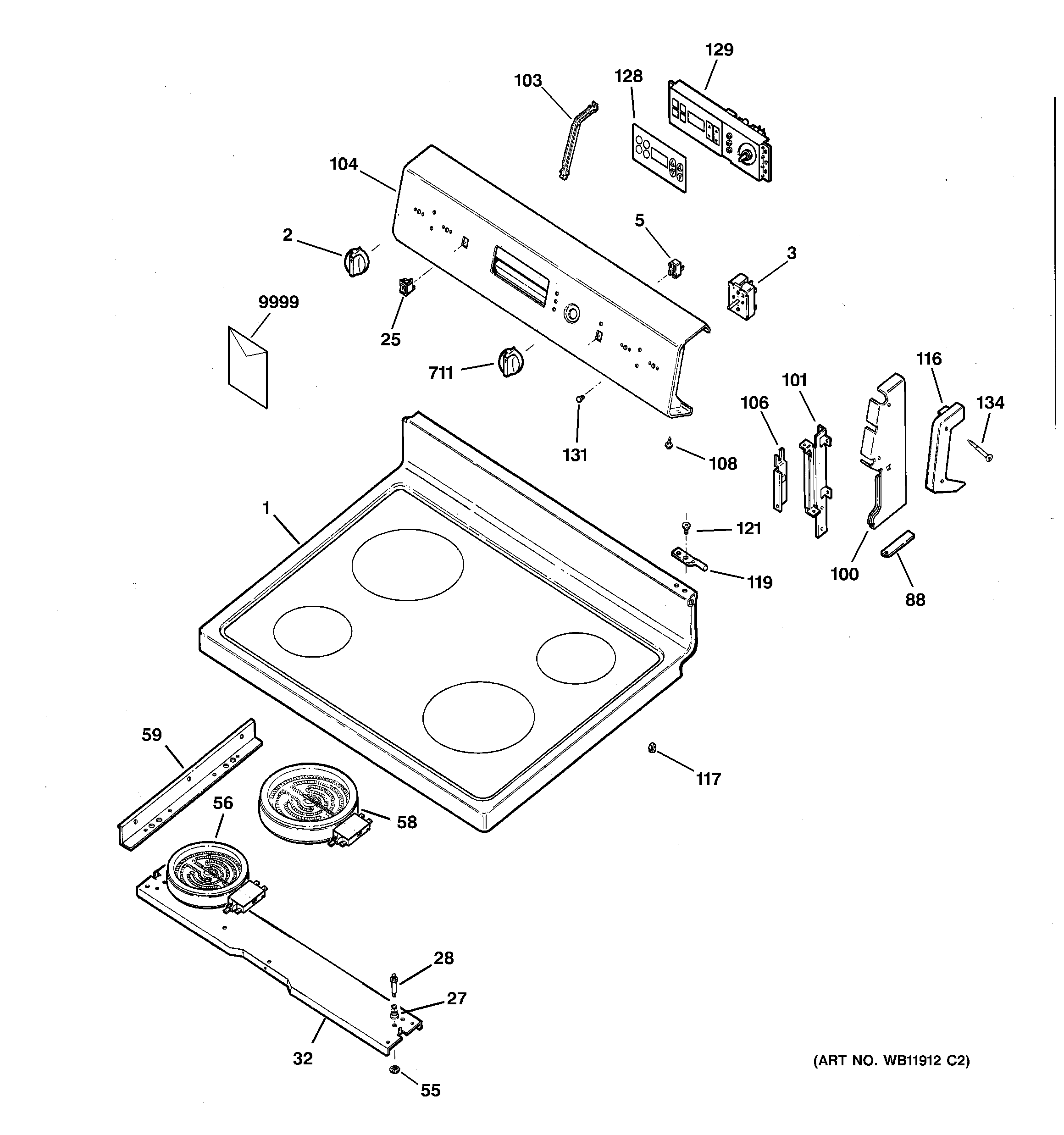

RB787WC3WW CONTROL PANEL & COOKTOP

RB787WC3WW CONTROL PANEL & COOKTOP

Written by

in

RB787WC3WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB57K10055
2GEN WB03K10086
3WB24T10029 GE Oven Infinite Burner Switch
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
25WB24K5022 GE Oven Rocker Switch
27GEN WB09X5119
28GEN WB02X8377
32WB02K10045 GE Bottom Heater Support
55GEN WB02X8323
56WB30X44826 GE 6 Inch Heating Element Kit
58WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
59WB02K10046 GE Oven Side Heater Brace
88GEN WB02K0062
100GEN WB07K10002
100GEN WB07K10001
101GEN WB37K0017
101GEN WB37K0018
103GEN WB02K10027
104GEN WB36K10231
106GEN WB10K10001
106GEN WB10K10002
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5874
116WB07K10005 GE Oven Right Endcap
116WB07K10007 GE Oven Endcap Left
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB27K10016
129CONTROL T08
131WB25T10041 GE Oven Lens
134GEN WB01K10004
711GEN WB03K10087
9999GEN 49-88005
9999PM10X310 GE Cerama Bryte Cooktop Cleaner
9999GEN 49-88006
9999GEN 31-21001
