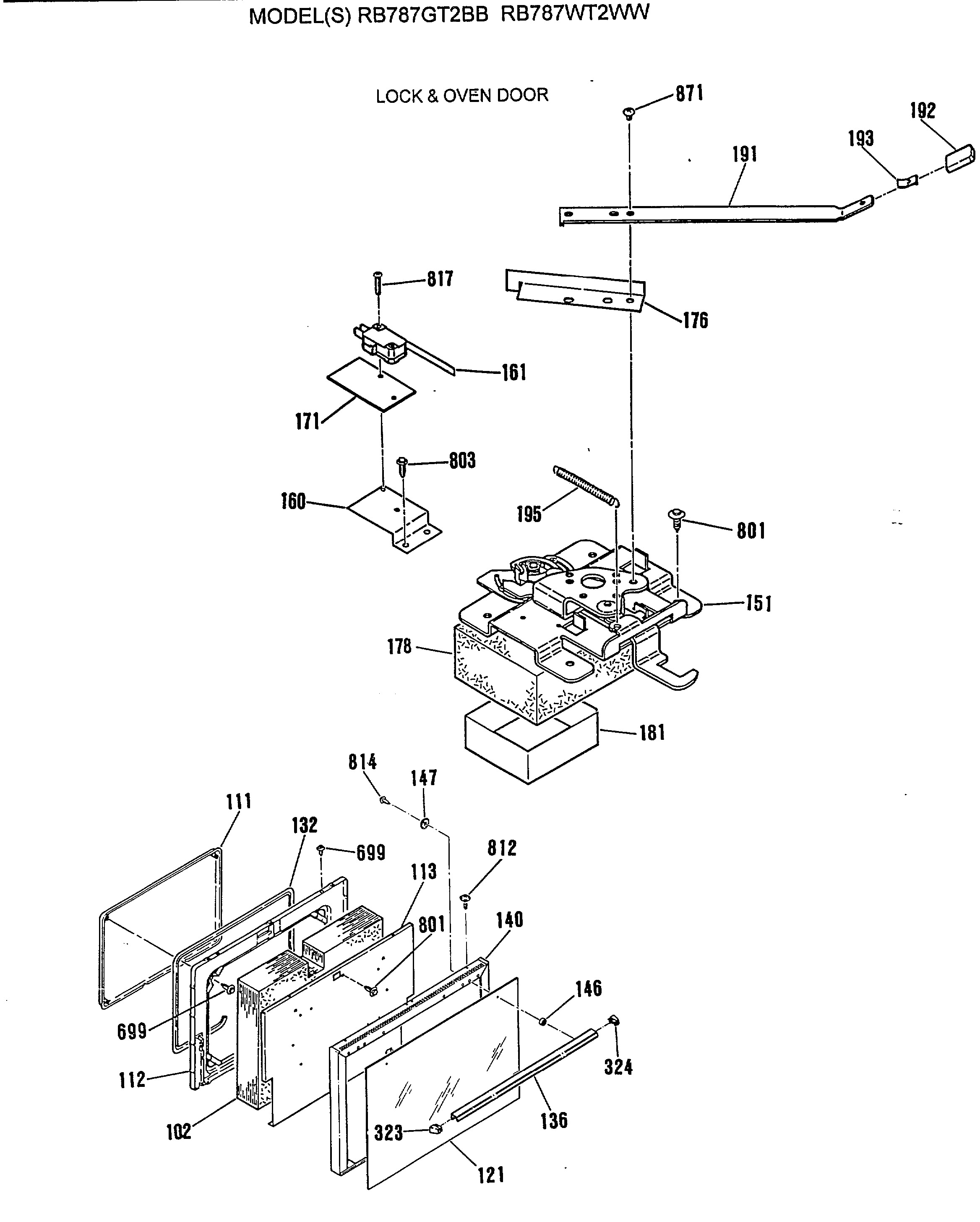

RB787WT2WW LOCK & OVEN DOOR

RB787WT2WW LOCK & OVEN DOOR

Written by

in

RB787WT2WW LOCK & OVEN DOOR

Products

PositionProduct
102OVEN DOOR INSULATION
111GEN WB55K5036
112GEN WB55K5038
113GEN WB02K5315
121GEN WB57K5214
132WB2K5319 GE Oven Door Gasket
136GEN WB15K5090
140GEN WB56K5138
146UNKNOWN
147GEN WB02K5312
151GEN WB14X0128
160GEN WB02X9882
161GEN WB24K5092
171INSULATOR-MICRO SWITCH
176GEN WB02X9881
178LOCK BOX INSULATION
181GEN WB02K5097
191LATCH HANDLE
192GEN WB03K5152
193KNOB CLIP
195LOCK SPRING
699WB1M1 GE Oven Screw
803WB1X1149 GE Oven Screw
812WB1K5191 GE Oven Zinc FL Screw
814WB1X1258 GE Oven Screw
817GEN WB01X1346
871GEN WB01M0013
