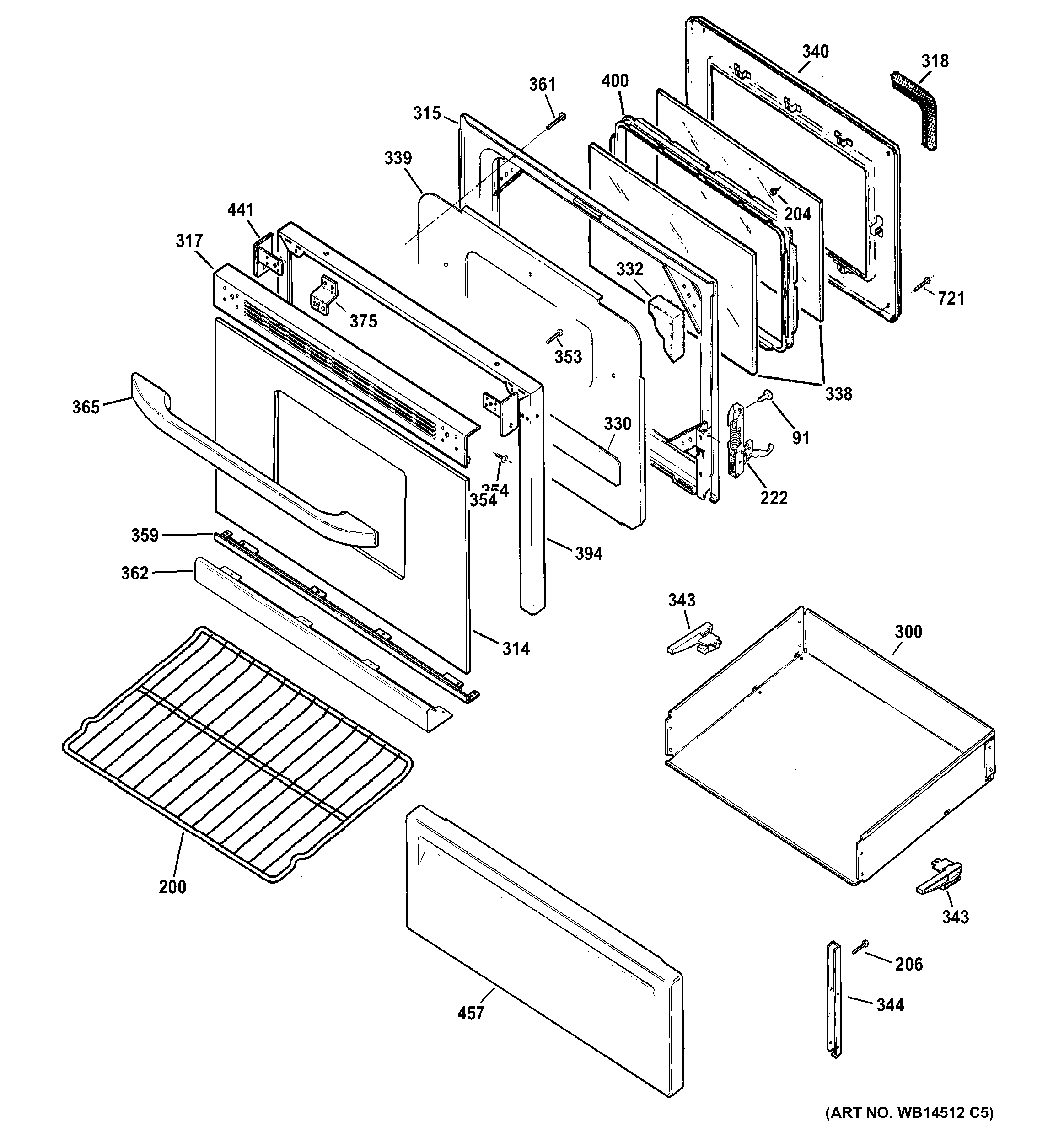

RB790DT3BB DOOR & DRAWER PARTS

RB790DT3BB DOOR & DRAWER PARTS

Written by

in

RB790DT3BB DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
206WB01K10091 GE Oven Screw
222WB10X21982 GE Oven Door Hinge
300GEN WB58K10011
314WB57K4 GE Oven Black Glass Door
315WB56X21344 GE Door Weld Liner
317WB07K10200 GE Oven Vent Trim Assembly
318WB35X29722 GE Oven Door Gasket Assembly
330GEN WB35K0022
332GEN WB35K10102
332GEN WB35K10101
338CRYSTAL WINDOW
339WB56K12 GE Oven Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB02K10061 GE Oven Drawer Glide
343WB02K10062 GE Oven Drawer Glide
344GEN WB02K10025
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
359WB07K10232 GE Oven Bottom Trim Assembly
361GEN WB01K0065
362WB07X20288 GE Oven Barrier Door
365WB15X10047 GE Range Oven Black Door Handle
375WB02K10245 GE Oven Door Bracket
394GEN WB07K10249
394WB07K10248 GE Oven Trim Post Left
400WB34K10087 GE Oven Window Spacer Assembly
441WB7K264 GE Oven Door Endcap
441WB7K263 GE Oven Door Endcap
457WB56X31458 GE Black Drawer Panel
721WB1X536 GE Oven Screw
