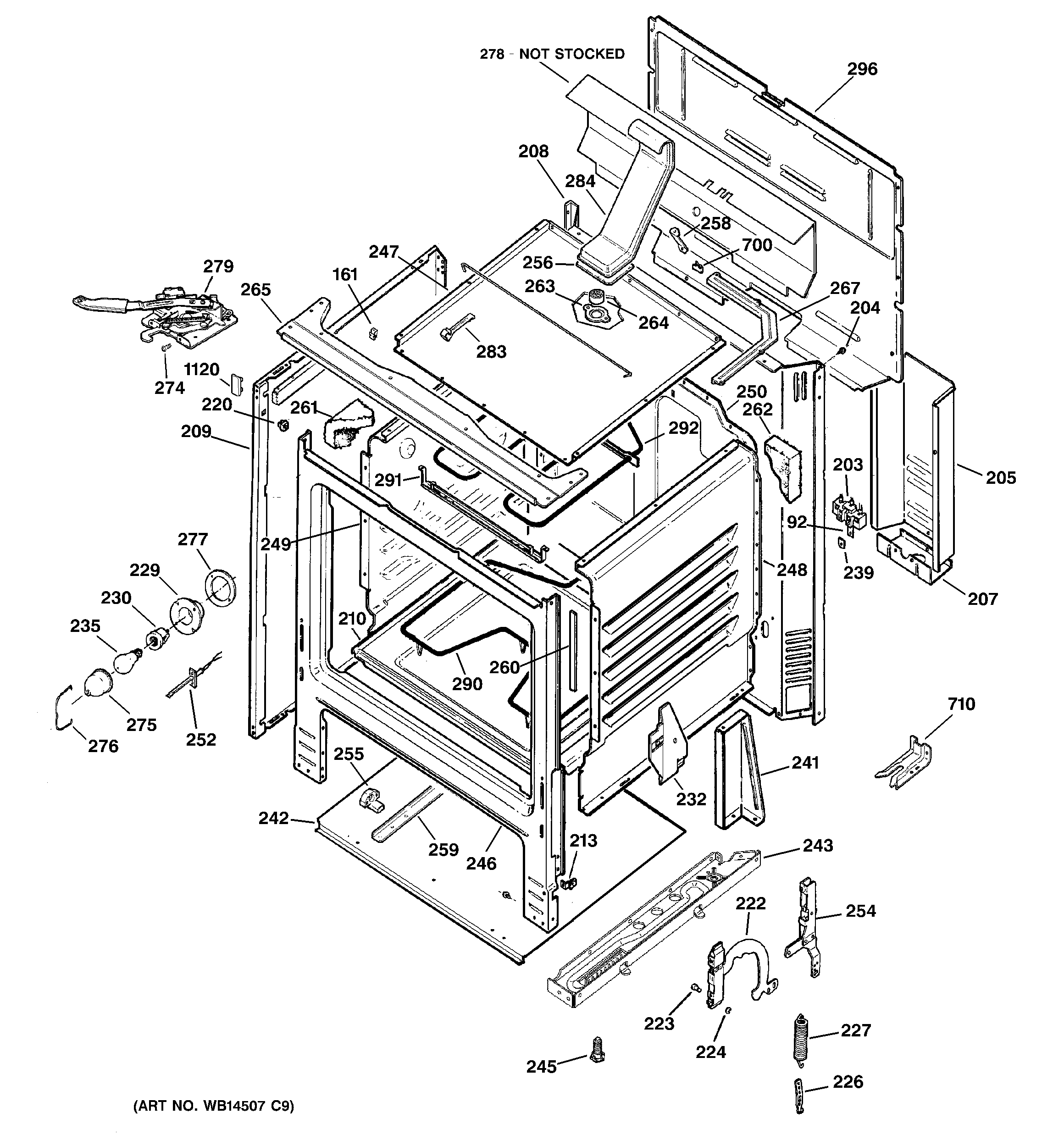

RB790SR2SA BODY PARTS

RB790SR2SA BODY PARTS

Written by

in

RB790SR2SA BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
161GEN WB02K0022
203WB17T10011 GE Oven Terminal Block
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
205WB34K10029 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB63K10005
209WB63K10141 GE Side Panel
210WB63K10105 GE Range Oven Bottom
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB09K10001
227GEN WB09K0005
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
232GEN WB34K0004
232GEN WB34K0003
235RANGE ONLY 40W 120V APPL BULB
239PLATE GROUND
241SUPPORT CONTROL
242GUARD INSULATION BOTTOM
243SUPPORT BASE LEFT
243WB63K10256 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10271
247WB63K10023 GE Oven Top
248WB63K10244 GE Oven Right Side Rack
249WB63K10245 GE Oven Left Side Ran
250GEN WB53K10029
254SUPPORT ASM RIVET RT
254GEN WB01K0053
254SUPPORT ASM RIVET LF
255WB02K10158 GE Oven Drawer Support
256WB35K10019 GE Vent Gasket
258WB02K10040 GE Oven Vent Bracket
259WB39K16 GE Oven Drawer Rail
260WB32K2 GE Oven Gasket Seal
261WB35K10103 GE Oven Insulation Wrap
262WB35K10104 GE Oven Back Insulation
263WB02K10039 GE Vent Ring
264WB35K10028 GE Oven Catalyst Support
265GEN WB34K10119
267WB02K10038 GE Corner Brace
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
279WB02K10144 GE Oven Door Latch Assembly
284GEN WB38K10023
290WB44K10031 GE Oven Bake Unit
292GEN WB44K10032
296WB34K10120 GE Back Cover
700RETAINER-INSULATION
710GEN WB02K10386
1120WB02K10178 GE Oven Bumper
